30CTQ050

Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon, TO-220AB,
CategoryDiscrete semiconductor    diode
File Size130KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Environmental Compliance
Download Datasheet Parametric Compare View All

30CTQ050 Online Shopping

Suppliers Part Number Price MOQ In stock
30CTQ050 - - View Buy Now

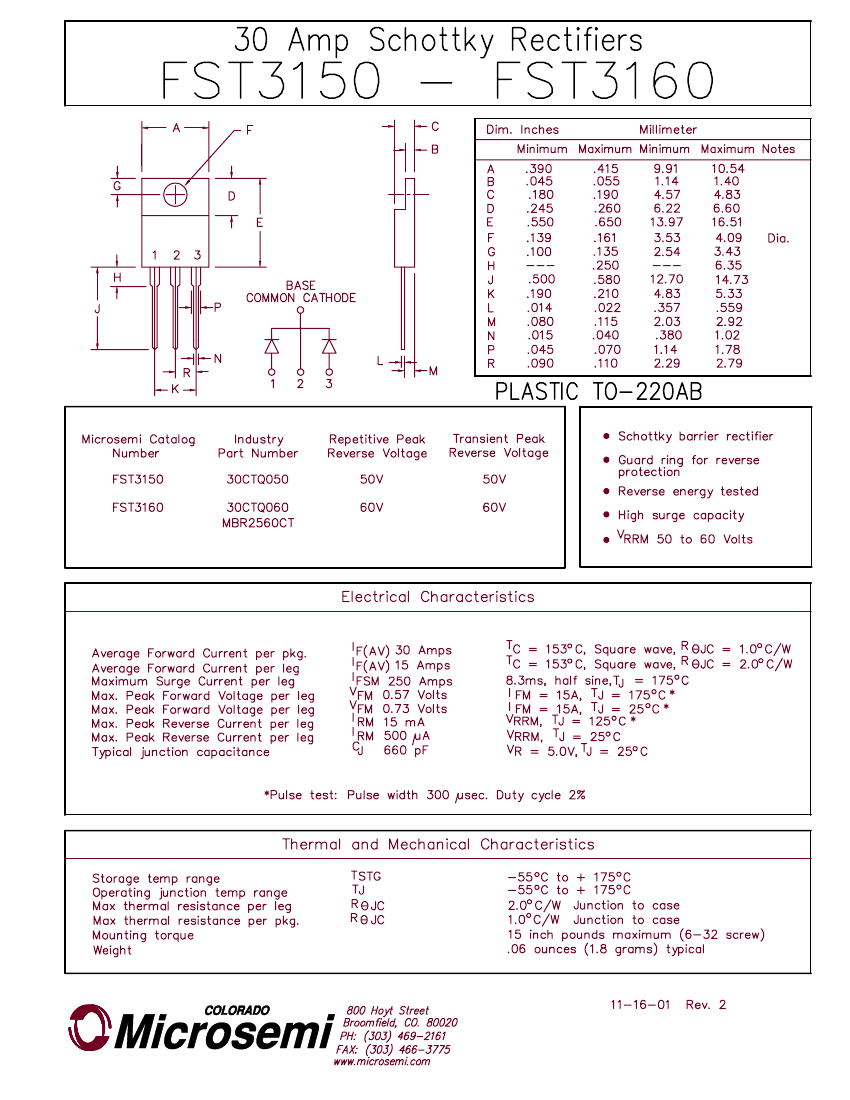

30CTQ050 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon, TO-220AB,

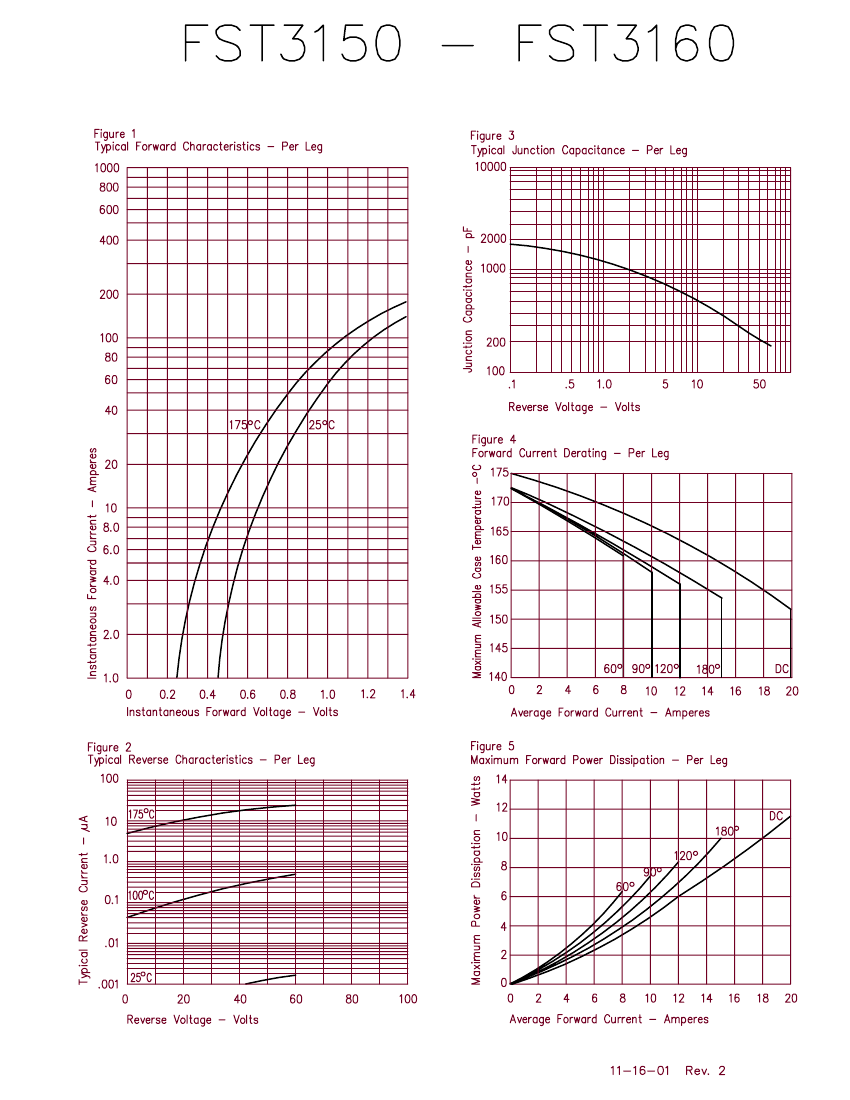

30CTQ050 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionR-PSFM-T3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresREVERSE ENERGY TESTED
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Maximum non-repetitive peak forward current250 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Maximum output current15 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
surface mountNO
technologySCHOTTKY
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

30CTQ050 Related Products

30CTQ050 30CTQ060
Description Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 50V V(RRM), Silicon, TO-220AB, Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 60V V(RRM), Silicon, TO-220AB,
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
package instruction R-PSFM-T3 R-PSFM-T3
Reach Compliance Code compliant compli
ECCN code EAR99 EAR99
Other features REVERSE ENERGY TESTED REVERSE ENERGY TESTED
application GENERAL PURPOSE GENERAL PURPOSE
Shell connection CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS COMMON CATHODE, 2 ELEMENTS
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
JEDEC-95 code TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3
Maximum non-repetitive peak forward current 250 A 250 A
Number of components 2 2
Phase 1 1
Number of terminals 3 3
Maximum operating temperature 175 °C 175 °C
Minimum operating temperature -55 °C -55 °C
Maximum output current 15 A 15 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 50 V 60 V
surface mount NO NO
technology SCHOTTKY SCHOTTKY
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
