10129378-925002T datasheet, PDF

10129378-925002T: DescriptionBoard Connector; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10129378-925002T Overview

Board Connector

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	CSA, UL
UL Flammability Code	94V-0
Objectid	1973261456
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
YTEOL	8
body width	0.095 inch
subject depth	0.1 inch
body length	2.5 inch
Terminal length	0.09 inch
Total number of contacts	25
Contact resistance	20 mΩ
Durability	50 Cycles
insulator material	HIGH TEMPERATURE THERMOPLASTIC
Installation method	STRAIGHT
Terminal pitch	2.54 mm
Rated current (signal)	3 A
Connector type	BOARD STACKING CONNECTOR
Contact point gender	MALE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Plating thickness	39u inch
Termination type	SOLDER
contact mode	RECTANGULAR
Insulator color	BLACK
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Contact style	SQ PIN-SKT
Number of connectors	ONE
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
maximum insertion force	2.5 N
Insulation resistance	1000000000 Ω
Evacuation force-minimum value	0.3 N
Dielectric withstand voltage	1500VAC V
Filter function	NO

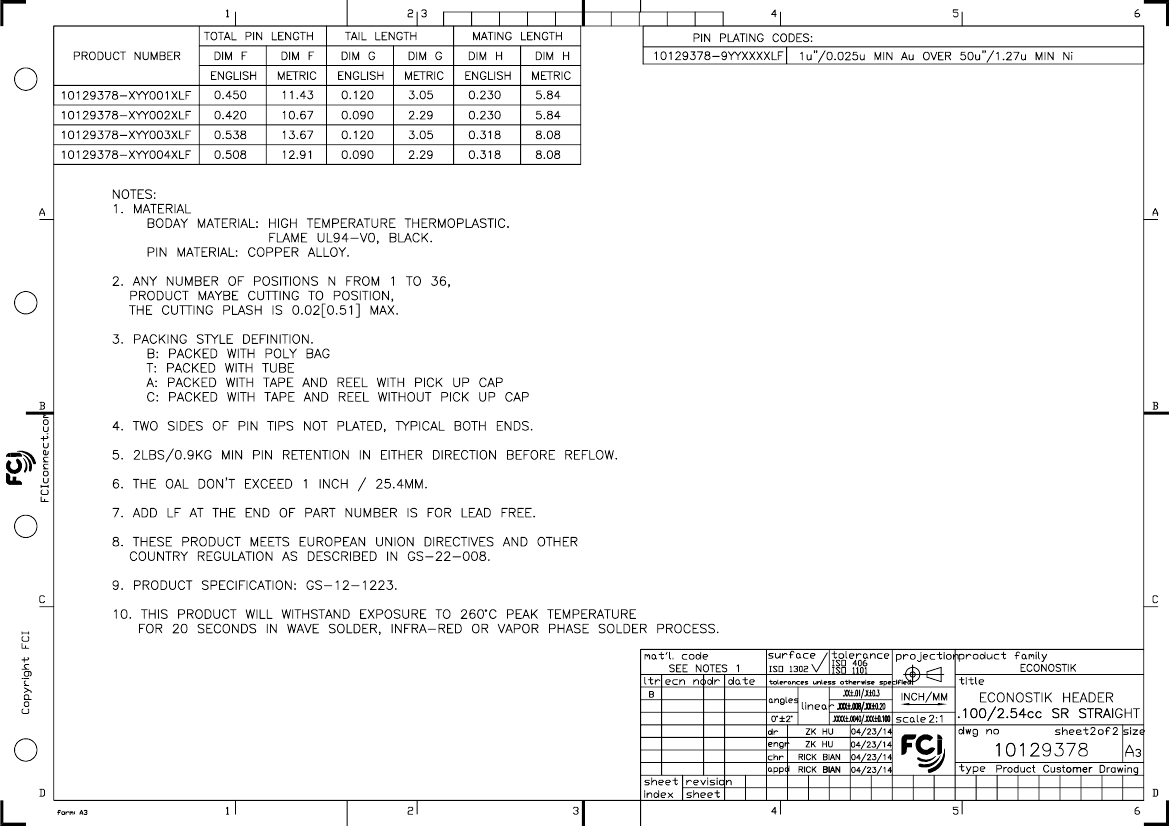

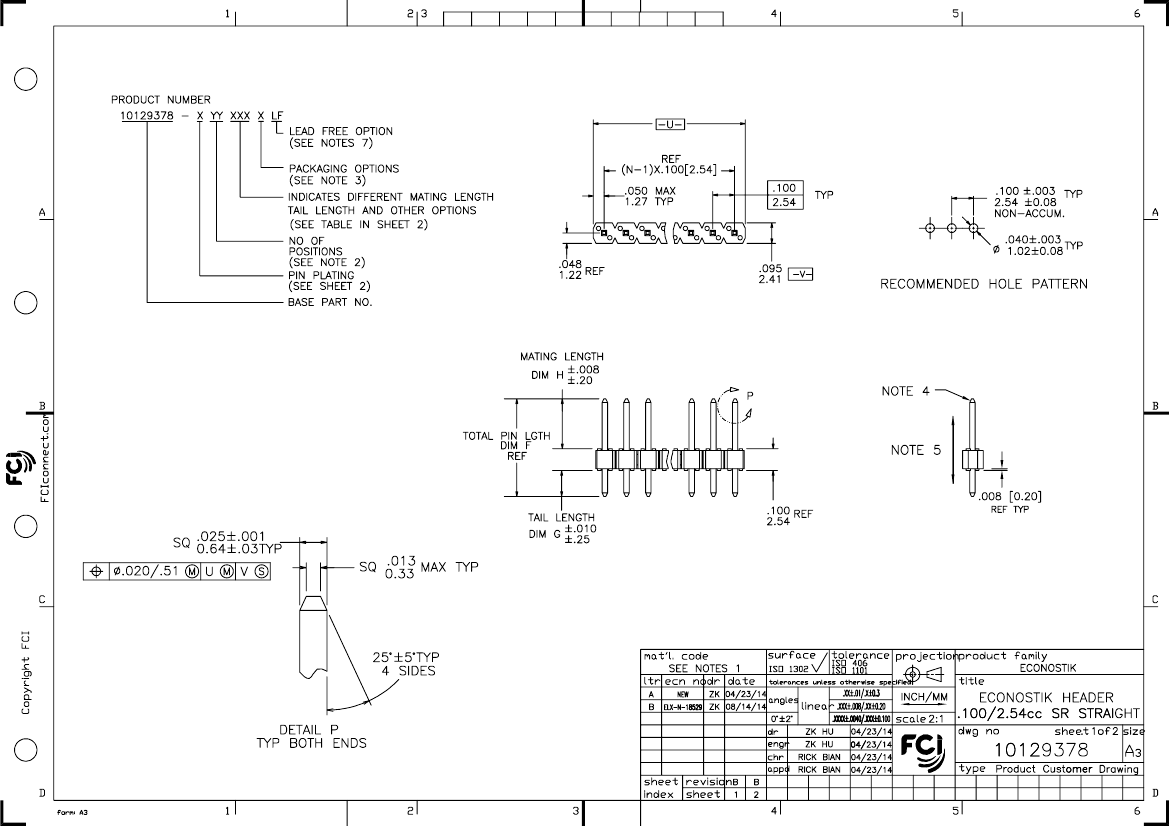

PDS: Rev :B

STATUS:Released

Printed: Aug 14, 2014
