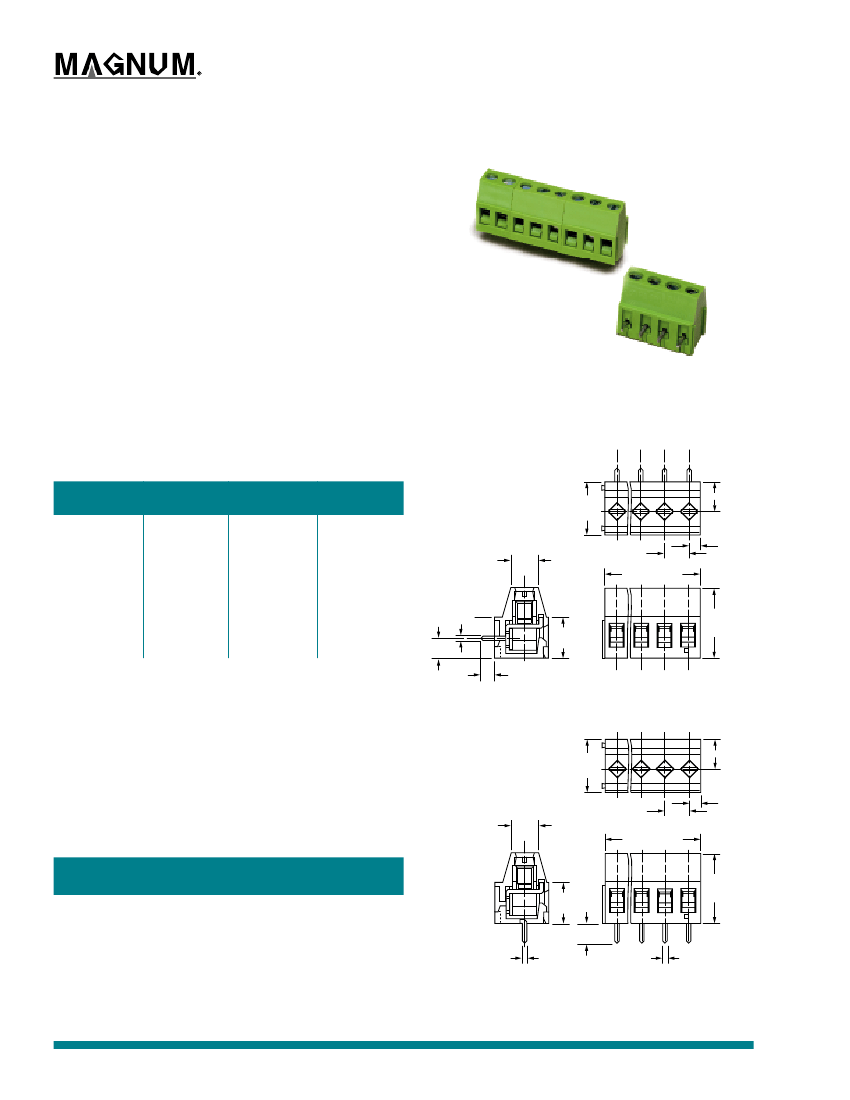

EM2505 Series
Euro-Mag Terminal Blocks
Stackable, 5.08 Centers
SPECIFICATIONS
Rating: 15A, 300V
Center Spacing: .200” (5.08 mm)
Consult factory for .300” (7.62 mm) and .400” (10.16 mm)
Wire Size: #12-22 AWG
Housing Material: Green Polyamide Type 6/6, 94VO
Contact Material: Brass Tin Plated
Screw Size: M 3x5 Zinc Plated Steel
Operating Temperature: 105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating: 4.5 in-lb. max.
Recommended PCB Hole Diameters: .055” (1.40)
Construction: Modular design features dove-tails for
interlocking to achieve longer lengths.
Approvals: UL E62622; CSA LR701941; CE Certified
TABLE A
Position
02*
03*
04
05
06
07
08*
09
10
11
12
13
L (mm)
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
Position
14
15
16
17
18
19
20
21
22
23
24
L (mm)
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
.17
(4.2)
.44
(11.2)
.24
(6.1)
EM250508V
EM250504H
EM2505 Series
HORIZONTAL
.13
(3.3)
.20
(5.08)
"L"
(SEE TABLE A)
.10
(2.54)
.03
(0.8)
.35
(9.0)
.122
(3.09)
EM2505H
.59
(15.0)
* Mold To Length
To convert to inches, divide by 25.4
VERTICAL
.44
(11.2)
.24
(6.1)
.13
(3.3)
.20
(5.08)
"L"
(SEE TABLE A)
.10
(2.54)
Part Numbering System
Series
# of Positions
Orientation
.35
(9.0)
.59
(15.0)
E M 2 5 0 5
nnnnnn n n
02 to 24
n
H - horizontal
V - vertical
.031
(0.8)
.17
(4.2)
.035
(.09)
34
Cooper Bussmann
l
7300 W. Wilson Ave
l
Chicago, IL 60656-4708
l
Fax: 708-867-2211
l
Phone: 708-867-4600
Website: http://www.busscc.com
