SP8808
3.3GHz
÷
8 Fixed Modulus Divider
Advance Information
DS2113
Issue 7.2
june 1998
Features
q
q
q
q
q
q
q
q
Ordering Information
SP8808/A/DG Military temperature range
DES9157001/AC/DGAZ (SMD
)
Very High Speed Operation 3.3GHz
Silicon Technology for low Phase Noise
(Typically better than -140dBc/Hz at 10kHz)
Specified Over the Full Military Temperature
Range
Low Power Dissipation 345mW (typ)
5V Single Supply Operation
High Input Sensitivity
Very Wide Operating Frequency Range
Available as DESC SMD 5962-9157001MPA
Thermal Characteristics
θja
= 150°C/W
θjc
= 50°C/W
Description
The SP8808 is one of a range of very high speed low
power prescalers for professional and military
applications. The device features a complementary
output stage with on chip current source for the emitter
follower outputs.
Absolute Maximum Ratings
Supply voltage V
CC
Clock Input voltage
Storage temperature range
Junction temperature
6.5V
2.5V p-p
-65°C to +150°C
+175°C
SUPPLY
1
VCC
V
REF
(2V)
400
400
7
÷8
6
INPUT
INPUT
2
3
2.5mA
6.75mA
2mA
OUTPUT
OUTPUT
500
500
5
GND
Figure 2 SP8808 Block diagram
SP8808
Advance Information
INPUT
INPUT
NC
SP8808
VCC
1
2
3
4
8
7
6
5
NC
OUTPUT
OUTPUT
GND
DG8
Figure 1 Pin connections
Electrical Characteristics
Guaranteed over the temperature range T
amb
-55°C to +125°C (see note) and supply voltage range 4.75V
to 5.25V. Tested at T
amb
= -55°C and +110°C, V
CC
= 4.75V and 5.25V.
Characteristic
Supply current
Input sensitivity
0.65GHz to 2.8GHz
3.3GHz
Input impedance (series equivalent)
Pin Min
1
2, 3
Value
Typ
69
Max
85
175
400
Units
mA
mV
mV
Ω
pF
Conditions
V
CC
= 5V
RMS sinewave
measured in 50 ohm system.
See Figs. 3 & 4
Output Voltage with f
in
=1000MHz
Output Voltage with f
in
= 3GHz
NOTE: Devices must be used with a suitable heatsink to maintain chip temperature below 175°C when
operating at T
amb
>110°C.
500
400
VIN (mV RMS
INTO 50 OHMS)
300
200
100
2
,,
2, 3
50
2
0.8
6, 7
6, 7
1
0.4
Vp-p
Vp-p
V
CC
= 5V
V
CC
= 5V load as Fig. 4
*
GUARANTEED*
OPERATING
WINDOW
Tested as
specified in Table
of electrical
characteristics
1
2
3
4
FREQUENCY (GHz)

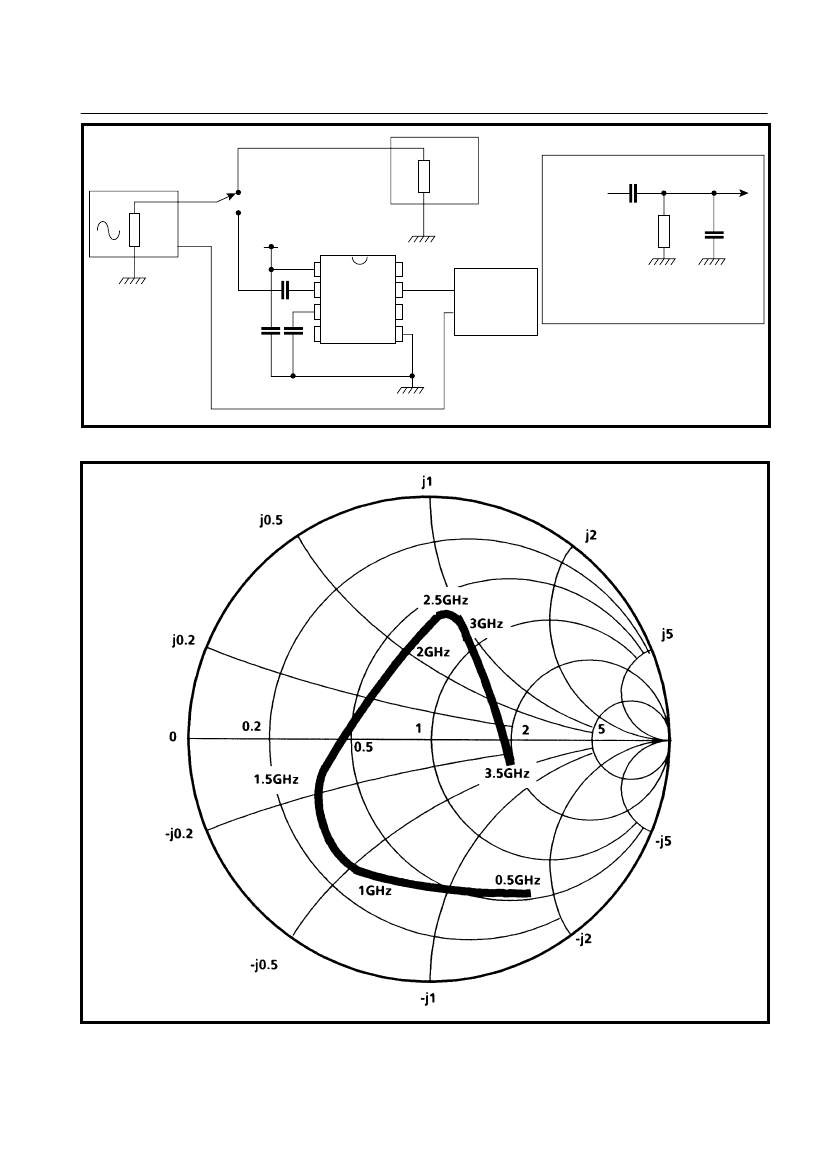

Figure 3 Typical input sensitivity
SP8808
Advance Information
