MKP 335 5 X2
Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
FEATURES
168x12(halfpage)
l
w
15 to 22.5 mm lead pitch. Supplied loose in box
and taped on reel
Lead (Pb)-free product
RoHS compliant product
h
PERMISSIBLE DC VOLTAGE
DC 630 V
lt
Ø dt
ENCAPSULATION
Plastic case, epoxy resin sealed, flame retardant UL-class
94 V-0
P 0.4
NO FOCUS PRODUCT:
USE MKP 339 X2
CLIMATIC TESTING CLASS ACC. TO EN 60068-1
APPLICATIONS
X2 class
For X2 electromagnetic interference suppression in across
the line applications (50/60 Hz) with a maximum mains
voltage of 275 VAC.
For application limitations please refer page 5.
55/100/56/B
CAPACITANCE RANGE (E12 SERIES)
E12 series 0.01 to 0.47 µF
Preferred values acc. to E6
REFERENCE STANDARDS
“IEC 60384-14 2nd edition and EN 132400”
“IEC 60065, pass. flamm. class B”
250 V: CSA-C22.2 No 1; UL1414
275 V: ENEC; CQC;
CAPACITANCE TOLERANCE
± 20 %; ± 10 %
LEADS
Tinned wire
MARKING
C-value; tolerance; rated voltage; sub-class; manufacturer’s
type designation; code for dielectric material; manufacturer
location; manufacturer’s emblem; year and week
RATED TEMPERATURE
100
°C
MAXIMUM APPLICATION TEMPERATURE
100
°C
DIELECTRIC
Polypropylene film
DETAIL SPECIFICATION
For more detailed data and test requirements, contact:
RFI@vishay.com
ELECTRODES
Metallized film
CONSTRUCTION
Mono construction
RATED VOLTAGE
AC 275 V; 50 to 60 Hz
Document Number: 28121
Revision: 15-Dec-08
For technical questions, contact: RFI@vishay.com
www.vishay.com
1
MKP 335 5 X2
Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type
COMPOSITION OF CATALOG NUMBER
TYPE AND PITCHES
335 5
X2
15.0 mm
22.5 mm
CAPACITANCE
(numerically)
MULTIPLIER
(nF)
1
10
3
4
Example:
104
=
10 x 10
=
100 nF
2222*
BFC2
TYPE
335 5
Loose in box
X2
PACKAGING
335
335
5.
5.
XX X
XX X
* Old ordering code
LEAD CONFIGURATION
Lead length 3.5 ± 0.5 mm
Lead length 25.0 ± 2.0 mm
C-TOL
± 20 %
PREFERRED TYPES
BFC2 335 50...
BFC2 335 54...
ON REQUEST
Lead length 3.5 ± 0.5 mm
335 5
Loose in box
X2
Lead length 25.0 ± 2.0 mm
Lead length 5.0 ± 1.0 mm
± 10 %
± 20 %
± 10 %
± 10 %
BFC2 335 51...
BFC2 335 56...
BFC2 335 57...
BFC2 335 55...
SPECIFIC REFERENCE DATA MKP 335 5 275 Vac
DESCRIPTION
Tangent of loss angle:
C
≤
100 nF
100 nF
<
C
≤
470 nF
Rated voltage pulse slope (dU/dt)
R
at 385 Vdc
R between leads, for C
≤
0.33 µF at 100 V; 1 min
RC between leads, for C
>
0.33 µF at 100 V; 1 min
R between leads and case; 100 V; 1 min
Withstanding voltage DC (cut off current 10 mA); rise time 100 V/s
Withstanding voltage AC between leads and case
VALUE
at 1 kHz
≤
7 x 10
-4
≤
10 x 10
-4
100 V/μs
>
15 000 MΩ
>
5000 s
>
30 000 MΩ
2200 V; 1 min
2050 V; 1 min
at 10 kHz
≤
10 x 10
-4
≤
20 x 10
-4
www.vishay.com
2
For technical questions, contact: RFI@vishay.com
Document Number: 28121
Revision: 15-Dec-08
MKP 335 5 X2
Vishay BCcomponents
Interference Suppression Film Capacitors
MKP Radial Potted Type

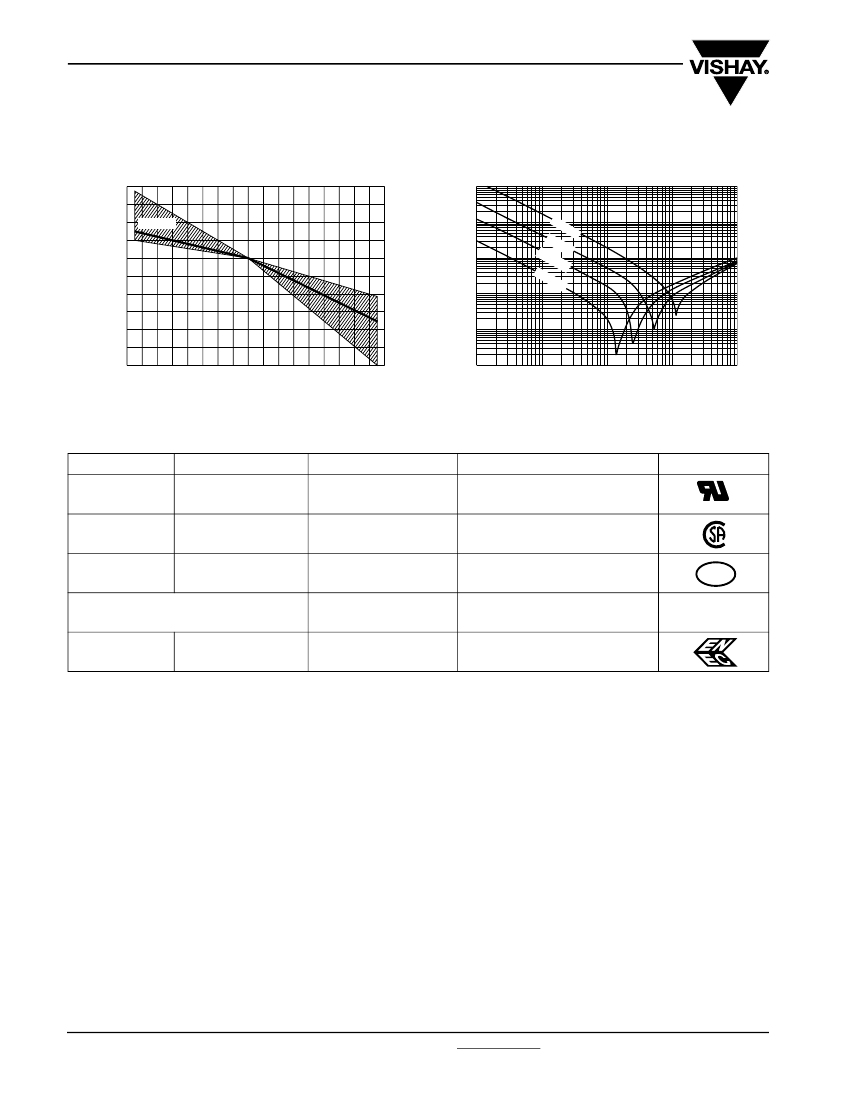

CAPACITANCE
4
C/C
(%)
2
IMPEDANCE
Impedance
(Ω)
10
3
typical
10
0
max.
-2
10
1
10
0
nF
0n
F
47
0n
F
10
47
nF
-4
min.
-6
-50
0
50
T
amb
(°C) 100
10
-1
-2
10
10
4
10
5
10
6
10
7
f (Hz) 10
8
APPROVALS
COUNTRY
U.S.A.
(for AC 250 V)
Canada
(for AC 250 V)
China
(for AC 275 V)
SPECIFICATION
UL1414
ELECTRICAL VALUES
10 nF to 1.0 µF
FILE NUMBERS
E112471
APPROVAL MARK
CSA-C22.2 No.1
10 nF to 1.0 µF
1104861 (LR94054-16)
CQC02001001482 (Shanghai factory)
CQC03001004371 (Roeselare factory)
296x12(full_width)
CQC
10 nF to 1.5 µF
10 nF to 1.5 µF:
55/100/56/B
10 nF to 1.5 µF
CQC
CB TEST CERTIFICATE (for AC 275 V)
Europe
(for AC 275 V)
EN132400
IEC 60384-14 2
nd
edition
FI 1185 A2
14216
02
APPLICATION NOTES
•
For X2 electromagnetic interference suppression in
across the line applications
(50/60 Hz) with a maximum mains voltage of
275 Vac.
•
These capacitors are not intended for continuous pulse applications. For these situations, capacitors of the AC and pulse
programs must be used.
•
These capacitors are not intended for series impedance application. For these situations in case safety approvals are
requested, please refer to our special capacitors of 1772 series with internal series connection.
•
The maximum ambient temperature must not exceed 100 °C.
•
Rated voltage pulse slope:
If the pulse voltage is lower than the rated voltage, the values of the specific reference data can be multiplied by 385 Vdc and
divided by the applied voltage.
www.vishay.com
4
For technical questions, contact: RFI@vishay.com
Document Number: 28121
Revision: 15-Dec-08
