LHD-BD-30-ST-LL-GD15 datasheet, PDF

Datasheet> All Categories > The connector> The connector> LHD-BD-30-ST-LL-GD15

LHD-BD-30-ST-LL-GD15: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

LHD-BD-30-ST-LL-GD15 Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

LHD-BD-30-ST-LL-GD15 Parametric

Parameter Name	Attribute value
Guideline	UL
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	8
Objectid	1295080779
Reach Compliance Code	Unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
Durability	1000 Cycles
Terminal pitch	2.0066 mm
Total number of contacts	30
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Installation method	STRAIGHT
PCB row number	2
Other features	ROHS COMPLIANT
Contact resistance	30 mΩ
Number of rows loaded	2
Rated current (signal)	1 A
Contact point gender	MALE
insulator material	POLYAMIDE
Installation type	BOARD
body width	0.236 inch
Terminal length	0.118 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Contact material	BRASS
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plating thickness	15u inch
Termination type	SOLDER
contact mode	RECTANGULAR
Installation option 1	LOCKING
Installation option 2	LONG LATCH

LHD-BD-30-ST-LL-GD15 Preview

SPECIFICATIONS

Current Rating:

Insulator:

Contact:

Contact Resistance:

Withstanding:

Operating Temp:

1 Amp

Nylon 66, UL94V-0

Brass

30mΩ max.

500V AC for 1 minute

-40C to +105C

RoHS compliant

Rev.

Description

Date

Approved

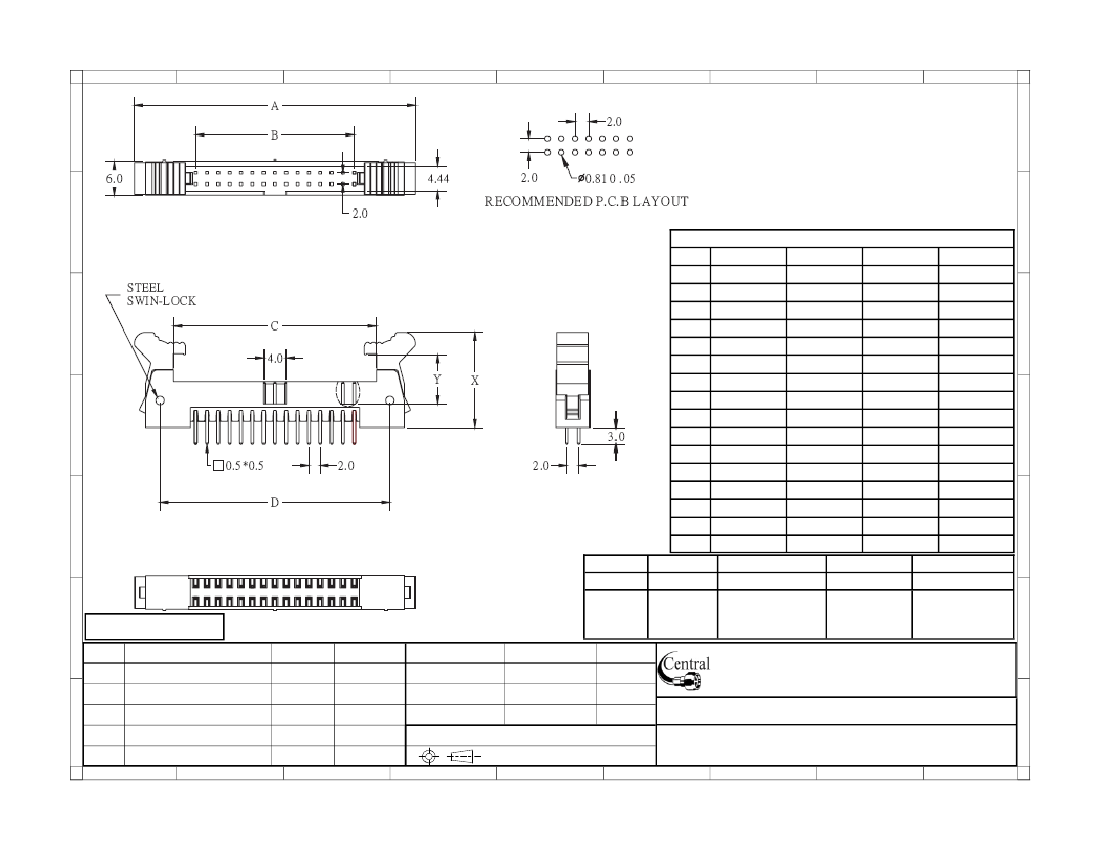

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Item

Series

Positions

LHD-BD

2mm latch 6-68 (See

header

chart)

Date

08/10/99

08/10/99 Part No.:

Dimensions

25.7

4.0

11.8

16.6

27.7

6.0

13.8

18.6

29.7

8.0

15.8

20.6

31.7

10.0

17.8

22.6

33.7

12.0

19.8

24.6

35.7

14.0

21.8

26.6

39.7

18.0

25.8

30.6

41.7

20.0

27.8

32.6

43.7

22.0

29.8

34.6

45.7

24.0

31.8

36.6

49.7

28.0

35.8

40.6

53.7

32.0

39.8

44.6

59.7

38.0

45.8

50.6

63.7

42.0

49.8

54.6

69.7

48.0

55.8

60.6

87.7

66.0

73.8

78.6

Mounting

Latch

Plating

ST=Straight

SL=Short latch GDXX=Gold

RA=Right angle

LL=Long latch XX=Flash if blank;

SM=Surface mount

05, 10, 15, 30µ”

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

LHD-BD-XX-ST-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Straight Shrouded Header, 2.0mm Pitch
