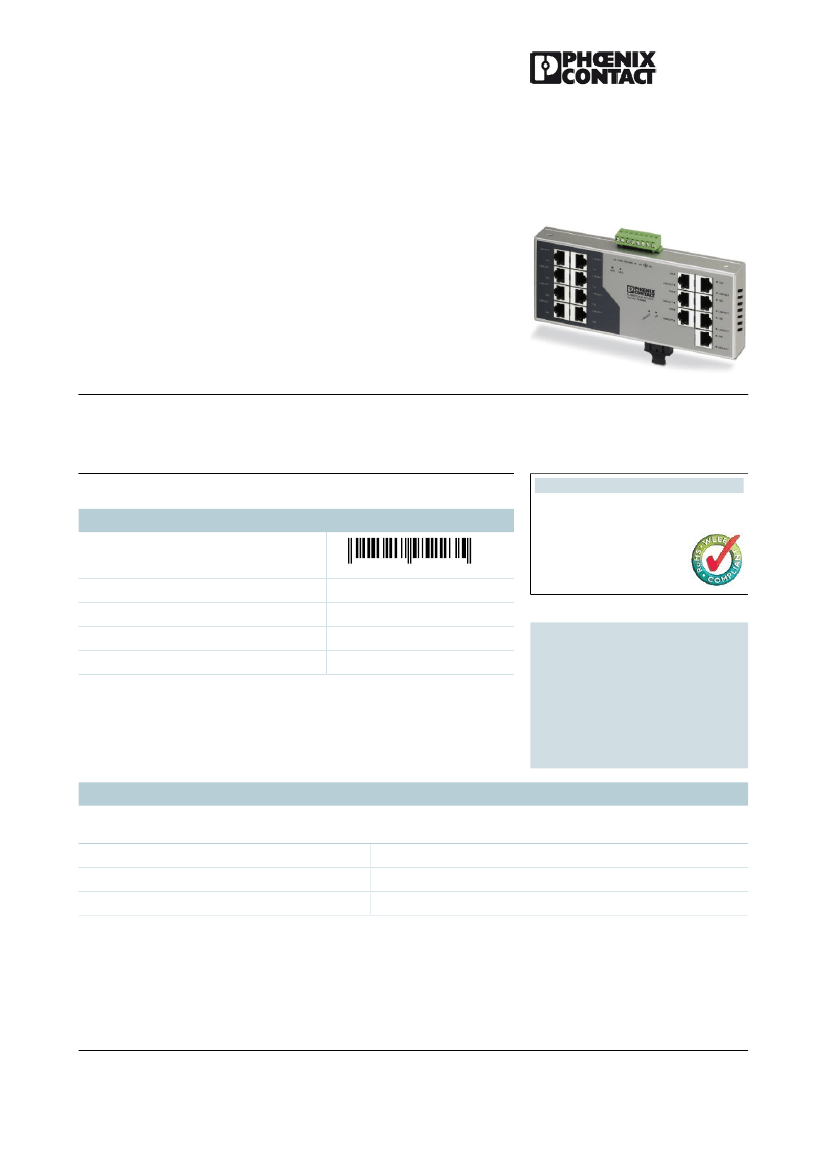

FL SWITCH SF 15TX/FX
Order No.: 2832661
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832661
Ethernet Switch, 15 TP RJ45 ports, 1 FO port, 100 Mbps full duplex in
SC-D format, automatic detection of data transmission speed of 10 or
100 Mbps (RJ45), autocrossing function
Product notes
Commercial data
GTIN (EAN)
4
017918
952235
WEEE/RoHS-compliant since:
10/21/2008
sales group
Pack
Customs tariff
Catalog page information
K000
1 pcs.
85176200
Page 199 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Interfaces
Interface
No. of ports
Type of connection
Ethernet (RJ45)
15 (RJ45 ports)
RJ45 female connector, auto negotiation and autocrossing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 4, 2011
FL SWITCH SF 15TX/FX
Order No.: 2832661
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832661
Transmission physics
Transmission speed
Transmission length
Signal LEDs
Interface
No. of ports
Type of connection
Transmission physics
Transmission speed
Transmission length
Interface
Type of connection
Function
Basic functions
Status and diagnostic indicators
Ethernet in RJ45 twisted pair
10/100 MBit/s (RJ45)
100 m (per segment)
Data receive, link status
Fiber optic interface
1 (FO port)
SC-Duplex
Multimode glass fiber
100 MBit/s (SC-D, full duplex)
6400 m (glass fiber with F-G 50/125 0.7 dB/km F1200)
Potential-free signaling contact
Plug-in/screw connection via COMBICON
Unmanaged switch / autonegotiation, complies with IEEE 802.3,
store and forward switching mode
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per
port
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
General data
Weight
Width
Height
Depth
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
380 g
205 mm
115.3 mm
30 mm
IP20
0 °C ... 55 °C
-20 °C ... 70 °C
5 % ... 95 % (no condensation)
24 V DC
3.6 V
PP
(within the permitted voltage range)
18.5 V DC ... 30.2 V DC
Typ. 330 mA
Network, linear, and star structure: any
100 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 4, 2011
FL SWITCH SF 15TX/FX
Order No.: 2832661
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832661
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Housing material
Noise emission
Noise immunity
Conformity with EMC directives
Developed in acc. with standard
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Certificates / Approvals
5 % ... 95 % (no condensation)
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
66 kPa ... 108 kPa (up to 3500 m above mean sea level)
Aluminum
EN 61000-6-4
EN 61000-6-2:2005
IEC 61000-6.2
IEC 61000-4-2 (ESD)
Criterion B
IEC 61000-4-3 (immunity to radiated interference)
Criterion A
IEC 61000-4-4 (burst)
Criterion A
IEC 61000-4-5 (surge)
Criterion A
IEC 61000-4-6 (immunity to conducted interference)
Criterion A
IEC 61000-4-8 (immunity to magnetic fields)
Criterion A
EN 55022 (emitted interference)
Criterion A
Certification
Certification Ex:
CUL, UL
CUL-EX LIS, UL-EX LIS
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 4, 2011
FL SWITCH SF 15TX/FX
Order No.: 2832661
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832661
Accessories
Item
Designation
Description
Cable/conductor
2744830
FL CAT5 FLEX
CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-
duty, flexible installation cable 2 x 2 x 0.14 mm², stranded,
shielded, outer sheath: 5.75 mm ± 0.15 mm diameter
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-
duty installation cable, 2 x 2 x 0.22 mm², solid conductor, shielded,
outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm
diameter
2744814
FL CAT5 HEAVY
Plug/Adapter
2744571
FL PLUG RJ45 GN/2
RJ45 connector, shielded, with bend protection sleeve, 2 pieces,
green for crossed cables, for assembly on site. For connections
that are crossed, it is recommended that the connector set with
green bend protection sleeves is used.
RJ45 connector, shielded, with bend protection sleeve, 2 pieces,
gray for straight cables, for assembly on site. For connections that
are not crossed, it is recommended that you use the connector set
with gray bend protection sleeve.
2744856
FL PLUG RJ45 GR/2
Tools
2744869
FL CRIMPTOOL
Crimping pliers, for assembling the RJ45 connectors FL PLUG
RJ45..., for assembly on site
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 4, 2011
FL SWITCH SF 15TX/FX
Order No.: 2832661
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832661
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
