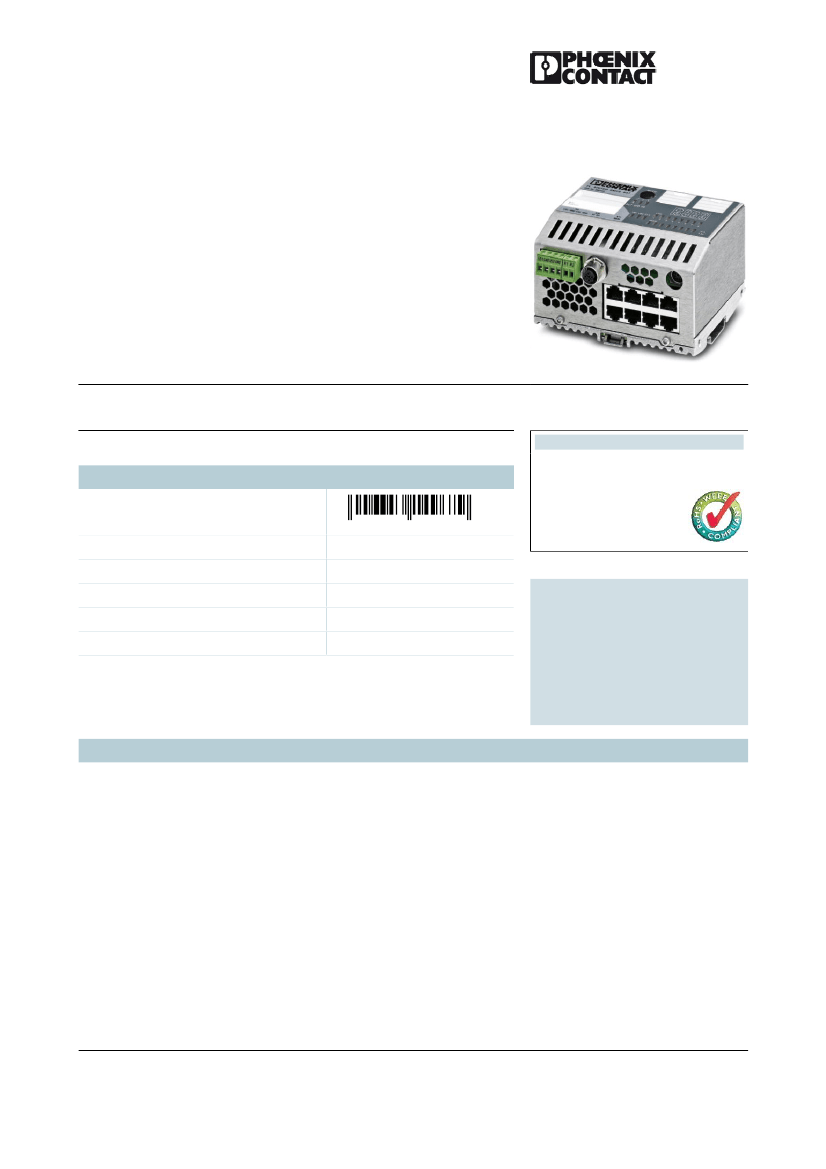

Extract from the online
catalog
FL SWITCH SMCS 8GT
Order No.: 2891123
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891123
Smart managed compact switch with eight RJ45 Gigabit ports
Product notes
Commercial data
GTIN (EAN)
4
046356
149679
WEEE/RoHS-compliant since:
04/17/2007
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
K000
1 pcs.
85176200
Page 184 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Product description
Installation notes
The device is designed for installation in zone 2.
Installation, operation, and servicing may only be carried out by qualified personnel.
Follow the installation instructions described in the operating instructions.
When installing and operating the device, the applicable safety directives (including national safety directives), accident
prevention regulations, as well as general technical regulations, must be observed. The safety-relevant data can be
found in the package slip.
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 4, 2011
FL SWITCH SMCS 8GT
Order No.: 2891123
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891123
Access to the circuits within the device is not permitted. Do not repair the device yourself, but replace it with an
equivalent device. Repairs may be carried out only by the manufacturer.
The IP20 protection (IEC 60529/EN60529) of the device is intended for use in a clean and dry environment. The device
must not be subject to mechanical strain and/or thermal loads, which exceed the limits described. The device is not
designed for use in environments with danger of dust explosions.
The DIN rail must be connected to protective earth ground.
Installation in zone 2
Observe the specified conditions for use in potentially explosive areas! At the time of installation, use an approved
housing (minimum protection IP54), which meets the requirements of EN 60079-15. Observe the requirements of the EN
60079-14.
The snapping of the switches and the connection and disconnecting lines are permissible only if they are not live.
The unintentional disconnection from the RJ45 plug is prevented by appropriate measures, for example with a FL
PATCH GUARD or the FL PATCH SAFE CLIP.
In zone 2, only connect devices to the supply and signal circuits that are suitable for operation in potentially explosive
areas of zone 2 and the conditions at the installation location.
The device should be switched off and immediately removed from the Ex area if it is damaged, or has been overloaded,
inappropriately stored or has malfunctions.
Technical data
Interfaces
Interface
No. of ports
Type of connection
Transmission physics
Transmission speed
Transmission length
Signal LEDs
Interface
Type of connection
No. of ports
Function
Basic functions
Store-and-forward switch complies with IEEE 802.3 2 priority
classes as per IEEE 802.1 P TCP/IP protocol, BootP-capable,
port-mirroring, integrated web server function, multicast
filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP),
PROFINET IO Device, media redundancy protocol (MRP).
Web based management, SNMP or over V.24 (RS-232)
Internet Explorer 5.5 or higher
Ethernet
8
RJ45
Copper
10/100/1000 MBit/s
100 m (per segment)
Supply voltage, data transmission, error, link, activity
Serial (V.24 (RS-232))
V.24 (RS-232-C), 6-pos. MINI-DIN female connector (PS/2)
8
Management
Supported browsers
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 4, 2011
FL SWITCH SMCS 8GT
Order No.: 2891123
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891123
Redundancy
Status and diagnostic indicators
Spanning Tree 802.1d, Rapid Spanning Tree 802.1w, Fast Ring
Detection, Media Redundancy Protocol (MRP) as per IEC 62439
Per Ethernet 2 status LEDs: LINK and status activity with switch-
over, 100, full duplex, supply voltage U
s1
and U
s2
(redundant
supply voltage) and FAIL
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
General data
Weight
Width
Height
Depth
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Noise emission
Noise immunity
Certificates / Approvals
650 g
128 mm
100 mm
69 mm
IP20
0 °C ... 55 °C
-40 °C ... 85 °C
5 % ... 95 % (no condensation)
5 % ... 95 % (no condensation)
86 kPa ... 108 kPa (1500 m above sea level)
66 kPa ... 108 kPa (3500 m above sea level)
EN 61000-6-3:2001+A11
EN 61000-6-2:2005
24 V DC
3.6 V
PP
(within the permitted voltage range)
18 V DC ... 32 V DC
600 mA (at U
S
= 24 V DC)
Network, linear, and star structure: any
100 m
Certification
ABS, BV, CUL, DNV, GL, GOST, LR, UL
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 4, 2011
FL SWITCH SMCS 8GT
Order No.: 2891123
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891123
Accessories
Item
Designation
Description
Cable/conductor
2891181
2891288
2891385
2891482
2891877
2891369
2891372
2891589
2891576
2891686
2891783
2891880
General
2891259
2891275
FL MEM PLUG
FL MEM PLUG/MRM
Exchangeable configuration memory of the device settings for
simple device exchange and set-up
Exchangeable configuration memory of the device settings
for simple device exchange and set-up In addition, the Media
Redundancy Manager (MRM) license for use is stored within the
Media Redundancy protocol (MRP).
Patch field with two RJ45 CAT6 network connections
Patch field with eight RJ45 CAT6 network connections
FL CAT6 PATCH 0,3
FL CAT6 PATCH 0,5
FL CAT6 PATCH 1,0
FL CAT6 PATCH 1,5
FL CAT6 PATCH 10
FL CAT6 PATCH 12,5
FL CAT6 PATCH 15,0
FL CAT6 PATCH 2,0
FL CAT6 PATCH 20,0
FL CAT6 PATCH 3,0
FL CAT6 PATCH 5,0
FL CAT6 PATCH 7,5
Patch cable, CAT6, pre-assembled, 0.3 m
Patch cable, CAT6, pre-assembled, 0.5 m
Patch cable, CAT6, pre-assembled, 1.0 m
Patch cable, CAT6, pre-assembled, 1.5 m
Patch cable, CAT6, pre-assembled, 10 m
Patch cable, CAT6, pre-assembled, 12.5 m
Patch cable, CAT6, pre-assembled, 15.0 m
Patch cable, CAT6, pre-assembled, 2.0 m
Patch cable, CAT6, pre-assembled, 20.0 m
Patch cable, CAT6, pre-assembled, 3.0 m
Patch cable, CAT6, pre-assembled, 5.0 m
Patch cable, CAT6, pre-assembled, 7.5 m
2891068
2891071
Plug/Adapter
2730611
FL PF 2TX CAT 6
FL PF 8TX CAT 6
PRG CAB MINI DIN
Connection cable, to connect Remote Field Controllers to a PC
(RS-232) for PC WORX, 3 m in length
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 4, 2011
FL SWITCH SMCS 8GT
Order No.: 2891123
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891123
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
