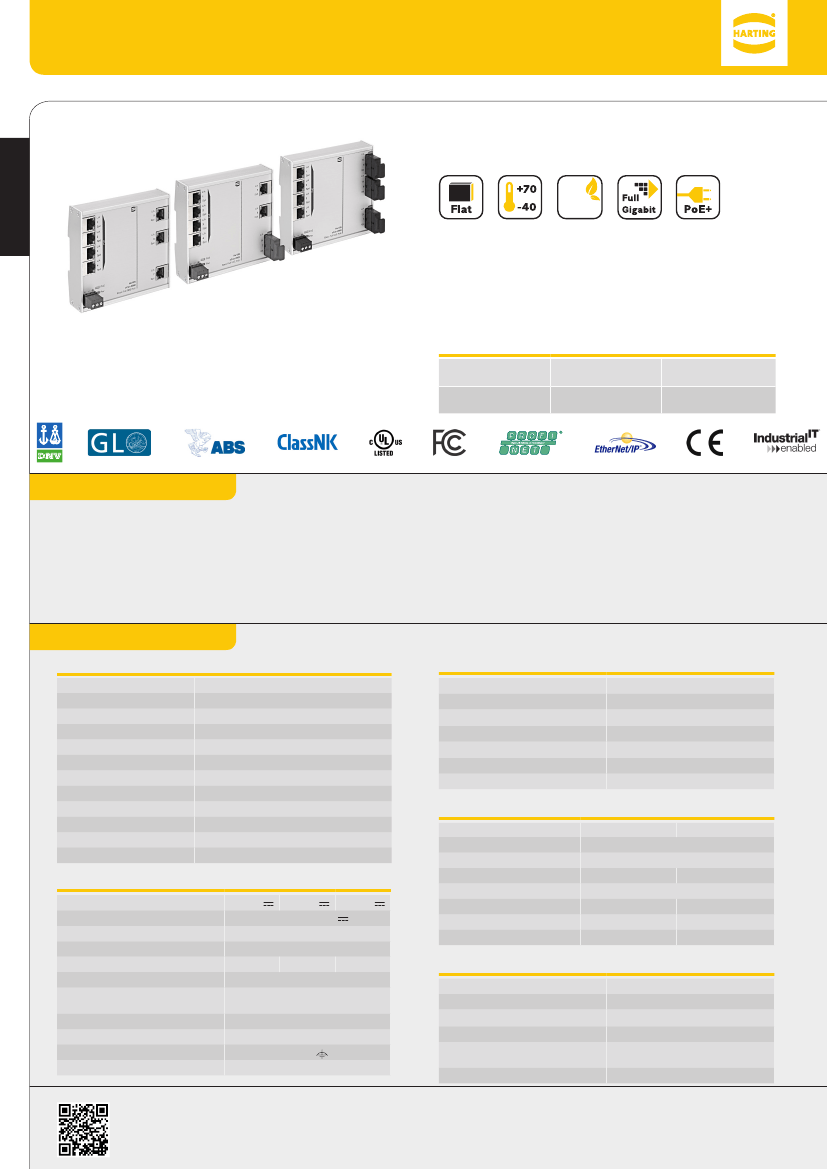

Ha-VIS eCon 2000 Full Gigabit Ethernet Basic PoE / PoE+
4 to 7 Ethernet ports RJ45, FOC, and PoE / PoE+
Unmanaged Plug and Play Ethernet switches for DIN rail assembly in control
cabinets
Commercial temp.: 0 °C ... +55 °C / Industrial temp.: -40 °C ... +70 °C
English
Energy
Efficient
Ethernet
■
Energy supply of up to 4 terminal devices via PoE+ (137 watts) in ac-
■
Full Gigabit Ethernet non-blocking switch architecture according to IEEE 802.3
■
Support of jumbo frames (10 kB)
■
Variants
with industrial temperature range
of -40 °C ... +70 ° C
■
Wide range power supply 24/48 VDC
■
Surge protection and reverse polarity protection
■
Minimum energy consumption due to energy-efficient Ethernet
Target markets
Machinery & Robotics
Wind Energy,
Solar Energy
Automation
Transportation
Industrial network
infrastructures
Shipbuilding
cordance with IEEE 802.3at
General description
The Ha-VIS eCon 2000 Full Gigabit family of unmanaged Ethernet switches
is equipped with up to 7 gigabit Ethernet ports and allow for cost-efficient
and quick expansion and/or reconstruction of network infrastructures
with high bandwidth requirements. In this, all variants support extra-long
Ethernet frames (jumbo frames). The switches work as power sourcing
equipment (PSE) and are capable of simultaneously providing the full
PoE output of 34.2 watts on up to four ports. Due to the extremely flat
Technical characteristics
Switch features
Enclosure width
Number of interfaces
Switching technology
Supported standards
Frame size
MAC table size
Packet buffer size
Non-blocking
Quality of Service
Energy-efficient Ethernet
PROFINET-compatible
EthernetIP-compatible
Power supply
Nominal voltage
Permissible voltage range
Surge protection
Reverse polarity proof
Starting current
Overcurrent protection at input
Max. power consumption
@ 24 VDC
Conductor cross-section
Type of connection
Pinout
Supply circuit (according to 60950)
3.2 A
24 VDC
48 VDC
9 VDC ... 60 VDC
Yes
Yes
6.40 A
Yes (4 A)
3.60 W ... 4.80 W
0.08 mm² ... 2.5 mm² (28 AWG ... 12 AWG)
3-pole, pluggable screw type terminal block
+/-/
SELV (circuit breaker 10 A)
7.20 A
54 VDC
120 mm
5, 7
Store and Forward
IEEE 802.3
10 kBytes
8k entries
1 Mbit
Yes
Yes
Yes
Yes
Yes
Ethernet ports 10BASE-T / 100BASE-TX EEE / 1000BASE-TX EEE
Type of connection
Auto-negotiation
Auto-polarity
Auto-MDI(X)
Transfer conditions
Transfer speed
Transfer length
Ethernet ports 1000BASE-SX / 1000BASE-LX
Type of fibre
Type of connection
Transfer conditions
Wavelength
Transfer speed
Transfer length
Output power
Input sensitivity
Environmental conditions
Commercial temperature range
Industrial temperature range
Storage temperature range
Relative humidity (operation)
Relative humidity (storage and
transport)
Air pressure
0 °C ... +55 °C
-40 °C ... +70 °C
-40 °C ... +85 °C
0% ... 95 % (non-condensing)
0% ... 95 % (non-condensing)
2000 m (795 hPa)
0.55 km
-9.5 dBm ... -4 dBm
≤ -17 dBm
850 nm
1000 Mbit/s
10 km
-9.5 dBm ... -3 dBm
≤ -21 dBm
Multi-mode (MM)
FOC
1310 nm
Single-mode (SM)
RJ45
Yes
Yes
Yes
Twisted pair
10 / 100 / 1000 Mbit/s
100 m (Twisted Pair, Cat 5)
design, these switches can be accommodated in installations where space
is restricted towards the cable connection at the front. The selection
includes various combinations of variants with RJ45 and fibre optic ports.
Automatic detection of the transmission rate (auto-negotiation) and of the
wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allow for
simple plug and play. All variants are available with the temperature ranges
"Industrial" and "Commercial".
SC Duplex
HARTING Technology Group
P.O.Box 1473, D-32325 Espelkamp
Wilhelm-Harting-Straße 1, D-32325 Espelkamp, Germany
ICPN-Service@harting.com | Service hotline: +49 5772 47-9479
Fax: +49 5772 47-495 | www.HARTING.com/de/ethernet-switches
Note:
We reserve the right to make technical changes to the products and to the content of this
document at any time without prior notification. The HARTING Technologiegruppe does not ac-
cept any responsibility for possible errors or incompletions in this document. We reserve all the
rights to this document and the topics and illustrations contained within it. Copying, disclosure to
third parties or use of its content - even partially - is forbidden without the prior written consent
of the HARTING Technologiegruppe.
PoE
Number of PoE ports
Standard
PoE type
Supported mode
Power supply PSE
Maximum Power consumption
Maximum output power PSE
Supported cabling
PoE pinout
Status and diagnostic displays
Power ("Pwr")
illuminated green
Supply voltage is applied
No link
Link is active
Link is active and data is transferred
10 Mbit/s
100 Mbit/s
1000 Mbit/s
PoE is inactive / low voltage
Voltage in PoE range
Voltage in PoE+ range
Fault
48 VDC
375 mA
15.4 W per port
61.6 W total
4
IEEE 802.3af / IEEE 802.3at
PSE
Alternative A
54 VDC
638 mA
34.2 W per port
136.8 W total
Enclosures
Enclosure width
Dimensions H x W x D (without
pluggable screw type terminal
block and holding bracket)
Weight
Type of installation
Material enclosures
Protection class (with
pluggable
screw type terminal block)
Protection class
120 mm
113.5 mm x 120 mm x 27.3 mm
410 g ... 442 g
35 mm DIN rail acc. to EN 60 715
Anodised aluminium
IP30
III
See 802.3at, section 33.1.4
Alternative A, MDI-X (1/2 = V-, 3/6 = V+)
Approvals
CE, FCC CFR 47 Part 15, cUL US 508 listed, DNV, GL, ABS, NK, ABB IIT
EMC and environmental conditions
EMC interference immunity (EN 61000-6-1, 61 000-6-2 55024)
Electrostatic discharge (ESD) EN 61 000-4-2
Electromagnetic field EN 61 000-4-3
Rapid transients (burst) EN 61 000-4-4
Surge voltages EN 61 000-4-5
Conducted interference voltages EN 61 000-4-6
EMC interference emission (EN 61000-6-4, EN 55 022, FCC CFR 47 Part 15)
Mechanical stability (EN 60721-3)
IEC 60068-2-6 Vibration
IEC 60068-2-6 Resonance search
IEC 60068-2-27 Shock test
Included in delivery
■
Pluggable screw type terminal block for power supply
■
Installation instructions
Link/Activity ("L/A") off
Link/Activity ("L/A") illuminated green
Link/Activity ("L/A") flashes green
Link speed ("Spd") off
Link speed ("Spd") illuminated yellow
Link speed ("Spd") illuminated green
PoE status off
PoE status illuminated green
PoE status illuminated blue
PoE status illuminated red

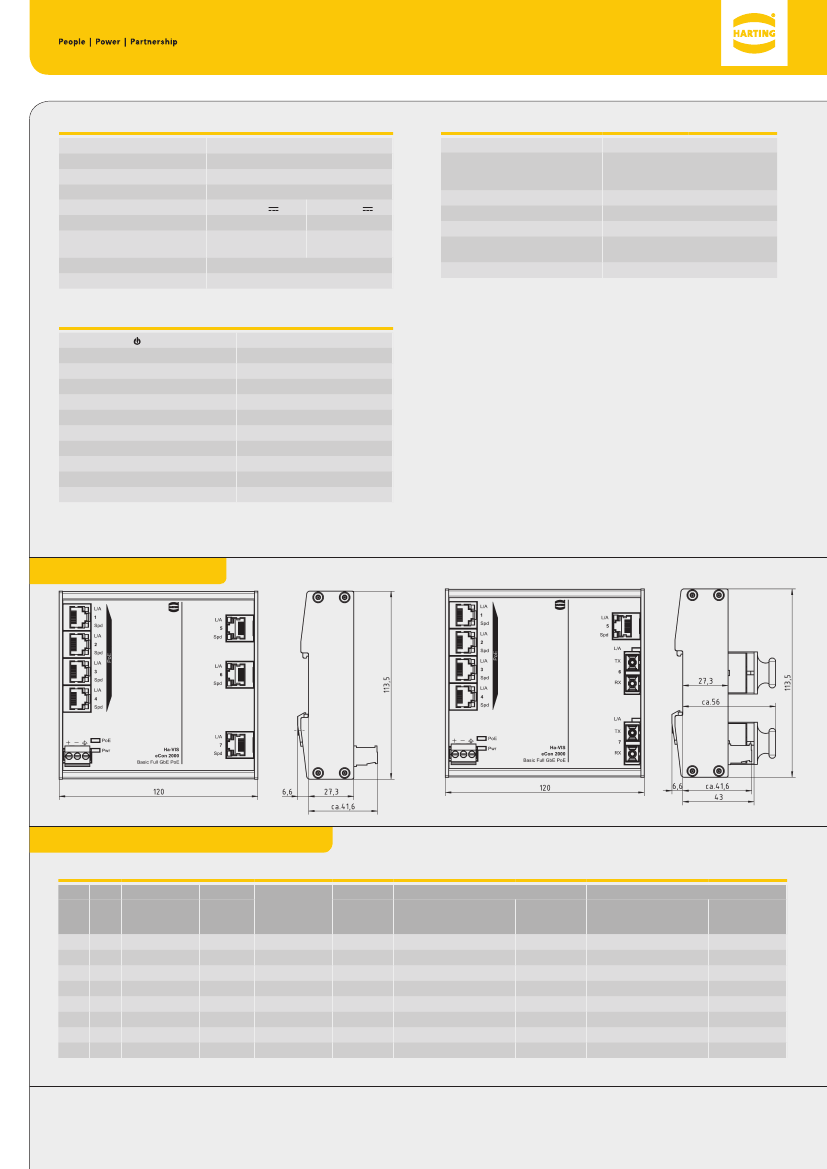

Drawings
Technical characteristics / order information
Ports / order information
Power con-
sumption @ 24
VDC
without PoE
0.19 A
0.20 A
0.15 A
0.19 A
0.20 A
0.19 A
0.20 A
0.19 A
Commercial temp.: 0 °C ... +55 °C
MTBF
in million h
0.98
0.98
1.01
0.98
0.98
0.98
0.98
0.98
Switch
Part no.
Industrial temp.: -40 °C ... +70 °C
Switch
Part no.
24 02 404 3120
24 02 404 3220
24 02 405 0020
24 02 405 2120
24 02 405 2220
24 02 406 1120
24 02 406 1220
24 02 407 0020
RJ45
4
4
5
5
5
6
6
7
SFP
-
-
-
-
-
-
-
-
SC
3x MM (0.55 km)
3x SM (10 km)
-
2x MM (0.55 km)
2x SM (10 km)
1x MM (0.55 km)
1x SM (10 km)
-
Enclosure
width
120 mm
120 mm
120 mm
120 mm
120 mm
120 mm
120 mm
120 mm
Ha-VIS eCon 2043GB-AD-P 24 02 404 3130 Ha-VIS eCon 2043GBT-AD-P
Ha-VIS eCon 2043GB-AF-P
Ha-VIS eCon 2050GB-A-P
Ha-VIS eCon 2052GB-AF-P
Ha-VIS eCon 2061GB-AD-P
Ha-VIS eCon 2061GB-AF-P
Ha-VIS eCon 2070GB-A-P
24 02 404 3230 Ha-VIS eCon 2043GBT-AF-P
24 02 405 0030 Ha-VIS eCon 2050GBT-A-P
24 02 405 2230 Ha-VIS eCon 2052GBT-AF-P
24 02 406 1130 Ha-VIS eCon 2061GBT-AD-P
24 02 406 1230 Ha-VIS eCon 2061GBT-AF-P
24 02 407 0030 Ha-VIS eCon 2070GBT-A-P
Ha-VIS eCon 2052GB-AD-P 24 02 405 2130 Ha-VIS eCon 2052GBT-AD-P
Copyright
©
2014
HARTING Technology Group
All rights reserved
Date of issue 02.2015
ICPN Datasheet 0840/01
