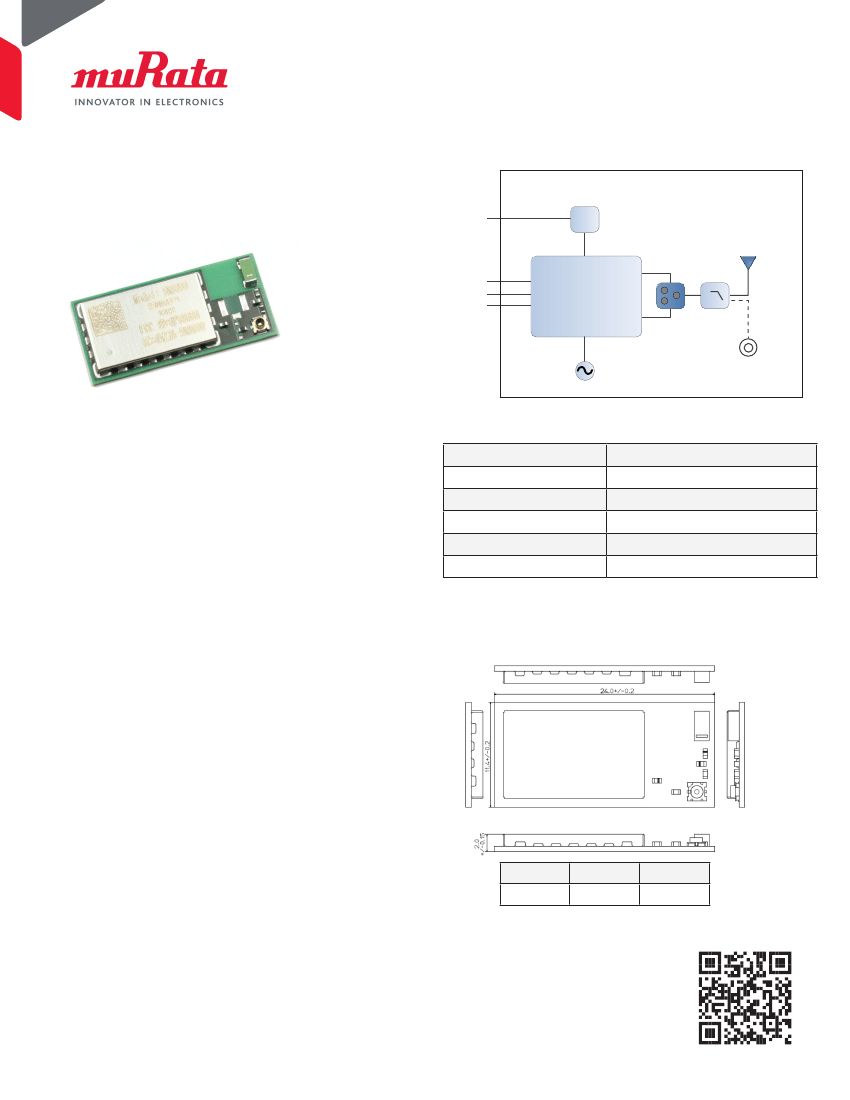

SN8000
Module Block Diagram
SN8000 Module
VDD_BAT
LDO
SN8000
ANT
Wi-Fi 802.11b/g/n Module
SDIO
VDD_IO
Sleep_CLK
(Optional)
BCM43362
(802.11b/g/n)
SPDT
LPF
TXCO
SN8000UFL
The SN8000 is a certified 2.4 GHz IEEE 802.11b/g/n Wi-Fi module
based on the Broadcom BCM43362 chipset. SN8000 is designed
to fit indoor and outdoor sensor and control applications. It
integrates Wi-Fi IC, RF front end, temperature compensated crystal
(TCXO) and an on-board antenna. The module dimensions are
24 x 11.4 x 2.0 mm.
SN8000 is enabled with Broadcom WICED™ SDK software to support
low power, low cost microcontroller platforms from STM32F2/F4,
Freescale K60, i.MX6, Atmel SAM4, NXP LPC17xx, NXP LPC43xx,
and ZentriOS SDK.
The SN8000 module is an ideal solution for home automation,
industrial control, Smart Energy, medical and healthcare applications
with or without cloud services.

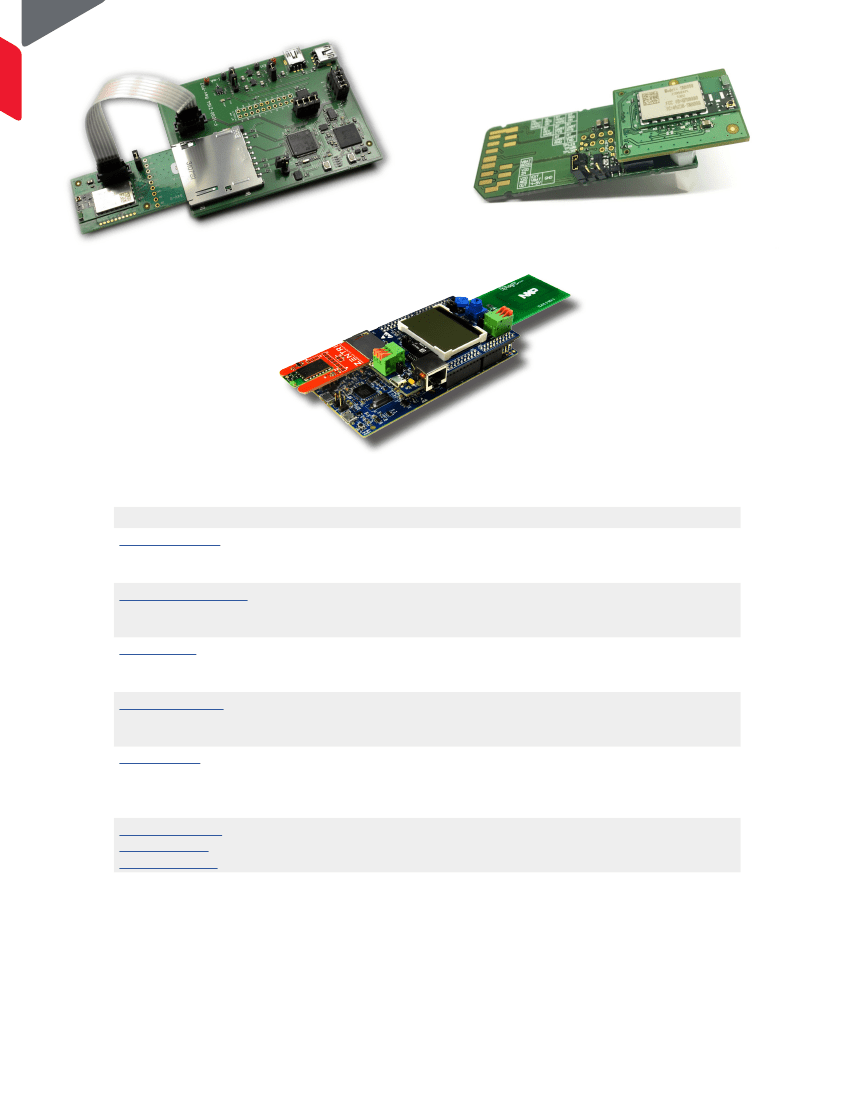

The module and evaluation kit are available from Murata distribution
partners. A footprint compatible version with U.FL connector,
SN8000UFL, is also available to connect to an external antenna.
Module Specifications
Technology
Antenna Configuration
Transmit Power
Max receive sensitivity
Host interface
Operating temperature
2.4 GHz IEEE 802.11b/g/n
On-board or U.FL Connector
+18.5dBm @b mode/11Mbps
-96dBm
SDIO
-40°C to +85°C
Module Dimensions
SN8000 Module Features
zz
2.4GHz IEEE 802.11b/g/n
zz
Chipset: Broadcom BCM43362 Wi-Fi®
zz
Supports WPA/WPA2 Security
zz
Compatible with Broadcom WICED™ SDK for STM32F2/
F4, Freescale K60, i.MX6, Atmel SAM4, NXP LPC17xx, NXP
LPC43xx, and ZentriOS SDK
zz
FCC/IC Certified, CE Compliant
zz
RoHS2 Compliant
L (mm)
W (mm)
H (mm)
24.0 ±0.2 11.4 ±0.2 2.0 ±1.5
SN8000 Module Application
zz
Home Automation & Home Energy Management
zz
Systems
zz
Smart Appliances
zz
Industrial Control and Monitoring
zz
Medical and Healthcare
© December 2015 Murata Electronics • wireless.murata.com • Contents subject to change without
