Part Number

Search

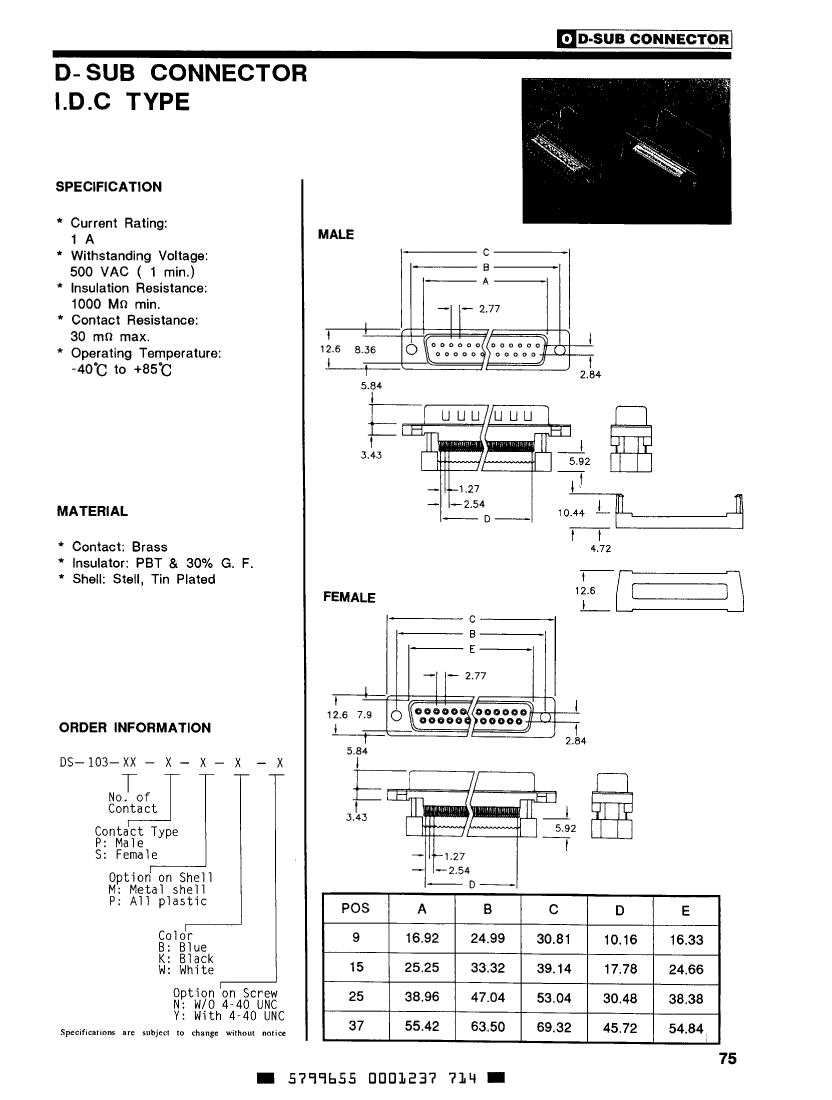

DS-103-25-S-M-W-Y

Description
D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size65KB,1 Pages
ManufacturerMarktech
Websitehttps://www.marktechopto.com/
Download Datasheet Parametric View All

DS-103-25-S-M-W-Y Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, #4-40, Plug

DS-103-25-S-M-W-Y Parametric

Parameter NameAttribute value
Contact styleRND PIN-SKT
Insulator colorWHITE
Match contact row spacing0.112 inch
Installation option 2THREADED
OptionsGENERAL PURPOSE
Termination typeIDC
Contactor designPREASSEM CONN
Contact materialBRASS
contact modeSTAGGERED
Plug contact pitch0.109 inch
Installation option 1#4-40
Shell surfaceTIN
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
YTEOL0
Objectid300004851
Reach Compliance CodeUnknown
ECCN codeEAR99
Is SamacsysN
body width0.496 inch
body length2.088 inch
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation typeCABLE
Rated current (signal)1 A
Shell materialSTEEL
Body/casing typePLUG
Contact point genderFEMALE
Number of rows loaded2
Total number of contacts25
Connector typeD SUBMINIATURE CONNECTOR
Contact resistance30 mΩ
