10075025-F46LF datasheet, PDF - EEWORLD Datasheet

10075025-F46LF: DescriptionBoard Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10075025-F46LF Overview

Board Connector, 92 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Is Samacsys	N
YTEOL	8
Objectid	306434104
Reach Compliance Code	Compliant
ECCN code	EAR99
subject depth	0.232 inch
body length	3.713 inch
Terminal length	0.079 inch
body width	0.24 inch
Terminal pitch	2.0066 mm
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
insulator material	POLYETHYLENE
PCB row number	2
Number of rows loaded	2
Rated current (signal)	2 A
Total number of contacts	46
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Installation method	STRAIGHT
Installation type	BOARD
Plug contact pitch	0.079 inch
Number of connectors	ONE
Contact style	SQ PIN-SKT
Match contact row spacing	0.079 inch
Termination type	SOLDER
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
Mixed contacts	NO
PCB contact row spacing	2.0066 mm
contact mode	RECTANGULAR
Insulator color	BLACK
Installation option 1	LOCKING
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Insulation resistance	10000000000 Ω
polarization key	POLARIZED HOUSING
Dielectric withstand voltage	900VAC V
Filter function	NO
JESD-609 code	e3
Guideline	UL, CSA
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C

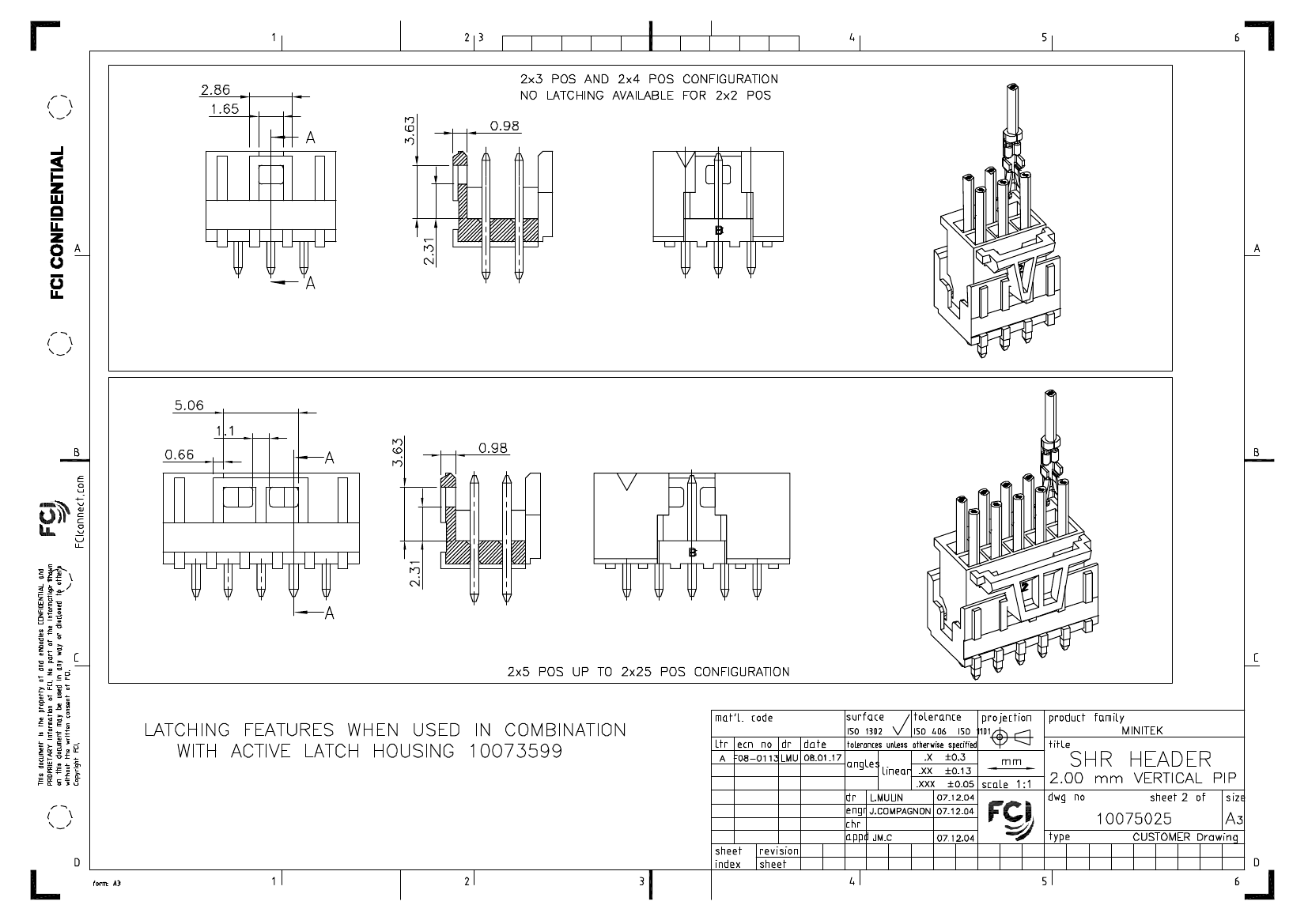

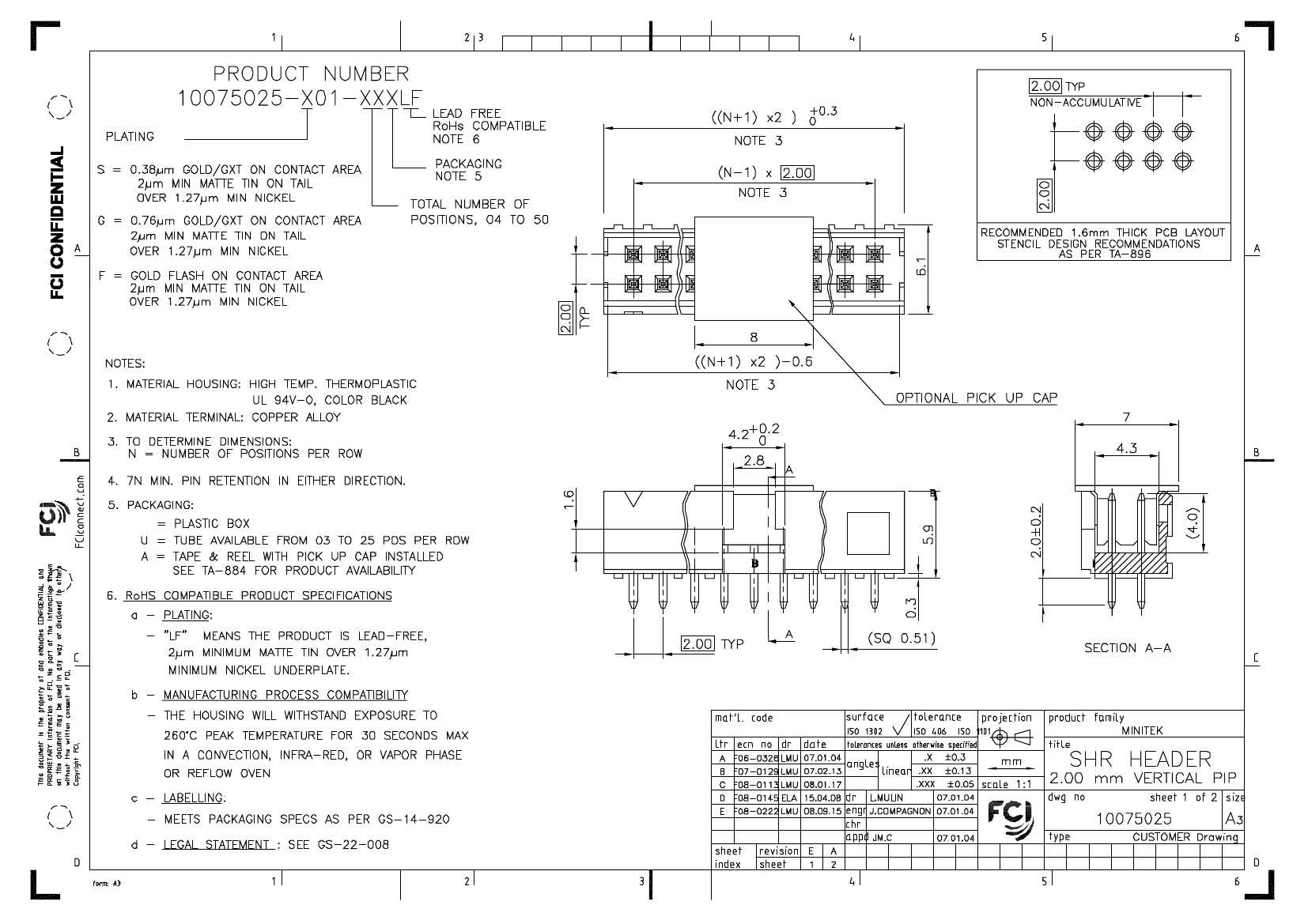

PDM: Rev:E

STATUS:

Released

Printed: Sep 23, 2008

.
