5962F9672001VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9672001VXC

5962F9672001VXC: DescriptionACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14; Categorylogic logic; File Size57KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9672001VXC Overview

ACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14

5962F9672001VXC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	not_compliant
series	ACT
JESD-30 code	R-CDFP-F14
JESD-609 code	e0
Logic integrated circuit type	PARITY GENERATOR/CHECKER
Number of digits	9
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	24 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
width	6.285 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACTS280MS

January 1996

Radiation Hardened 9-Bit Odd/

Even Parity Generator Checker

Pinouts

14 PIN CERAMIC DUAL-IN-LINE

MIL-STD-1835 DESIGNATOR, CDIP2-T14,

LEAD FINISH C

TOP VIEW

I6 1

I7 2

NC 3

I8 4

EVEN 5

ODD 6

GND 7

14 VCC

13 I5

12 I4

11 I3

10 I2

9 I1

8 I0

Features

• Devices QML Qualiﬁed in Accordance with MIL-PRF-38535

• Detailed Electrical and Screening Requirements are Contained in

SMD# 5962-96720 and Intersil’ QM Plan

• 1.25 Micron Radiation Hardened SOS CMOS

• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)

• Single Event Upset (SEU) Immunity: <1 x 10

-10

Errors/Bit/Day

(Typ)

• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm

/mg

• Dose Rate Upset . . . . . . . . . . . . . . . . >10

RAD (Si)/s, 20ns Pulse

• Dose Rate Survivability . . . . . . . . . . . >10

RAD (Si)/s, 20ns Pulse

• Latch-Up Free Under Any Conditions

• Military Temperature Range . . . . . . . . . . . . . . . . . . -55

C to +125

• Signiﬁcant Power Reduction Compared to ALSTTL Logic

• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V

• Input Logic Levels

- VIL = 0.8V Max

- VIH = VCC/2 Min

• Input Current

≤

1µA at VOL, VOH

• Fast Propagation Delay . . . . . . . . . . . . . . . . 24ns (Max), 16ns (Typ)

14 PIN CERAMIC FLATPACK

MIL-STD-1835 DESIGNATOR, CDFP3-F14

LEAD FINISH C

TOP VIEW

EVEN

ODD

GND

VCC

Description

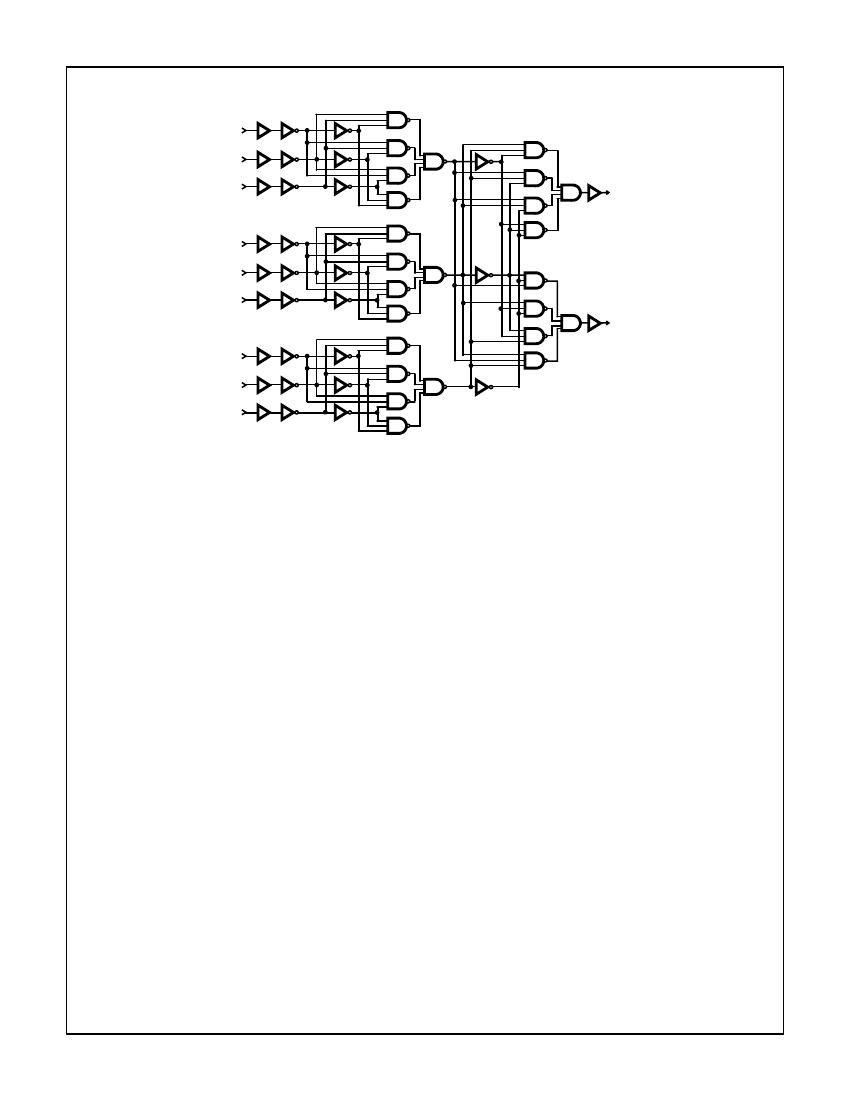

The Intersil ACTS280MS is a Radiation Hardened 9-bit odd/even parity

generator checker device. Both odd and even parity outputs are available

for generating or checking parity for words up to 9 bits long. Even parity

is indicated (EVEN output high) when an even number of data inputs are

high. Odd parity is indicated (ODD output high) when an odd number of

data inputs are high. Parity checking for larger words can be accom-

plished by tying EVEN output to any input of an additional ACTS280MS.

The ACTS280MS utilizes advanced CMOS/SOS technology to achieve

high-speed operation. This device is a member of a radiation hardened,

high-speed, CMOS/SOS Logic Family.

The ACTS280MS is supplied in a 14 lead Ceramic Flatpack (K sufﬁx) or

a Ceramic Dual-In-Line Package (D sufﬁx).

Ordering Information

PART NUMBER

5962F9672001VCC

5962F9672001VXC

ACTS280D/Sample

ACTS280K/Sample

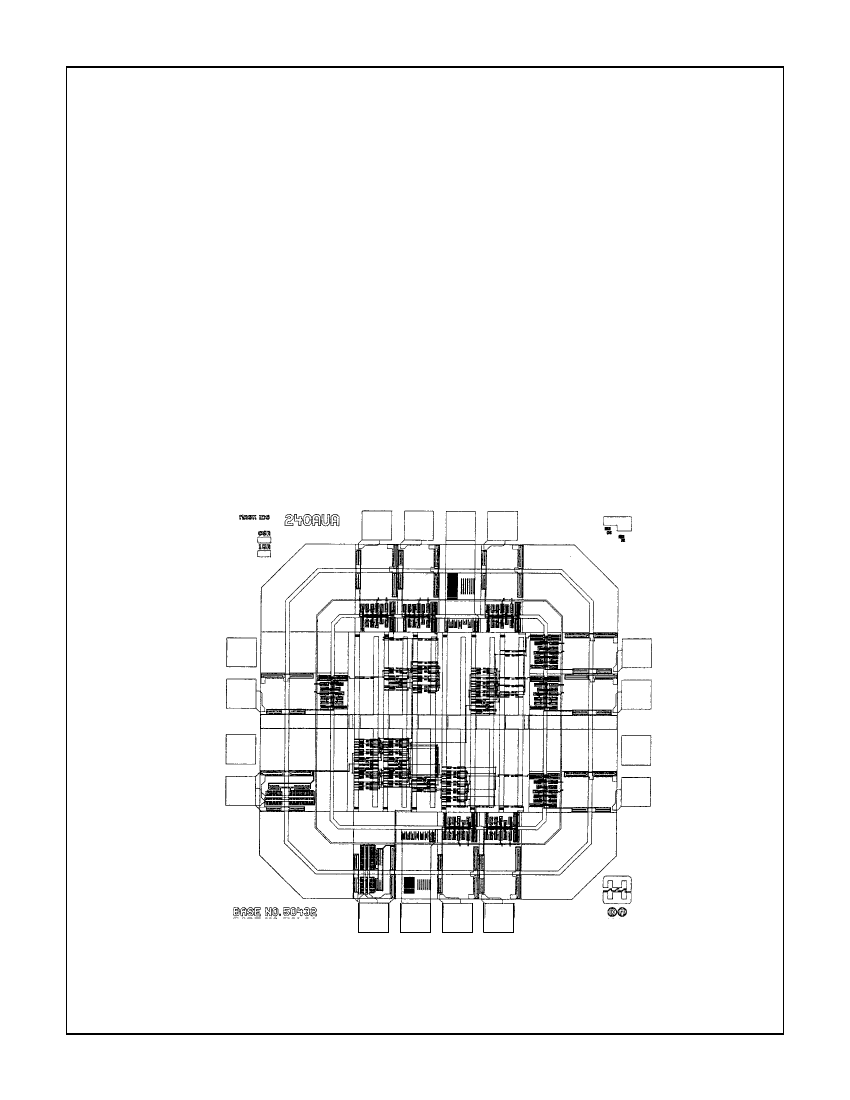

ACTS280HMSR

TEMPERATURE RANGE

-55

C to +125

-55

C to +125

SCREENING LEVEL

MIL-PRF-38535 Class V

Sample

Die

PACKAGE

14 Lead SBDIP

14 Lead Ceramic Flatpack

14 Lead SBDIP

14 Lead Ceramic Flatpack

Die

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

Intersil Corporation 1999

Spec Number

File Number

518827

3569.1

5962F9672001VXC Related Products

	5962F9672001VXC	5962F9672001VCC	ACTS280K	ACTS280HMSR
Description	ACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14	ACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDIP14	ACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, CDFP14	ACT SERIES, 9-BIT PARITY GENERATOR/CHECKER, COMPLEMENTARY OUTPUT, UUC13
package instruction	DFP, FL14,.3	DIP, DIP14,.3	,	DIE,
Reach Compliance Code	not_compliant	not_compliant	unknown	unknown
series	ACT	ACT	ACT	ACT
JESD-30 code	R-CDFP-F14	R-CDIP-T14	R-CDFP-F14	S-XUUC-N16
Logic integrated circuit type	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER	PARITY GENERATOR/CHECKER
Number of digits	9	9	9	9
Number of functions	1	1	1	1
Number of terminals	14	14	14	16
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	FLATPACK	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	DUAL	UPPER
Parts packaging code	DFP	DIP	-	DIE
Contacts	14	14	-	16
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
encapsulated code	DFP	DIP	-	DIE
propagation delay (tpd)	24 ns	24 ns	-	24 ns
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	-	MIL-PRF-38535 Class V
Temperature level	MILITARY	MILITARY	MILITARY	-
total dose	300k Rad(Si) V	300k Rad(Si) V	-	300k Rad(Si) V
Base Number Matches	1	1	1	-
