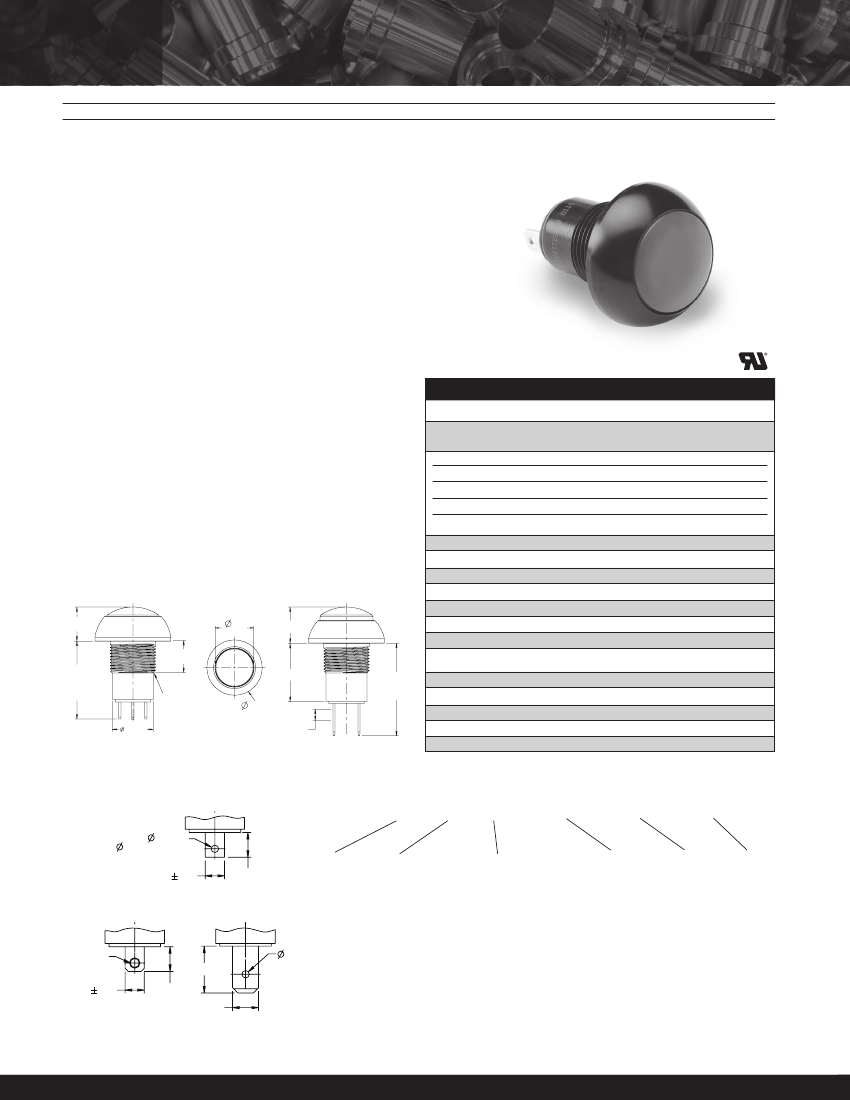

P5-D
ALTERNATE
ACTION
ALTERNATE ACTION DOME PUSHBUTTONS
ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
n
Off” actio
The rugged P5-D switch is an alternate action “push on, push
off” pushbutton switch with contoured dome styling. With
two design versions, a flush dome and raised dome button
profile, the P5-D offers excellent mechanical and electrical
performance while operating under severe conditions found
in demanding applications.
The P5-D features unsealed, dusttight, moistureproof and
watertight seal options. A mechanical life of one million cycles,
25,000 cycles at full load.
The P5-D is a quality precision, snap-action switch designed for
use in panels, instruments and other demanding applications
where attractive, rugged pushbutton switches are required.
, Push
“Push On
Flush Dome Button
Features:
2 contoured button styles
Button sealed with patented “rolling sleeve” principle
Contact area sealed at case & terminals
Less than 25mΩ contact resistance
Handles low level up to 10 amps
Moistureproof & dusttight to IP64 & MIL-PRF-8805
Design 2 or watertight to IP68S options
• Unsealed construction also available
• RoHS/WEEE/Reach compliant
•
•
•
•
•
•
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Motor
DWV
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Sea Level @ 28VDC
or 115VAC, 60/400Hz
10A
5A
1A
3A
1050Vrms
25,000 cycles
1,000,000 cycles
IP64 & MIL-PRF-8805 Design 2 or IP68S
3.0 lbs. +1/-0.5 lb.
0.180 inches max
0.012 inches min
Operating Temp Range:
-55°C to +85°C
.48
.41
TYP.
.73
TYP.
.50
Total Travel:
Overtravel:
1.11 MAX.
TYP.
TERM.
STYLE
#1 & #2
MATERIALS:
.80 TYP.
1.32 MAX.
TYP.
TERM.
STYLE #3
Case:
Button:
Terminals:
Terminal Hardware:
Anodized aluminum alloy
Thermoplastic
Brass with gold over silver
Screws, lockwashers and terminal lugs for screw terminal option
Hex nut, lockwasher
5/8-24 UNEF-2A
TO WITHIN .062
OF FLANGE TYP.
1.05
TYP.
.565 TYP.
BUTTON
STYLE #1
.156 MIN.
FROM
POTTING
BUTTON
STYLE #2
Mounting Hardware:
TERM. STYLES 1
P5-D
X
X
P5-D PART NUMBER CODE
X
X
X
X
.070 OR
.086 HOLE TYP.
.182 .015
.24
Button
Style
1.
Flush
2.
Raised
Terminal
Style/Rating
1.
Solder
2.
Screw
➀
3.
0.250" Quick
Connect
Circuit Form/Contact
Material/Grade
1.
SPST/Silver/Commercial
2.
SPST/Gold/Commercial
3.
SPDT/Silver/Commercial
4.
SPDT/Gold/Commercial
5.
SPST/Silver/Military Grade
6.
SPST/Gold/Military Grade
7.
SPDT/Silver/Military Grade
8.
SPDT/Gold/Military Grade
Seal Level
1.
Unsealed
2.
Dusttight
3.
Watertight
Bezel
Color
1.
Clear
2.
Black
Button
Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Purple
8.
Gray
9.
White
TERM. STYLES 2
TERM. STYLES 3
#2-56UNC-2B
TYP.
.45
.24
TO FIT .250
FASTON
SERIES
.070
HOLE
TYP.
.182 .015
➀
Screw terminals available on SPST circuit forms only.
142
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
