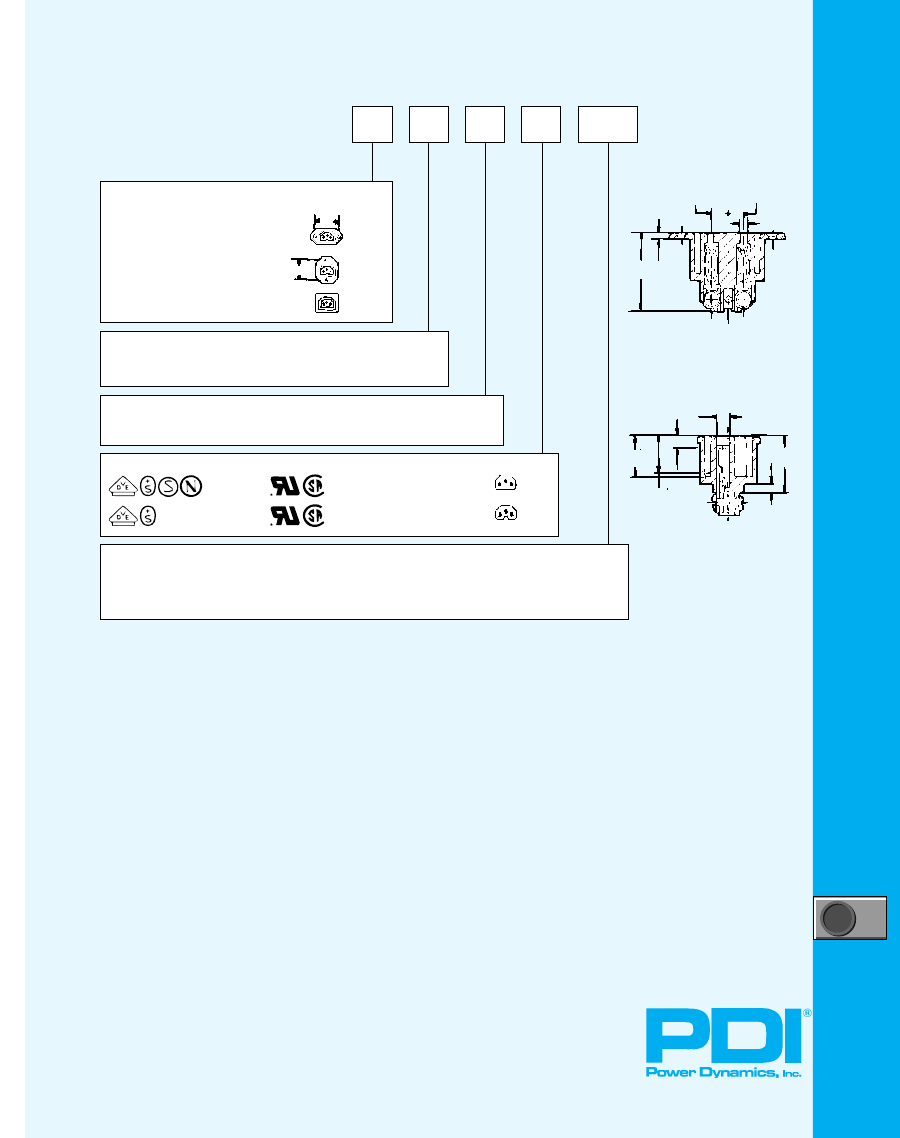

EXAMPLE & ORDERING CODE
43R02 - 3
MECHANICAL MOUNTING CONFIGURATION
.12
1
1
1 - 150
CROSS SECTION
.28
± .002
(7
± 0.05
)
(3)
.28
± .002
(7
± 0.05
)
40
SIDE FLANGE
CROSS FLANGE
SNAP-IN
=1
=2
=3
BLACK
GRAY
1.34
(34)
(2.5
+ 0.3
)
.10
+ .01
32.5
COLOR
Other colors available on special order.
=1
=2
=1
.71 Min.
(18)
SIDE VIEW
CROSS SECTION
(5.7
+ 0.6
)
SCREW TERMINALS
M3 x 6.0mm
.22
+ .02
.20
+ .02
(5
+ 0.5
)
.96
(24.5)
ELECTRICAL CIRCUIT CONFIGURATION
10A
10A
15A 250V 65°C
15A 250V 120°C
=1
=2
.06
(1.5mm)
.08
(2.0mm)
.63 Min.
(16)
.16
(4)
PANEL THICKNESS (SNAP-INS ONLY)
=150
=200
IEC CONNECTORS
IEC CONNECTORS
Additional panel thickness available on request.
General purpose female power cord connector with screw terminals. Rated 15 Amp., 250 VAC,
65°C and 120°C. Designed for versatile mounting. Screw or snap-in panel mount. Three
mounting configurations.
SPECIFICATIONS
MATERIAL AND FINISH:
Housing:
Material: Polycarbonate
Rating: UL 94V-0
Contacts:
Material: Brass
Plating: Nickel
ELECTRICAL SPECIFICATIONS:
Insulation Resistance:
100 Megaohm min. @
500 VDC
Dielectric Strength:
2000 VAC for 1 minute
Specifications subject to change without notice.
(Metric dimensions are shown in parentheses.)
See pages 293-300 for mating power cords.
