800-10-031-20-201000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 800-10-031-20-201000

800-10-031-20-201000: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, PFOA, PFOS, ROHS AND REACH COMPLIANT; CategoryThe connector The connector; File Size399KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

800-10-031-20-201000 Overview

Board Connector, 31 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, PFOA, PFOS, ROHS AND REACH COMPLIANT

800-10-031-20-201000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	31
Base Number Matches	1

Preview

Download Datasheet

View All

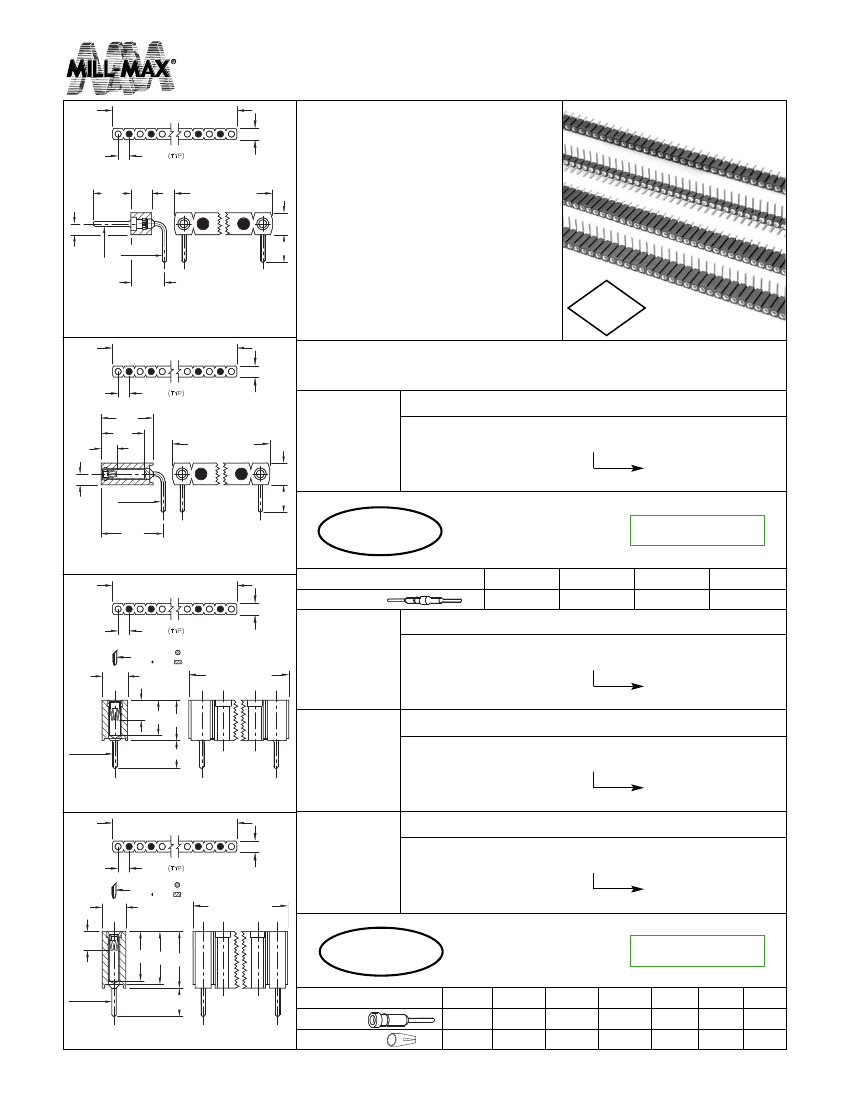

INTERCONNECTS

5,08 Grid (0,76 dia.) Pins, Straight and Right Angle

Single Row

(Number of pins x 5,08) - 2,54

Series 800, 801

2,54

•

Series 800 selectively loaded headers

use MM #5005 pins. See page 182 for

details.

•

Series 801 selectively loaded sockets

use MM #1303, #1304 and #1305 pins.

See pages 148, 149 & 150 for details.

•

Series 801 selectively loaded sockets use

Hi-Rel, 6-finger BeCu #47 contacts rated

at 3 amps. See page 221 for details.

•

Insulators are high temp. thermoplastic,

suitable for all soldering operations.

2002/95/EC

4,95

2,79

(Number of pins

x 5,08) - 2,54

1,27

0,61 DIA.

0,76 DIA.

4,5

2,54

3,2

RoHS

Fig. 1

(Number of pins x 5,08) - 2,54

2,54

7,01

6,1

2,24

(Number of pins

x 5,08) - 2,54

Ordering Information

Series 800...20-201

Right Angle Header

Fig. 1

2,54

3,2

800-10-0_ _-20-201000

Specify # of pins

02-32

For RoHS compliance

select



plating code.

1,27

0,61 DIA.

8,31

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

Fig. 2

(Number of pins x 5,08) - 2,54

PLATING CODE =

2,54



0,25μm Au



Pin Plating

2,54

0,64-0,94

0,64 0,64

2,54

Series 801...20-201

Right Angle Socket

Fig. 2

(Number of pins

x 5,08) - 2,54

801-43-0_ _-20-201000

Specify # of pins

Series 801...20-212

02-25

Straight Socket

2,24

3,71 4,19

0,56 DIA.

3,18

Fig. 3

801-43-0_ _-10-212000

Specify # of pins

Series 801...10-201

02-18

Straight Socket

Fig. 3

(Number of pins x 5,08) - 2,54

2,54

0,64-0,94

0,64 0,64

2,54

Fig. 4

801-43-0_ _-10-201000

Specify # of pins

02-25

For RoHS compliance

select



plating code.

(Number of pins

x 5,08) - 2,54

2,24

6,1 6,55

7,01

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

0,61 DIA.

3,0

PLATING CODE =



5,08µm Sn

0,76µm Au



Sleeve (Pin)

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m



516-922-6000
