240-0304-21PPE: Description21 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, ROHS COMPLIANT; CategoryThe connector The connector; File Size146KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

240-0304-21PPE Overview

21 CONTACT(S), MALE, D MICROMINIATURE CONNECTOR, SOLDER, ROHS COMPLIANT

240-0304-21PPE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-83513
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	240-030
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK
Shell material	ALUMINUM ALLOY
Housing size	C
Termination type	SOLDER
Total number of contacts	21
Base Number Matches	1

Preview

Download Datasheet

View All

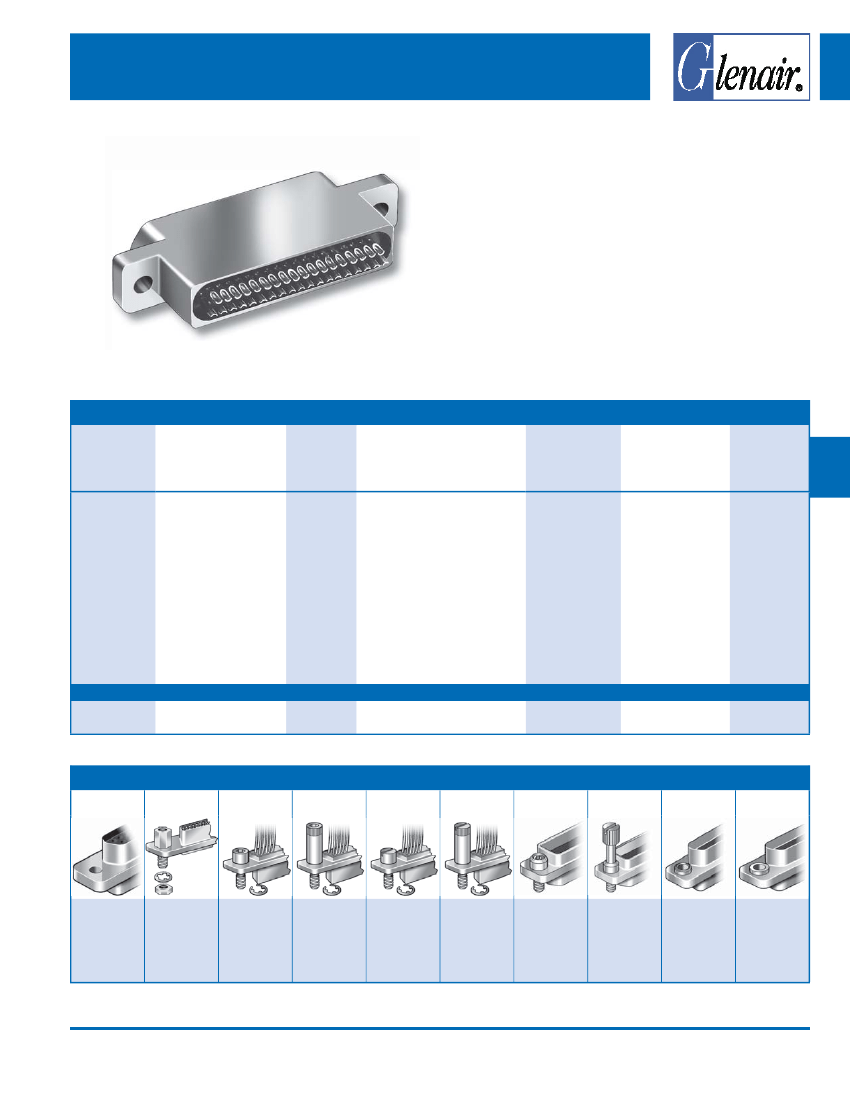

Micro-D Filter Connectors

Solder Cup

Glenair’s Filtered Solder Cup Micro-D's

provide EMI

solutions in a miniaturized M83513 type connector. These

connectors feature ceramic capacitor planar arrays and

ferrite inductors. Solder cups accept #26 thru #30 AWG

wire, or specify oversize contacts for #24 gage wire.

Choose Pi or C Filter Arrays

in seven ﬁlter classes and

six layouts. Glenair ﬁltered Micro-D connectors comply

with applicable MIL-DTL-83513 requirements and are

100% intermateable with standard connectors.

Choose 9 to 37 Contacts,

with standard cadmium or

nickel plating on the connector housing or choose

optional ﬁnishes such as gold or chem ﬁlm.

HOW TO ORDER FILTER MICRO-D CONNECTORS WITH SOLDER CUPS

Number of

Contacts

9

15

21

25

31

37

Series

240-030

Shell Finish

Aluminum Shell

1

–

Cadmium

2

–

Nickel

Contact Type

Solder Cup Contacts for #24

AWG or Smaller Wire

Filter Type

C

–

C Filter

P

–

Pi Filter

Filter Class

A

B

C

D

E

F

G

See “Filter Classes”

on Following Page

Hardware

B

P

M

M1

S

S1

L

K

F

R

4

–

Black Anodize

5

–

Gold

6

–

Chem Film

Stainless Steel Shell

3

–

Passivated

P

–

S

–

Socket

Sample Part Number

240-030

– 2

–

25

P

B

MICRO-D MOUNTING HARDWARE

B

P

M

M1

S

S1

L

K

F

R

Thru-Hole Jackpost Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Jackscrew Float Mount Float Mount

Order

Hardware

Separately

Removable

Includes Nut

and Washer

Hex Head

Removable

E-ring

Hex Head

Removable

E-ring

Extended

Slot Head

Removable

E-ring

Slot Head

Removable

E-ring

Extended

Hex Head

Non-

Removable

Slot Head

Non-

Removable

Extended

For Front

Panel

Mounting

For Rear

Panel

Mounting

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

F-5

E-Mail: sales@glenair.com

Micro-D

Filter

A

B

C

D

E

F

G

H

J

K

L

M

N

P
