B061-1412-179-Z: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size209KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B061-1412-179-Z Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

B061-1412-179-Z Parametric

Parameter Name	Attribute value
body length	0.731 inch
Terminal length	0.138 inch
body width	0.248 inch
subject depth	0.335 inch
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Contact completed and terminated	TIN
Contact style	SQ PIN-SKT
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Is Samacsys	N
Objectid	304393215
Reach Compliance Code	Unknown
ECCN code	EAR99
Total number of contacts	14
Body/casing type	PLUG
insulator material	GLASS FILLED POLYESTER
Number of rows loaded	2
Contact point gender	FEMALE
Installation method	STRAIGHT
Rated current (signal)	3 A
Terminal pitch	2.54 mm
Other features	ROHS COMPLIANT
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact resistance	20 mΩ
Installation type	BOARD
PCB row number	2

Preview

Download Datasheet

View All

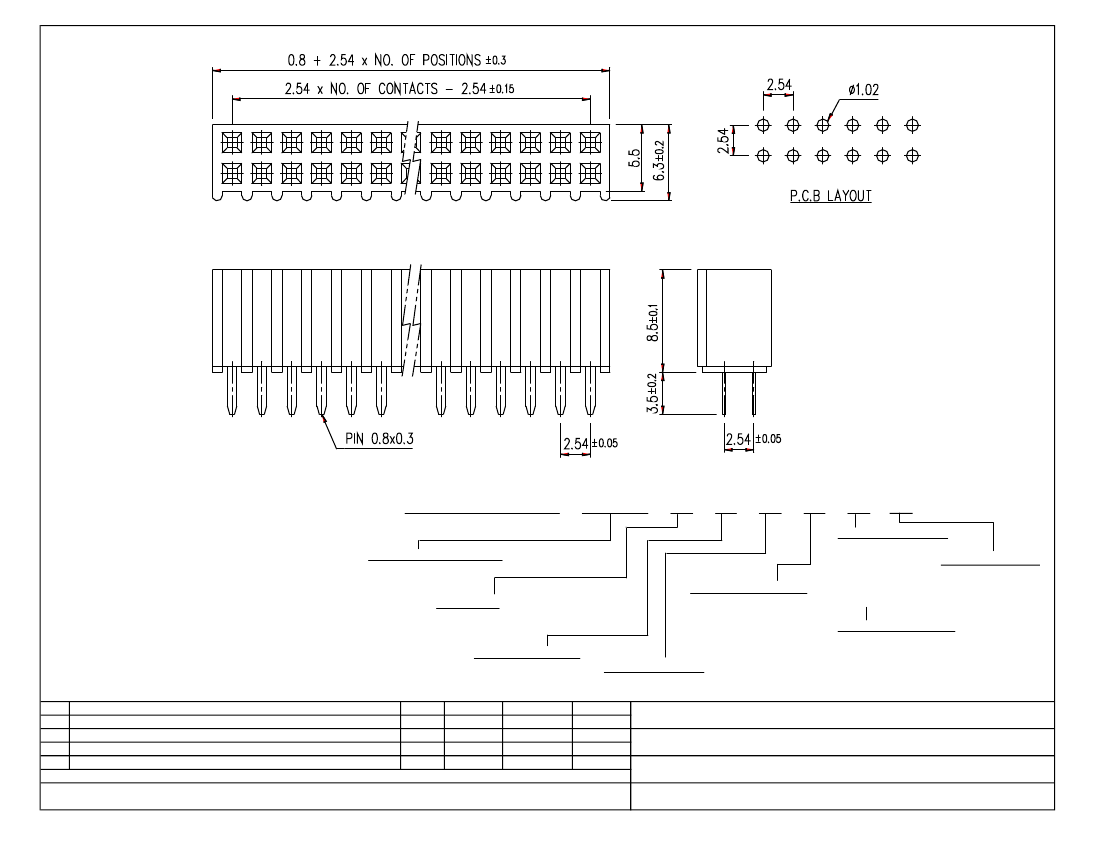

HOW TO ORDER:

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

2 - TWO

Drawn Checked

A.M.

S.M.

B.S.

S.M.

HOUSING DIMESIONS:

8.50mm Height

6.30mm Width

3.50mm Contact Tail

CONTACT STYLE:

1 - CANTILEVER BEAM

PLATING OVERALL:

0 - FULL TIN

RoHS COMPLIANT

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER (UL94V-0)

CONTACT: COPPER ALLOY

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

Date

Appproved

08/25/03

S.M.

12/15/06

S.M.

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.54mm Pitch, Top Entry, Double Row

Cantilever Beam Contact, 8.5mm Height, 6.3mm Width, Thru Hole

ANGLE +/- 5°

UNIT: mm

SERIES: B061

Pg: 1
