SPT38L-223MTB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SPT38L-223MTB

SPT38L-223MTB: DescriptionGeneral Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD, 5656, ROHS COMPLIANT; CategoryPassive components inductor; File Size231KB，3 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

SPT38L-223MTB Overview

General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD, 5656, ROHS COMPLIANT

SPT38L-223MTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	5656
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5656
structure	Rectangular
core material	Powdered Iron
DC Resistance	0.063 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	9.5 mm
Package length	14.35 mm
Package form	SMT
Package width	14.22 mm
method of packing	TR
Maximum rated current	3.8 A
self resonant frequency	18.1 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 280-1

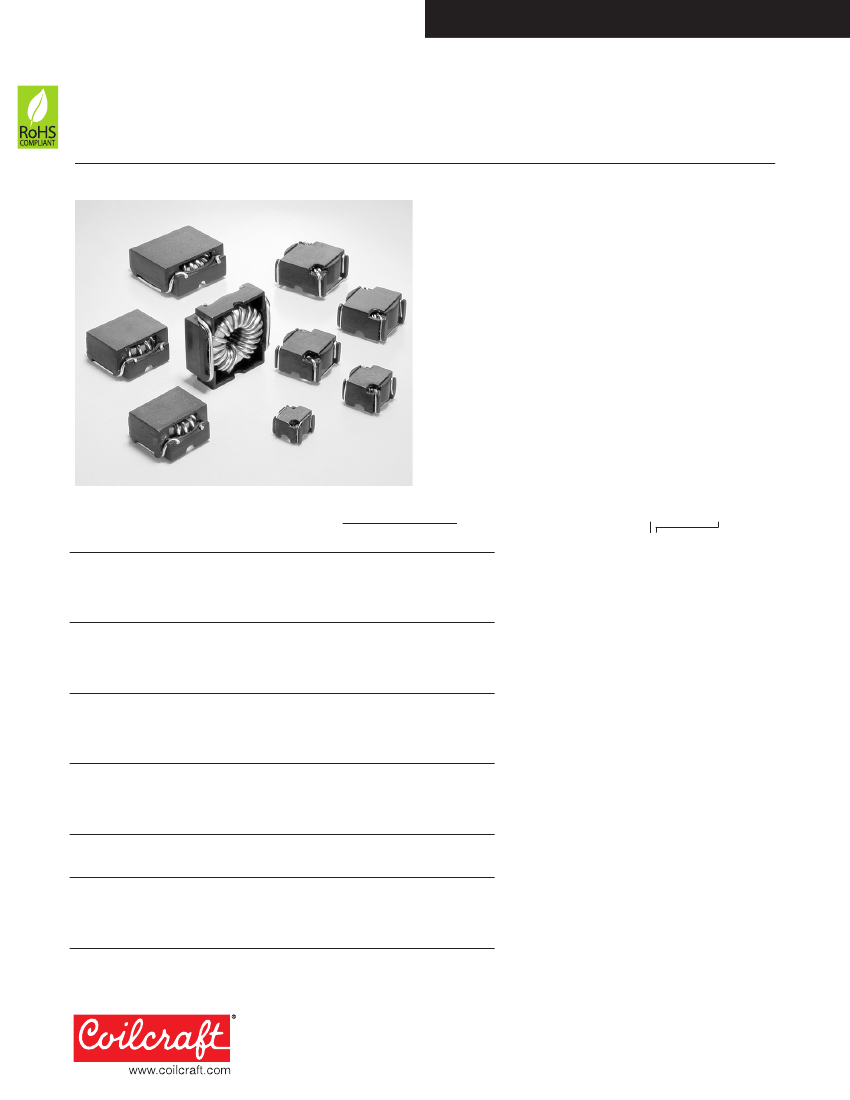

Toroid Power Inductors – SPT Series

• Toroid winding eliminates stray electromagnetic emissions

• Two versions: Standard, current ratings up to 8 Amps; High

current, with ratings up to 12.2 Amp

Core material

Powered iron

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver over copper. Other

terminations available at additional cost.

Ambient temperature

–40°C to +85°C

Maximum part temperature:

The part temperature should not

exceed +85°C (ambient + self-heating). Prolonged operation above

+85°C may result in a permanent increase in core loss and part failure

due to thermal aging of the core material.

Storage temperature

Component: –40°C to +85°C.

Packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

Standard series

SPT20L-112ML_

1.1

SPT38L-382ML_

3.8

SPT30L-522ML_

5.2

SPT20L-702ML_

7.0

SPT38L-752ML_

7.5

SPT44L-792ML_

7.9

SPT30L-123ML_

SPT44L-143ML_

SPT50L-163ML_

SPT38L-223ML_

SPT20L-233ML_

SPT50L-263ML_

SPT30L-353ML_

SPT44L-413ML_

SPT38L-733ML_

SPT50L-733ML_

SPT30L-174ML_

170

SPT38L-294ML_

290

SPT50L-564ML_

560

SPT38L-674ML_

670

SPT44L-115ML_

1100

SPT50L-205ML_

2000

High current series

SPT44H-282ML_

2.8

SPT44H-422ML_

4.2

SPT50H-652ML_

6.5

SPT50H-842ML_

8.4

SPT68H-113ML_

SPT68H-183ML_

±20%

(µH)

DCR

max

(mOhm)

16.0

9.3

24.2

95.0

22.8

16.2

54.7

23.6

19.7

320

166

290

133

640

657

550

1200

1908

1932

4.6

6.6

7.2

8.5

8.2

12.5

SRF

typ

(MHz)

130

23.9

15.6

14.3

18.1

13.5

11.2

11.0

8.30

10.8

4.56

3.84

2.87

1.54

1.38

1.35

27.3

22.8

25.9

12.0

10%

drop

3.2

4.0

2.8

1.2

2.7

3.5

1.9

2.8

1.5

0.6

2.3

1.1

1.6

0.81

1.4

0.44

0.41

0.37

0.26

0.25

0.18

5.8

5.0

4.6

4.3

4.8

3.9

Isat

(A)

20% 30% Body

drop drop size

4.8

6.1

4.2

1.8

4.2

5.4

2.8

4.1

4.2

2.3

1.0

3.4

1.6

2.3

1.3

2.0

0.68

0.64

0.59

0.40

0.41

0.29

8.8

7.8

6.7

6.4

7.2

5.7

6.7

8.2

5.8

2.5

5.8

7.3

3.7

5.7

5.8

3.1

1.3

4.6

2.2

3.1

1.7

2.7

0.95

0.90

0.81

0.55

0.57

0.41

12.2

10.9

9.1

8.5

9.9

7.7

1. When ordering, specify

termination

and

packaging

codes:

SPT20L-112MLD

Termination: L

= RoHS compliant tin-silver over copper.

Special order:

= RoHS tin-silver-copper (95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: D

13″ machine-ready reel

EIA-481 embossed plastic tape.

Body size 1:

750 per full reel.

Body sizes 2–3: 350 per full reel.

Body size 4:

300 per full reel.

Body sizes 5–6: 250 per full reel.

Body sizes 7–8: 200 per full reel.

Less than full reel

In tape, but not machine ready. To have

a leader and trailer added ($25 charge),

use code letter D instead.

2. Inductance tested at 100 kHz, 0.1 Vrms on Agilent/

HP 4192A.

3. SRF measured on Agilent/HP 8753ES network analyzer.

4. DC current that causes the specified inductance drop

from its value without current.

5. Electrical specifications at 25°C.

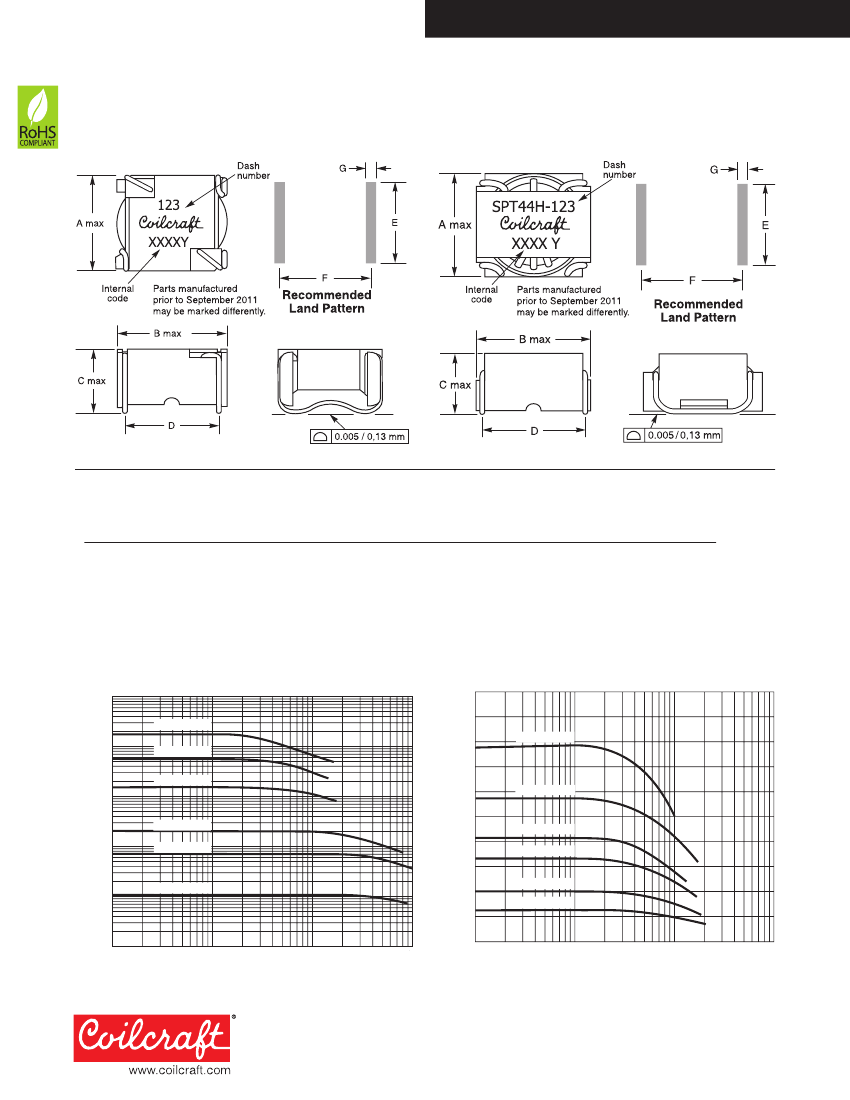

Refer to Doc 362 “Soldering Surface Mount Components” before

soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

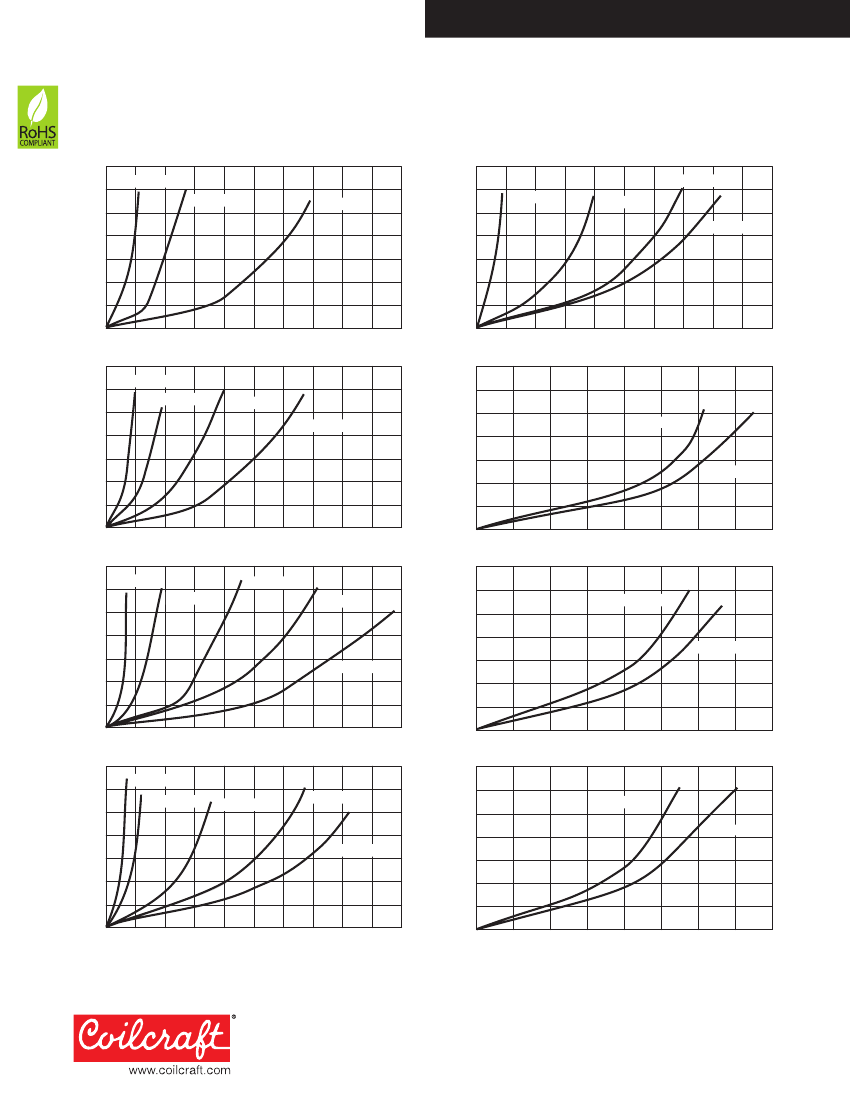

Document 280-1

Revised 12/09/10

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
