534047-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 534047-8

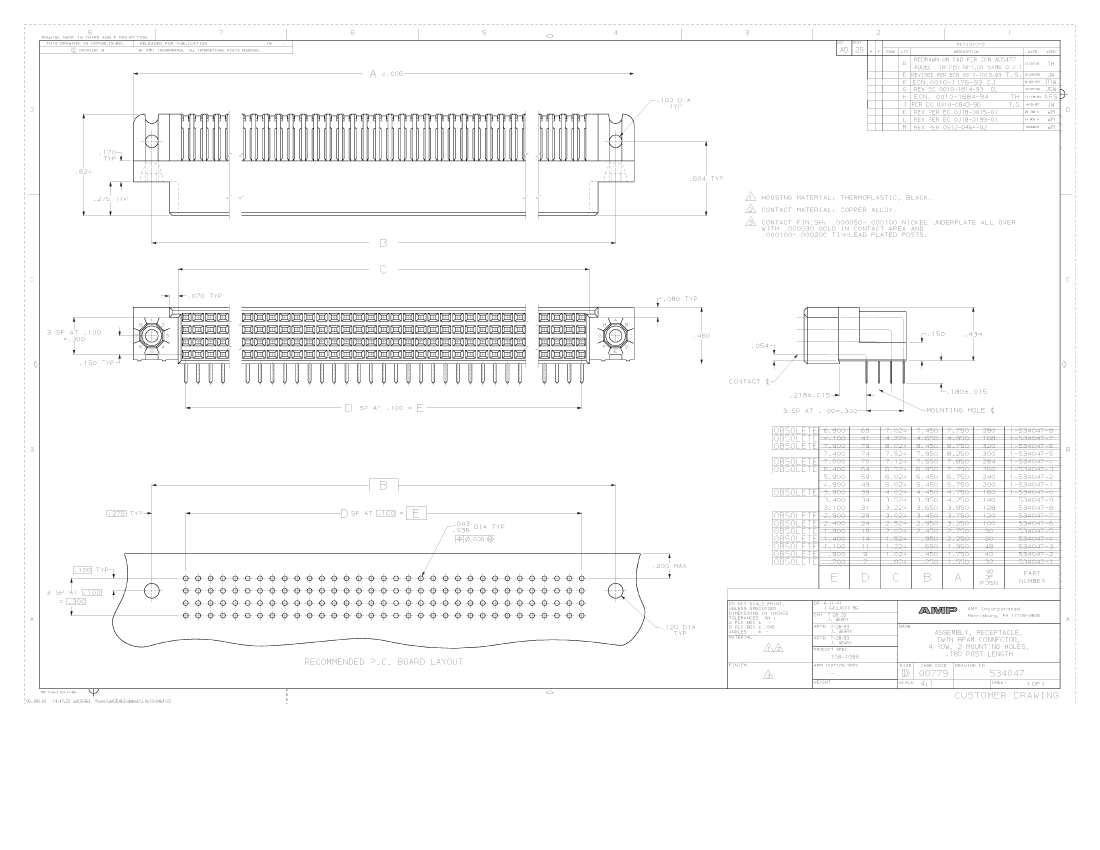

534047-8: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,HOLE .099-.111,BROWN; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

534047-8 Overview

HEADER CONNECTOR,PCB MNT,PLUG,128 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,HOLE .099-.111,BROWN

534047-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Board mount options	#2-56 THD HOLE
body width	0.46 inch
subject depth	0.824 inch
body length	3.95 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	900VAC V
maximum insertion force	.6672 N
Insulator color	BROWN
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	534047
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
Evacuation force-minimum value	1.39 N
Base Number Matches	1
