ACPL-P302/W302
0.4 Amp Output Current IGBT Gate Driver Optocouplers
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The ACPL-P302/W302 consists of a GaAsP LED optically
coupled to an integrated circuit with a power output stage.
These optocouplers are ideally suited for driving power
IGBTs and MOSFETs used in motor control inverter applica-
tions. The high operating voltage range of the output stage
provides the drive voltages required by gate controlled de-
vices. The voltage and current supplied by this optocoupler
makes it ideally suited for directly driving small or medium
power IGBTs.
Features
•
High speed response.
•
Ultra high CMR.
•
Bootstrappable supply current.
•
Available in Stretched SO-6 package
•
Package Clearance/Creepage at 8mm (ACPL-W302)
•
Safety Approval:
UL Recognized with 3750 V
rms
for 1 minute per
UL1577.
CSA Approved.
IEC/EN/DIN EN 60747-5-2 Approved with
V
IORM
= 630V
peak
for option 060.
Applications
•
Isolated IGBT/Power MOSFET gate drive
•
AC and brushless DC motor drives
•
Industrial inverters
•
Inverter for home appliances
•
Induction cooker
•
Switching Power Supplies (SPS)
Specifications
•
0.4 A maximum peak output current.
•
0.2 A minimum peak output current.
•
0.7 µs maximum propagation delay over temperature
range.
•
I
CC(max)
= 3 mA maximum supply current.
6 V
CC
5 V
O
Functional Diagram
ANODE 1
N.C. 2
CATHODE 3
Truth Table
LED
OFF
ON
VO
LOW
HIGH
SHIELD
•
10 kV/µs minimum common mode rejection (CMR) at
V
CM
= 1000 V.
•
Wide V
CC
operating range: 10 V to 30 V over tempera-
ture range.
•
Wide operating temperature range: –40°C to 100°C.
4 V
EE
Note: A 0.1 µF bypass capacitor
must be connected between pins
V
CC
and V
EE
.
CAUTION: IT Is AdvIsed ThAT NOrmAl sTATIC preCAUTIONs be TAkeN IN hANdlINg ANd Assembly
Of ThIs COmpONeNT TO preveNT dAmAge ANd/Or degrAdATION whICh mAy be INdUCed by esd.
Ordering Information
ACPL-P302 and ACPL-W302 are UL Recognized with 3750 Vrms for 1 minute per UL1577.
Option
Part number
ACPL-P314
ACPL-W314
RoHS Compliant
-000E
-500E
-060E
-560E
Stretched SO-6
Package
Surface
Mount
X
X
X
X
X
X
X
X
Tape
& Reel
IEC/EN/DIN EN
60747-5-2
Quantity
100 per tube
1000 per reel
100 per tube
1000 per reel
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
ACPL-P302-560E to order product of Stretched SO-6 Surface Mount package in Tape and Reel packaging with IEC/EN/
DIN EN 60747-5-2 Safety Approval in RoHS compliant.
Example 2:
ACPL-P302-000E to order product of Stretched SO-6 Surface Mount package in tube packaging and RoHS compli-
ant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 2001 and RoHS
compliant option will use ‘-XXXE‘.
Package Outline Drawings
ACPL-P302 Stretched SO-6 Package, 7mm clearance
4.580
0.38±0.127
[.015±.005]
1.27[.050] BSG
+0.254
0
+.010
.180 - .000
Land Pattern
Recommendation
10.7[.421]
2.16[.085]
7.62 .300
6.81 .268
0.45
.018
7.00
45.00
A
7.00
1±.0.250
[.040±.010]
0.20±0.10
[.008±.004]
9.7±0.250 [.382±.010]
3.180±0.127
[.125±.005]
7.00
7.00
1.590±0.127
[.063±.005]
0.20[.008]
Dimensions in Millimeters [Inches]
Coplanarity = 0.1mm [0.004 inches]
2

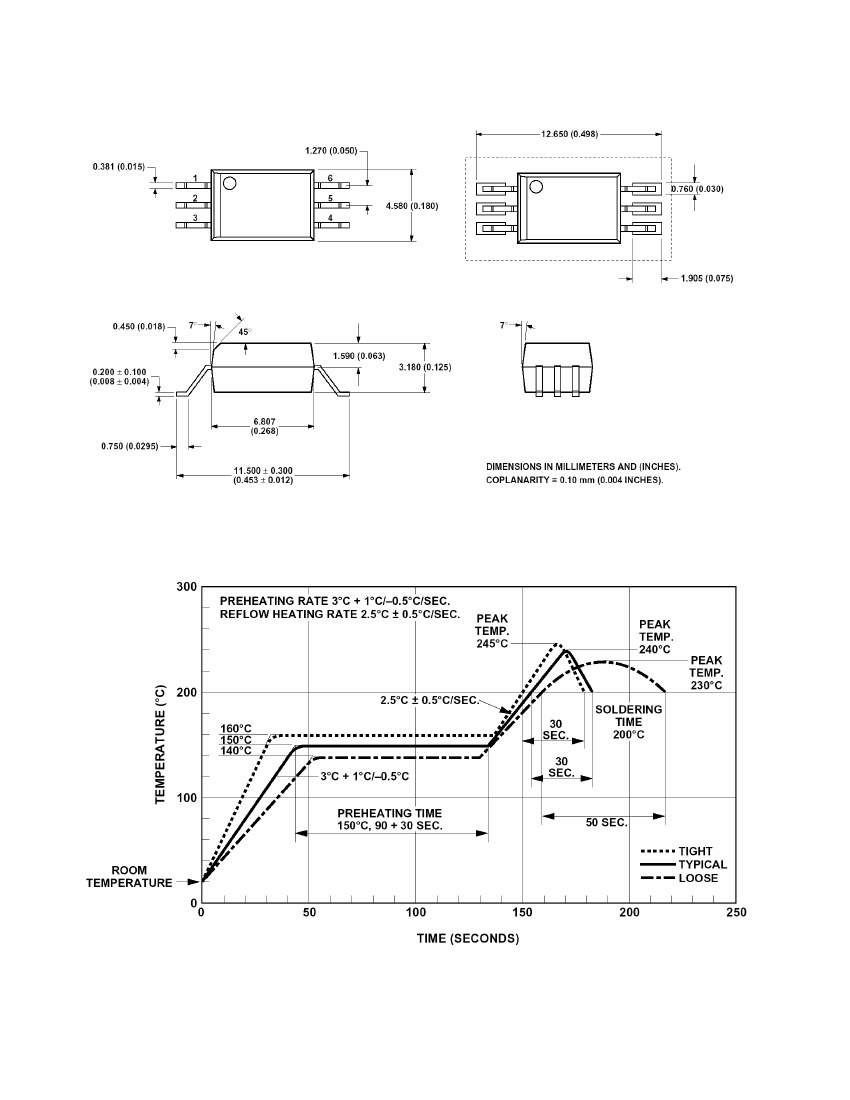

ACPL-W302 Stretched SO-6 Package
Recommended Solder Reflow Temperature Profile
Note: Non-halide flux should be used
3

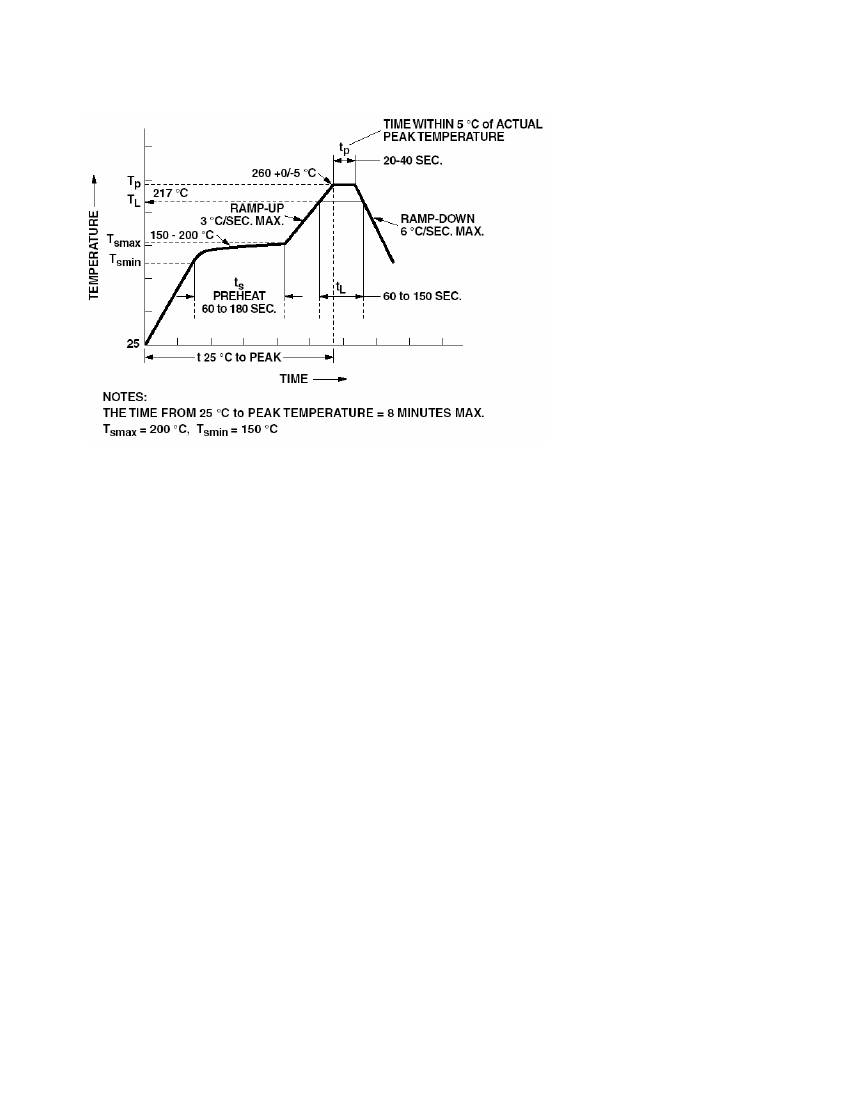

Recommended Pb-Free IR Profile
Note: Non-halide flux should be used
Regulatory Information
The ACPL-P302/W302 is pending approval by the following organizations:
IEC/EN/DIN EN 60747-5-2 (Option 060 only)
Approval under:
IEC 60747-5-2 :1997 + A1:2002
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884 Teil 2):2003-01
UL
Approval under UL 1577, component recognition pro-
gram up to V
ISO
= 3750 V
RMS
. File E55361.
CSA
Approval under CSA Component Acceptance Notice #5,
File CA 88324.
4
Table 1. IEC/EN/DIN EN 60747-5-2 Insulation Characteristics* (ACPL-P302/W302 Option 060)
Description
Installation classification per DIN VDE 0110/1.89, Table 1
for rated mains voltage
≤
150V
rms
for rated mains voltage
≤
300V
rms
for rated mains voltage
≤
600V
rms
Climatic Classification
Pollution Degree (DIN VDE 0110/1.89)
Maximum Working Insulation Voltage
Input to Output Test Voltage, Method b*
V
IORM
x 1.875=V
PR
, 100% Production Test with t
m
=1 sec, Partial discharge < 5 pC
Input to Output Test Voltage, Method a*
V
IORM
x 1.5=V
PR
, Type and Sample Test, t
m
=60 sec, Partial discharge < 5 pC
Highest Allowable Overvoltage (Transient Overvoltage t
ini
= 10 sec)
Safety-limiting values - maximum values allowed in the event of a failure.
Case Temperature
Input Current**
Output Power**
Insulation Resistance at T
S
, V
IO
= 500 V
*
Refer to the optocoupler section of the Isolation and Control Compo-
nents Designer’s Catalog, under Product Safety Regulations section,
(IEC/EN/DIN EN 60747-5-2) for a detailed description of Method a and
Method b partial discharge test profiles.
Symbol
Characteristic
I - IV
I - III
I - II
55/100/21
2
Unit
V
IORM
V
PR
V
PR
V
IOTM
T
S
I
S, INPUT
P
S, OUTPUT
R
S
630
1181
945
6000
175
230
600
>10
9
V
peak
V
peak
V
peak
V
peak
°C
mA
mW
** Refer to the following figure for dependence of P
S
and I
S
on ambient
temperature.
Table 2. Insulation and Safety Related Specifications
Parameter
Minimum External Air Gap
(External Clearance)
Minimum External Tracking
(External Creepage)
Minimum Internal Plastic Gap
(Internal Clearance)
Minimum Internal Tracking
(Internal Creepage)
Tracking Resistance
(Comparative Tracking Index)
Isolation Group
CTI
Symbol
L(101)
L(102)
ACPL-P302
7.0
8.0
0.08
ACPL-W302
8.0
8.0
0.08
Units
mm
mm
mm
Conditions
Measured from input terminals to output
terminals, shortest distance through air.
Measured from input terminals to output
terminals, shortest distance path along body.
Through insulation distance conductor to
conductor, usually the straight line distance
thickness between the emitter and detector.
Measured from input terminals to output
terminals, along internal cavity.
DIN IEC 112/VDE 0303 Part 1
Material Group (DIN VDE 0110, 1/89, Table 1)
NA
>175
IIIa
NA
>175
IIIa
mm
V
5
