794611-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 794611-1

794611-1: DescriptionMICRO MNL RPT CNT,LS PC,TIN; CategoryThe connector Connector bracket; File Size184KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

794611-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	794611-1	-	-	View	Buy Now

794611-1 Overview

MICRO MNL RPT CNT,LS PC,TIN

794611-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Other features	UNDERPLATING THICKNESS (50), TERMINATION PLATING THICKNESS (157.5)
Assembly name	CONTACT
Maximum number of cable entries	0.06 inch
Minimum cable entry	0.035 inch
Cable type	DISCRETE WIRE
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
DIN compliance	NO
designed usage	POWER
Finished thickness	157
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current	5 A
Rated voltage (DC)	250 V
Terminal type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

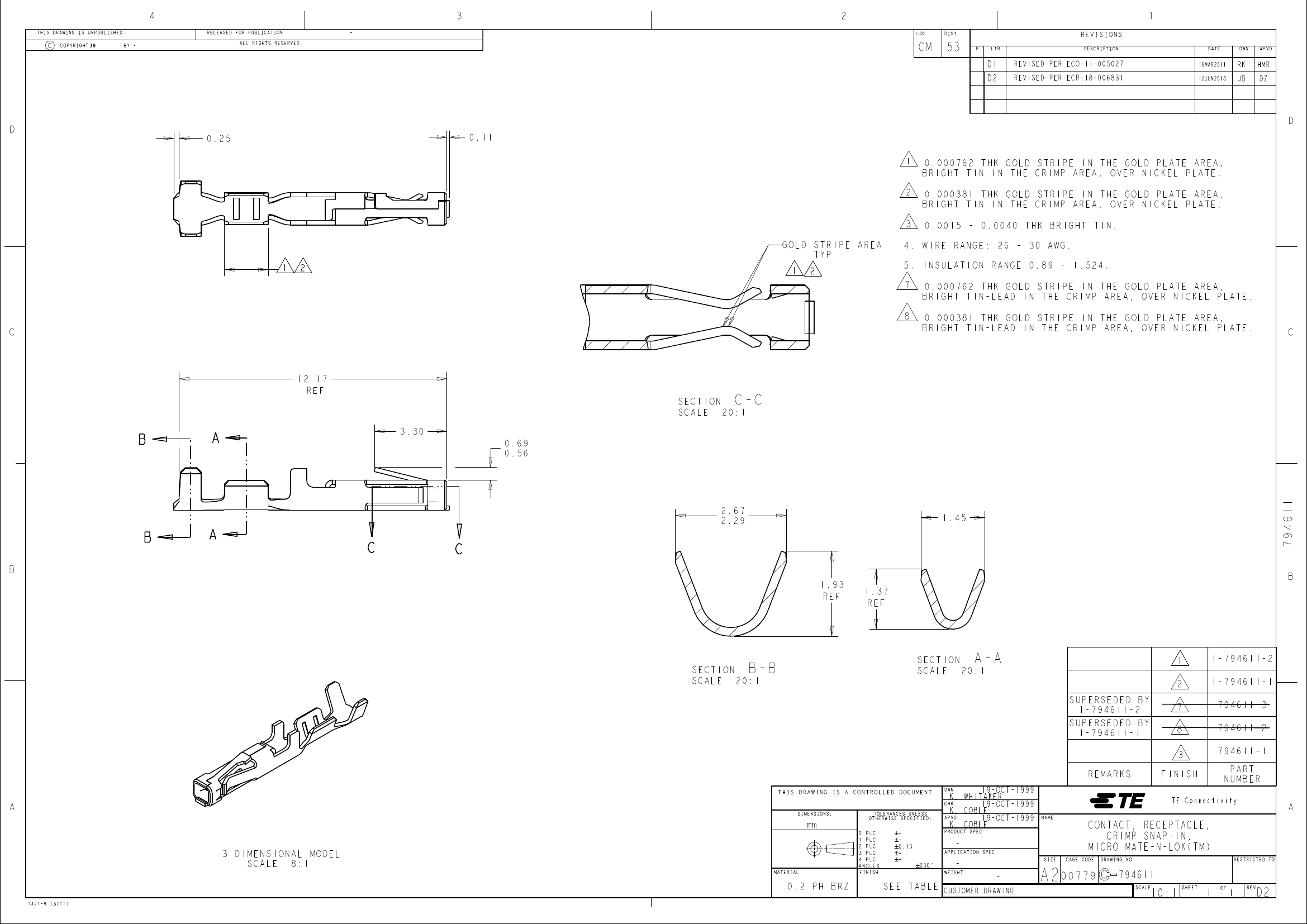

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-11-005027

REVISED PER ECR-18-006831

16MAR2011

12JUN2018

HMR

0.25

0.11

GOLD STRIPE AREA

TYP

0.000762 THK GOLD STRIPE IN THE GOLD PLATE AREA,

BRIGHT TIN IN THE CRIMP AREA, OVER NICKEL PLATE.

0.000381 THK GOLD STRIPE IN THE GOLD PLATE AREA,

BRIGHT TIN IN THE CRIMP AREA, OVER NICKEL PLATE.

0.0015 - 0.0040 THK BRIGHT TIN.

4. WIRE RANGE: 26 - 30 AWG.

5. INSULATION RANGE 0.89 - 1.524.

0.000762 THK GOLD STRIPE IN THE GOLD PLATE AREA,

BRIGHT TIN-LEAD IN THE CRIMP AREA, OVER NICKEL PLATE.

0.000381 THK GOLD STRIPE IN THE GOLD PLATE AREA,

BRIGHT TIN-LEAD IN THE CRIMP AREA, OVER NICKEL PLATE.

12.17

REF

C-C

SECTION

SCALE

20:1

3.30

0.69

0.56

1.45

1.93

REF

1.37

REF

B-B

SECTION

SCALE

20:1

A-A

SECTION

SCALE

20:1

SUPERSEDED BY

1-794611-2

REMARKS

FINISH

1- 794611 -2

1- 794611 -1

794611 -3

794611 -2

794611 -1

PART

NUMBER

SUPERSEDED BY

1-794611-1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

3 DIMENSIONAL MODEL

SCALE

8:1

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

19-OCT-1999

K. WHITAKER

CHK

19-OCT-1999

K. COBLE

APVD

19-OCT-1999

K. COBLE

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

030'

WEIGHT

0.2 PH BRZ

1471-9 (3/11)

SEE TABLE

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

CONTACT, RECEPTACLE,

CRIMP SNAP-IN,

MICRO MATE-N-LOK(TM)

DRAWING NO

RESTRICTED TO

794611

SCALE

10:1

SHEET

REV

794611

2.67

2.29
