Part Number

Search

5767114-6

Description
MICT,REC,228,ASY,.025,TAPE,CAP
CategoryThe connector
File Size303KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5767114-6 Online Shopping

Suppliers Part Number Price MOQ In stock
5767114-6 - - View Buy Now

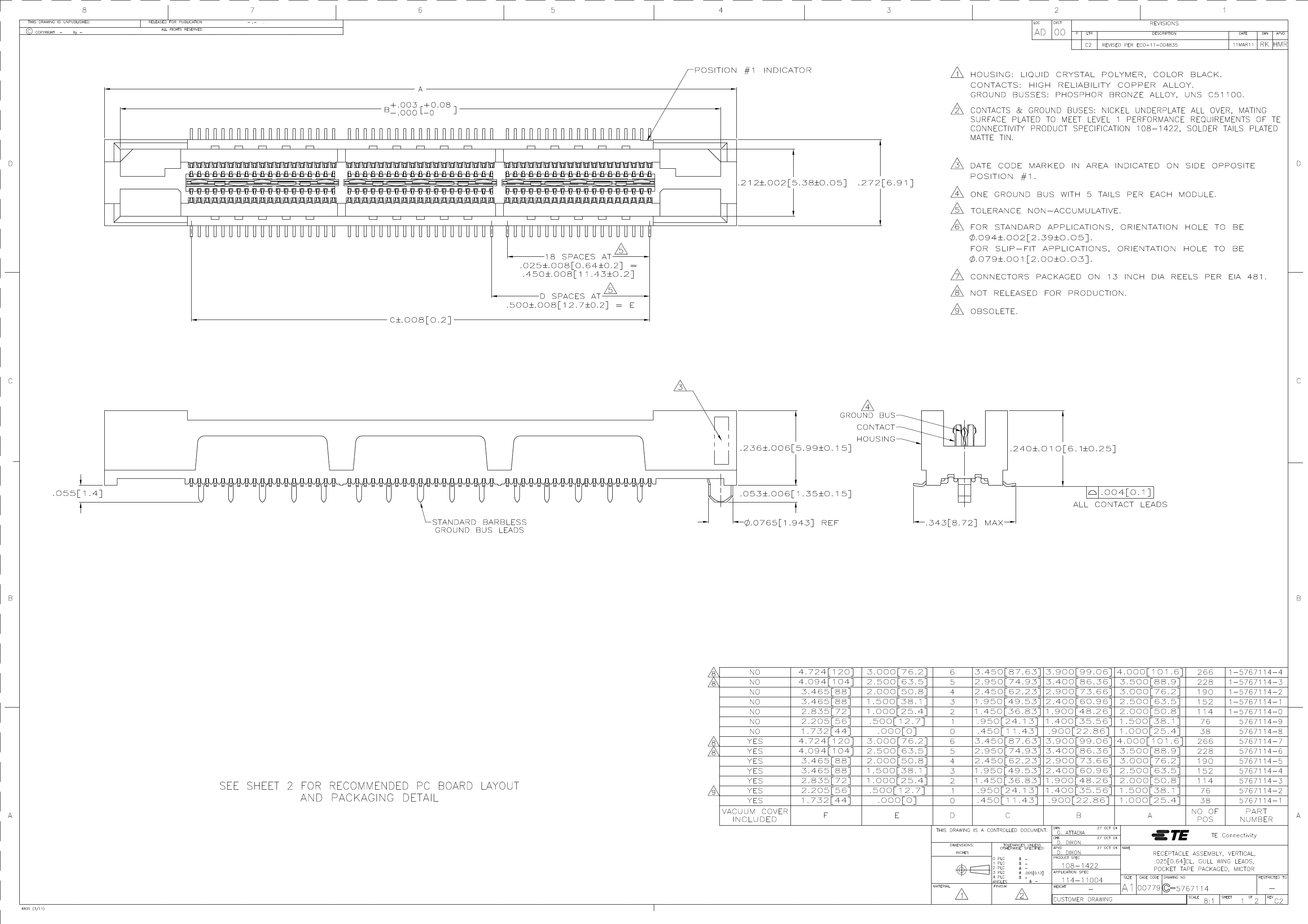

5767114-6 Overview

MICT,REC,228,ASY,.025,TAPE,CAP

5767114-6 Parametric

Parameter NameAttribute value
PCB Connector Component TypesPCB mounting female terminal
Connector SystemBoard to Board
Sealableno
Connectors and terminals terminate toA printed circuit board
seriesMICTOR
Ground element typeGround bus
lugsyes
Number of signal positions228
Stackableyes
Number of columns114
Number of power supply locations6
PCB mounting directionvertical
Number of Positions228
Board-to-board configurationmezzanine
Rows2
Impedance (Ω)228
Dielectric withstand voltage (VAC)500
Voltage (VDC)6
Voltage (VAC)30
Insulation resistance (MΩ)2
Data rate (Gb/s)10
Differential signalingyes
Plating thickness of bus bar bonding area500
Terminal base materialcopper alloy
PCB terminal termination area plating materialstin
Terminal configurationdouble beam, double beam
Solder tail terminal plating material surface coatingmatte
Terminal contact plating materialgold
Terminal contact plating thickness.76 µm [ 29.9212 µin ]
Terminal typesocket
Contact Current Rating (Max) (A)11.5
Terminal contact part plating material surface coatingmatte
Terminal layoutDirect plug-in
PCB terminal termination area plating thickness3.81 – 6.35 µm [ 149.9997 – 249.9995 µin ]
PCB Termination Methodssurface mount
joint alignmentwith
Joint alignment typepolarization
PCB installation and fixationWithout
PCB mounting alignmentwith
Connector mounting typeboard mounting
PCB Mount Alignment TypeLocating lugs
joint fixationWithout
Centerline (Pitch).64 mm [ .025 in ]
Shell materialmatte
Shell entry methodtop
Stacking height (mm)6.6, 9, 10.92, 12.57, 15.62, 17.96, 18, 18.75, 20, 21.6, 22.86, 27, 27.8, 29, 31.9
stack height (in)1.255
PCB thickness (recommended)1.57 mm [ .76 in ]
Joint post length1.6285 mm [ .064 in ]
high5.99 mm [ .236 in ]
Tail length (mm).76
length88.9 mm [ 3.5 in ]
width5.2832 mm [ .208 in ]
Working group temperature range-55 – 125 °C [ -67 – 257 °F ]

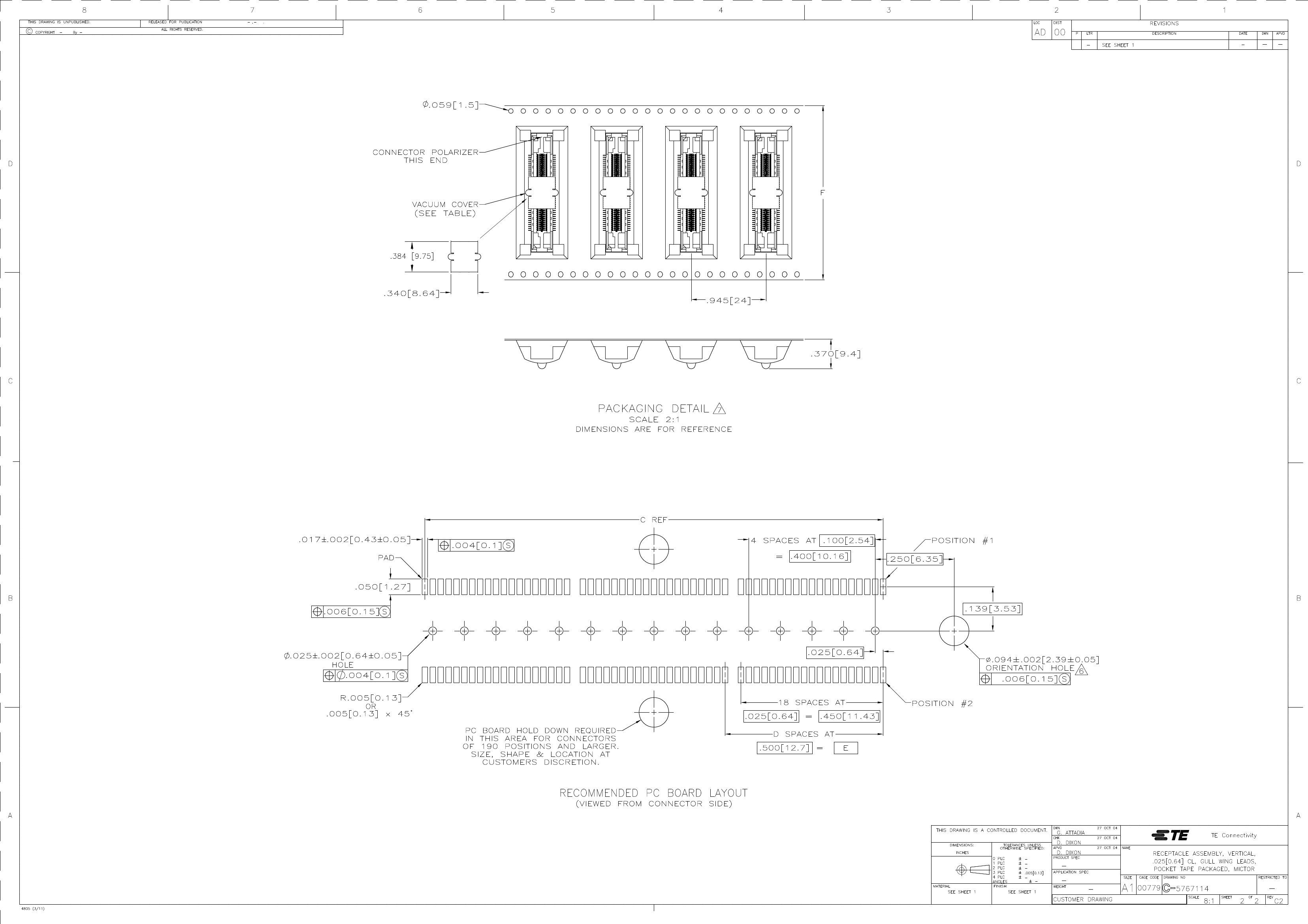

Assembly process characteristicsVacuum cover
pick and place coverWithout
Circuit ApplicationSignal
Applicable toplug
UL flammability ratingUL 94V-0
Obtain CSA certificationyes
UL ratingCertified
Agencies/StandardsCSA
CSA file number1195944
UL file numberE28476
Encapsulation methodroll
Package quantity252

5767114-6 Related Products

5767114-6 5767114-1
Description MICT,REC,228,ASY,.025,TAPE,CAP MICT,REC,038,ASY,.025,TAPE,CAP
