LM1206HP180MF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LM1206HP180MF

LM1206HP180MF: DescriptionGeneral Purpose Inductor,; CategoryPassive components inductor; File Size4MB，10 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/

Download Datasheet Parametric View All

LM1206HP180MF Overview

General Purpose Inductor,

LM1206HP180MF Parametric

Parameter Name	Attribute value
Is Samacsys	N
Objectid	7015632795
Reach Compliance Code	Unknown
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR

Preview

Download Datasheet

View All

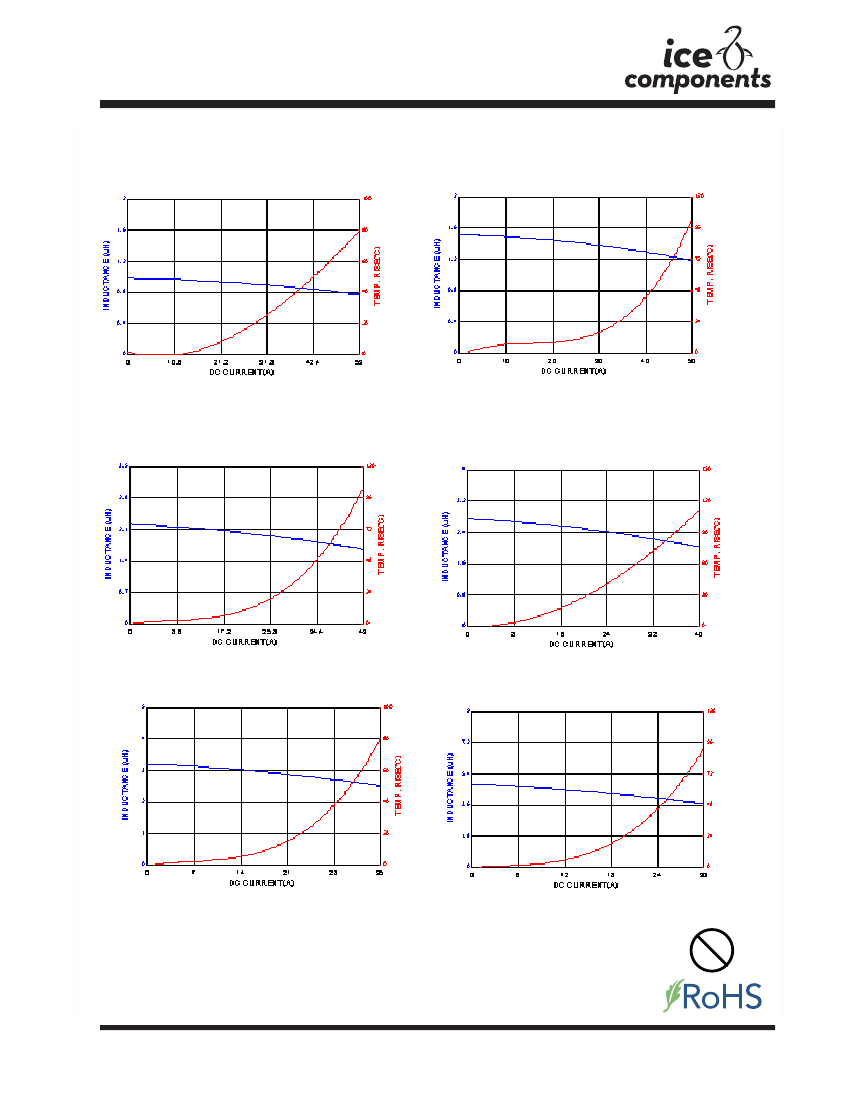

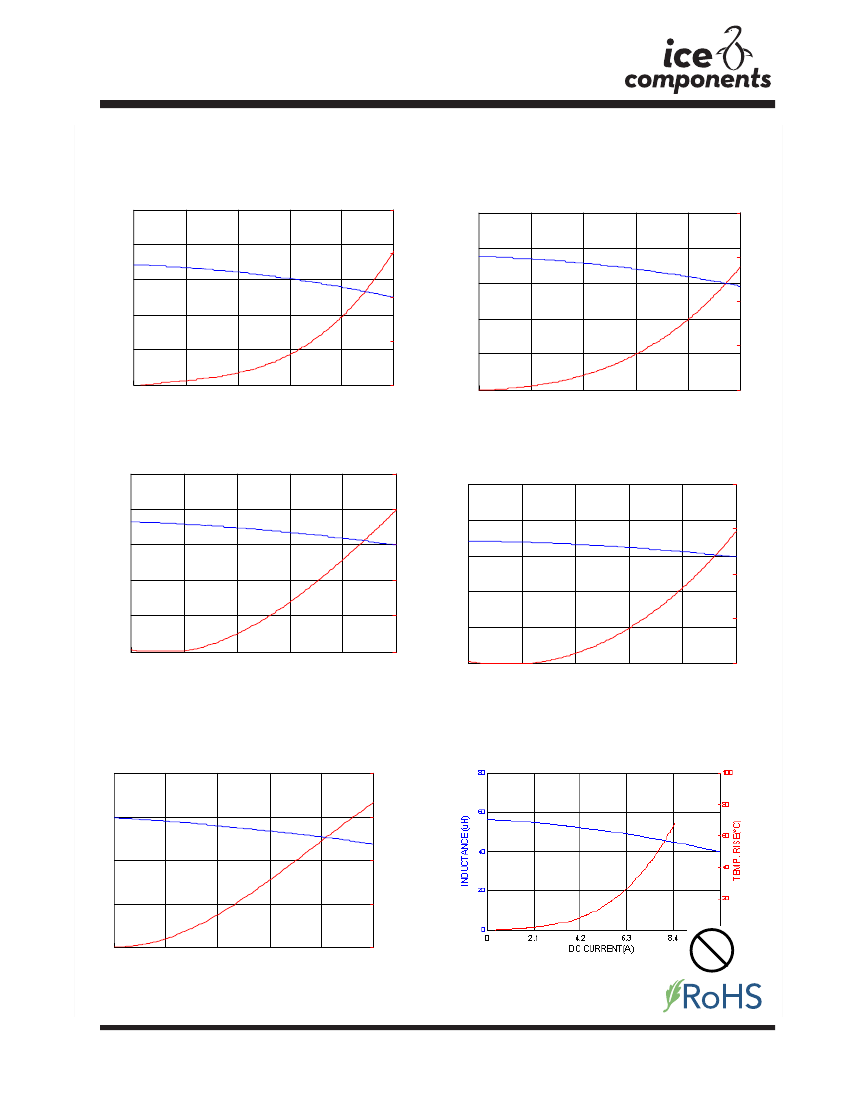

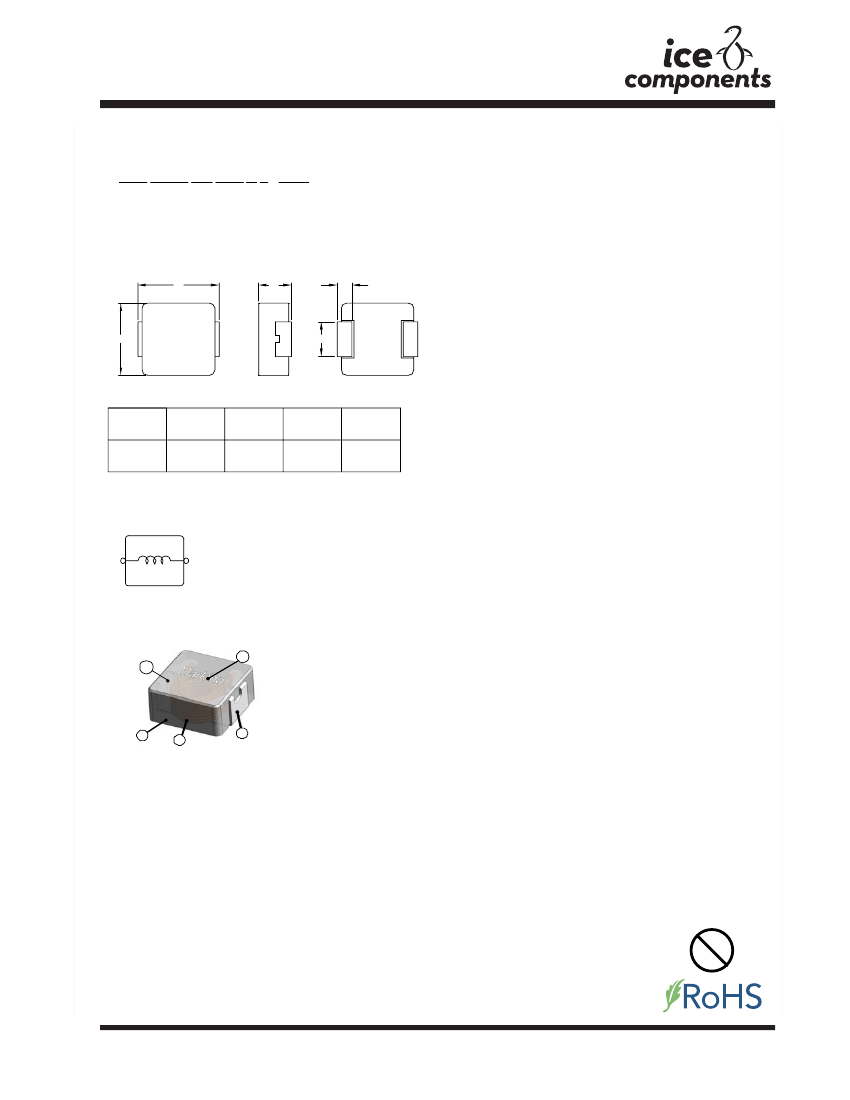

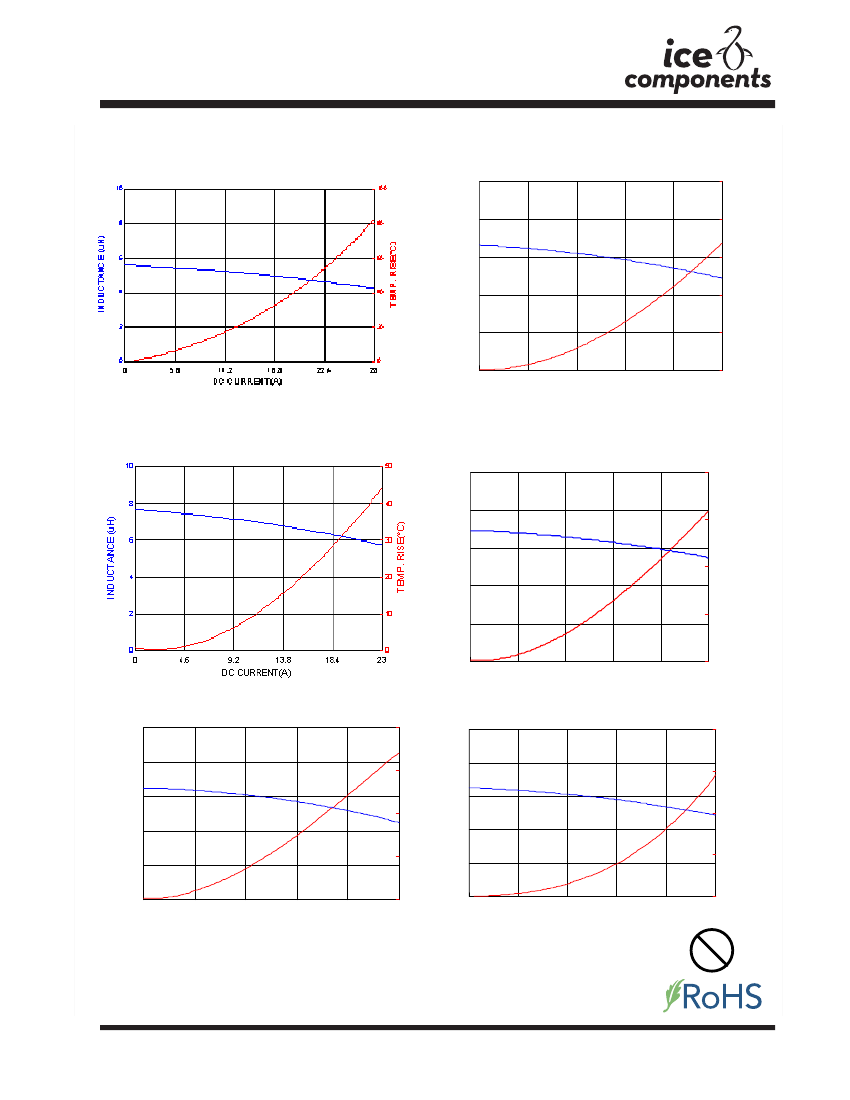

LM1206HP Series

SMD Power Choke Coil

1. PART NO. EXPRESSION :

PIC1206HP Series

1 2 0 6 H P 3 3 0 M F -

□ □

(a)

(b)

(c)

(d)

(e)(f)

(g)

(a) Series code

(b) Dimension code

(d) Inductance code : 330 = 33.0uH

(e) Tolerance code : M = ±20%

(f) F : RoHS Compliant

(g) 11~99 : Internal controlled number

2. CONFIGURATION & DIMENSIONS :

330

1150

Unit:m/m

13.5±0.5

12.5±0.3

5.7±0.3

2.3±0.3

4.7±0.3

3. SCHEMATIC :

4. MATERIALS :

(a) Core : Carbonyl Powder.

(b) Wire : Polyester Wire or equivalent

(d) Ink : Halogen-free ketone

(e) Paint : Epoxy resin

5. GENERAL SPECIFICATION :

a) Test Freq. : L : 100KHz/1.0V

b) Ambient Temp. : 25°C

c) Operating Temp. : -40°C to +125°C

d) Storage Temp. : -10°C to + 40°C

e) Humidity Range : 50 ~ 60% RH (Product without taping)

f) Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1min.)

g) Saturation Current (Isat 1) will cause L0 to drop 20% typical. (keep quickly).

Saturation Current (Isat 2) will cause L0 to drop 30% typical. (keep quickly)

h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125°C under worst case operating conditions.

NOTE : Specifications subject to change without notice. Please check our website for latest information.

(01/14) LM1206HP-1

04.01.2013

800.729.2099 tel

SUPERWORLD ELECTRONICS (S) PTE LTD

www.icecomponents.com

PG. 1
