5962-01-146-9139 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-146-9139

5962-01-146-9139: DescriptionIC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size146KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-146-9139 Overview

IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter

5962-01-146-9139 Parametric

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Converter type	D/A CONVERTER
Enter bit code	BINARY
JESD-30 code	R-XDIP-T16
Maximum linear error (EL)	0.29%
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum stabilization time	3 µs
Maximum slew rate	25 mA
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

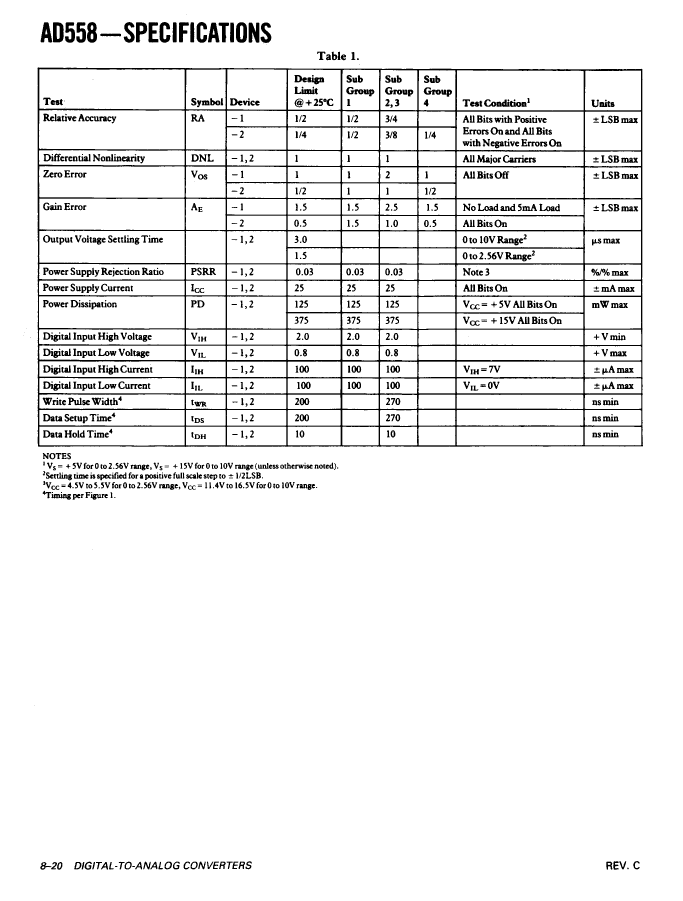

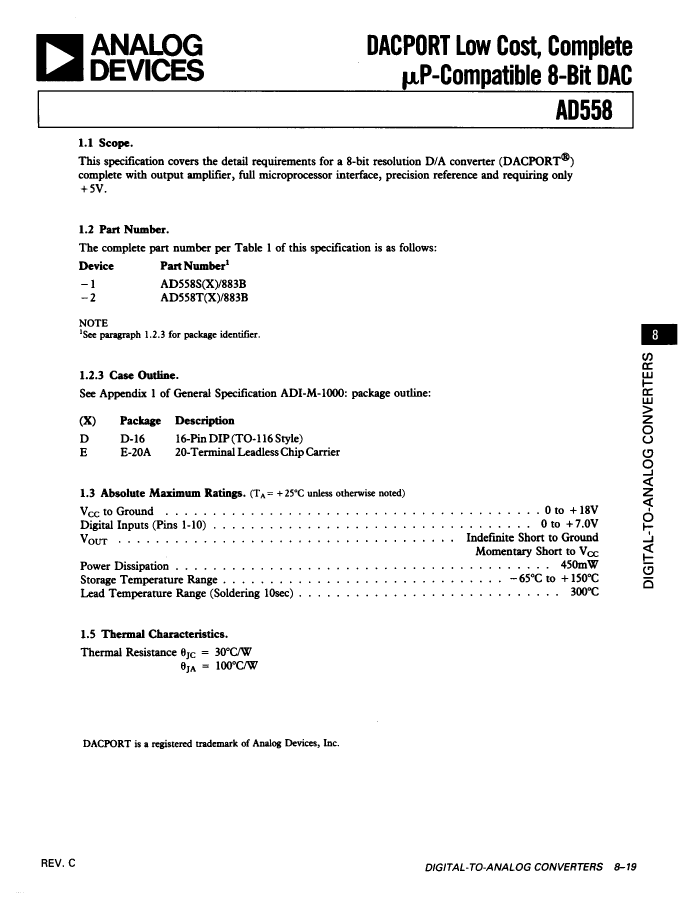

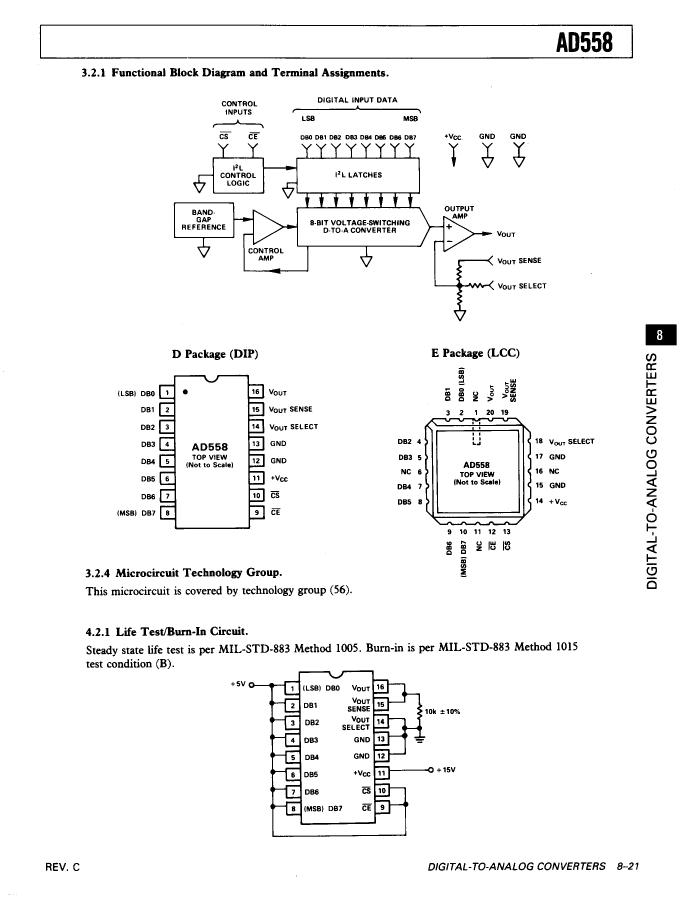

Preview

Download Datasheet

View All

5962-01-146-9139 Related Products

	5962-01-146-9139	SIP-4789SD-01-1580DB	AD558JD/+	5962-01-334-6946	AD558KD/+	AD558KN/+	5962-01-302-3671
Description	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter	Array/Network Resistor, Isolated, Thin Film, 0.8W, 158ohm, 100V, 0.5% +/-Tol, 100ppm/Cel, Through Hole Mount, 8007, SIP-8	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,I2L,DIP,16PIN, Digital to Analog Converter
package instruction	DIP, DIP16,.3	SIP, 8007	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	compliant	not_compliant	unknown	unknown	unknown	unknow
Number of functions	1	4	1	1	1	1	1
Number of terminals	16	8	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	70 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-65 °C	-	-55 °C	-	-	-55 °C
Package shape	RECTANGULAR	RECTANGULAR PACKAGE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SIP	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	THIN FILM	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maker	ADI	-	-	ADI	ADI	ADI	ADI
Converter type	D/A CONVERTER	-	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	-	BINARY	BINARY	BINARY	BINARY	BINARY
JESD-30 code	R-XDIP-T16	-	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16
Maximum linear error (EL)	0.29%	-	0.2%	0.15%	0.1%	0.1%	0.15%
Number of digits	8	-	8	8	8	8	8
Package body material	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	-	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	-	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
power supply	5/15 V	-	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Maximum stabilization time	3 µs	-	3 µs	3 µs	3 µs	3 µs	3 µs
Maximum slew rate	25 mA	-	25 mA	25 mA	25 mA	25 mA	25 mA
Temperature level	MILITARY	-	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	-	incompatible	incompatible	-	incompatible	incompatible	-
ECCN code	-	EAR99	EAR99	-	EAR99	EAR99	-
JESD-609 code	-	e0	e0	-	e0	e0	-
Terminal surface	-	Tin/Lead (Sn60Pb40)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
