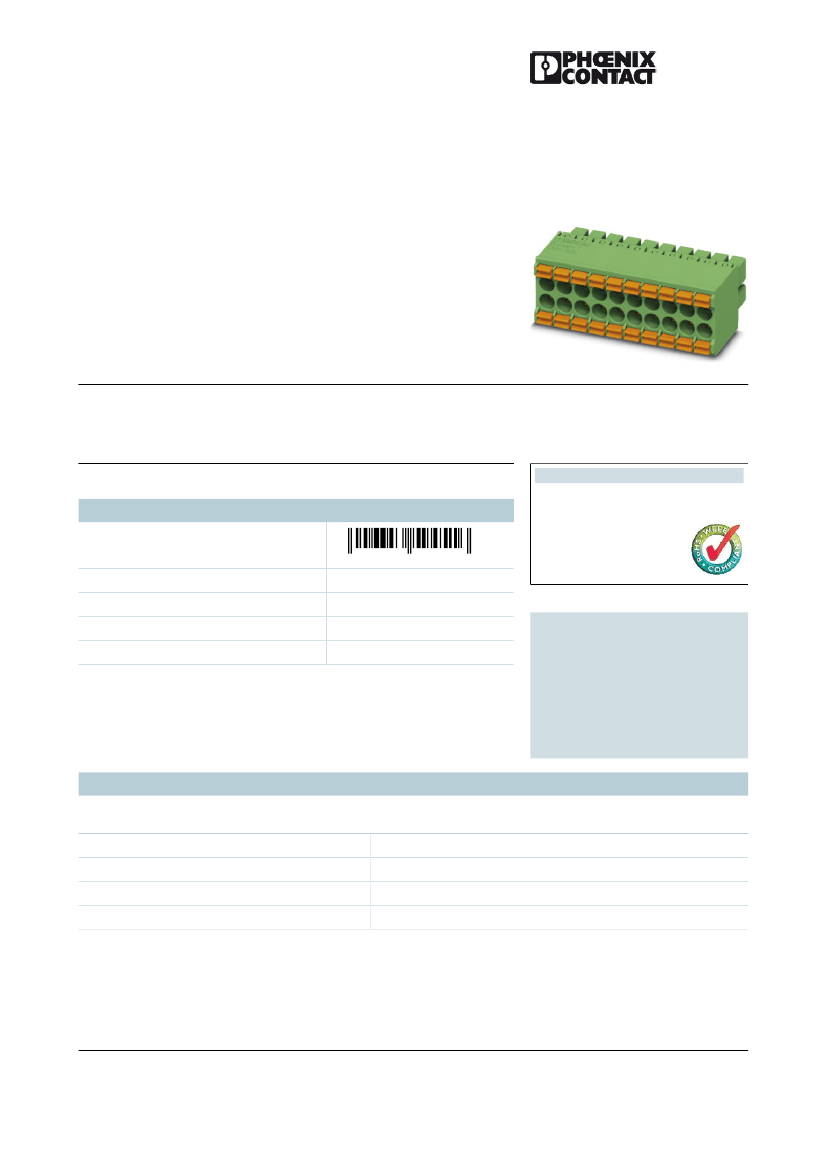

Extract from the online
catalog
DFMC 1,5/18-ST-3,5
Order No.: 1790263
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1790263
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V,
Number of positions: 18, Pitch: 3.5 mm, Connection method: Spring-
cage conn., Color: Green
Product notes
Commercial data
GTIN (EAN)
4
046356
594516
WEEE/RoHS-compliant since:
07/08/2010
Note
sales group
Pack
Customs tariff
Made-to-order
E101
50 pcs.
85366990
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
Height
Pitch
Dimension a
22.65 mm
13.25 mm
3.5 mm
59.5 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Aug 30, 2011
DFMC 1,5/18-ST-3,5
Order No.: 1790263
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1790263
Number of positions
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
18
DFMC 1,5/..-ST
I
2.5 kV
2.5 kV
2.5 kV
160 V
250 V
EN-VDE
8A
160 V
1.5 mm²
8A
PA
V0
A1
10 mm
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.75 mm²
24
16
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Aug 30, 2011
DFMC 1,5/18-ST-3,5
Order No.: 1790263
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1790263
Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Aug 30, 2011
DFMC 1,5/18-ST-3,5
Order No.: 1790263
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1790263
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
