284047-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 284047-4

284047-4: DescriptionTERMI-BLOK VERTICAL PLUG STACK; CategoryThe connector terminals; File Size561KB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

284047-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	284047-4	-	-	View	Buy Now

284047-4 Overview

TERMI-BLOK VERTICAL PLUG STACK

284047-4 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PA66, 94V-0, POLARIZED, LATCHED
Fastening method	SCREW
Manufacturer's serial number	284047
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	4
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

E12

REVISED PER ECO-13-016361

19OCT2013

CLAMPING SCREW

MATERIALS AND FINISH

HOUSING: PA 6-6, UL 94-V0, COLOR: GREEN.

CLAMP: BRASS, NICKEL PLATED.

CONTACT SPRING : PHOSPHOR BRONZE, TIN PLATED.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

WIRE SIZE RANGE: 12 - 30 AWG

NOT CUMULATIVE TOLERANCE.

CHARACTERS MARKED IN PERMANENT WHITE COLOR.

PARTS SHOWN WITH INTEGRATED KEYING FEATURE LOCATED AS SHOWN.

SEE DETAIL A-D

SEE DETAIL A-C

SEE DETAIL A-B

SEE DETAIL A-A

SEE DETAIL Z

SEE DETAIL X

SEE DETAIL W

SEE DETAIL V

SEE DETAIL U

SEE DETAIL T

SEE DETAIL S

SEE DETAIL R

SEE DETAIL P

SEE DETAIL M

SEE DETAIL L

8.4

12.5

SEE DETAIL N

106.68

76.20

81.28

60.96

121.92

91.44

20.32

10.16

60.96

4- 284047 -1

4- 284047 -0

3- 284047 -9

3- 284047 -8

3- 284047 -7

3- 284047 -6

3- 284047 -5

3- 284047 -4

3- 284047 -3

3- 284047 -2

3- 284047 -1

3- 284047 -0

2- 284047 -9

2- 284047 -8

2- 284047 -7

2- 284047 -6

2- 284047 -5

2- 284047 -4

2- 284047 -3

2- 284047 -2

2- 284047 -1

2- 284047 -0

1- 284047 -9

1- 284047 -8

1- 284047 -7

1- 284047 -6

1- 284047 -5

1- 284047 -4

1- 284047 -3

1- 284047 -2

1- 284047 -1

1- 284047 -0

284047 -9

284047 -8

284047 -7

284047 -6

284047 -5

284047 -4

284047 -3

284047 -2

PART

NUMBER

TE Connectivity

NAME

6 CHARACTERS MARKED IN PERMANENT BLACK COLOR.

121.92

WIRE ENTRY

24.40

25.0

127.00

121.92

116.84

111.76

106.68

101.60

96.52

91.44

86.36

81.28

76.20

71.12

66.04

60.96

55.88

50.80

45.72

40.64

35.56

30.48

25.40

20.32

15.24

10.16

NO 0F

POSN

RETENTION LATCH

POLARIZATION KEY SLOT

6.25

REF

MATING FACE

5.08

0.05

TYP

2.54

TYP

REF

MARKING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

S.WELDON

C.RICHARD

05FEB2003

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.25

PRODUCT SPEC

C.RICHARD

APPLICATION SPEC

1471-9 (3/13)

WEIGHT

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

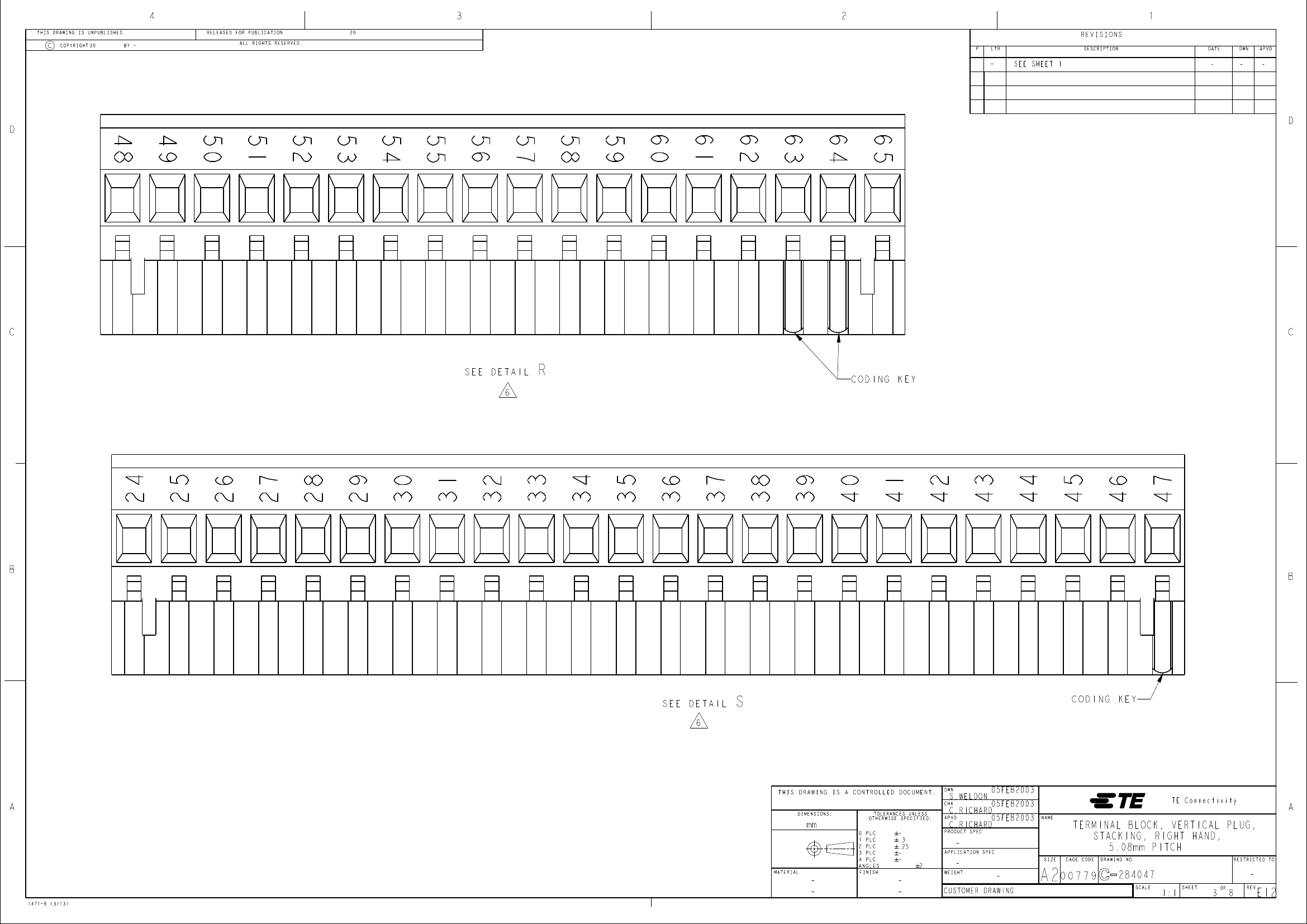

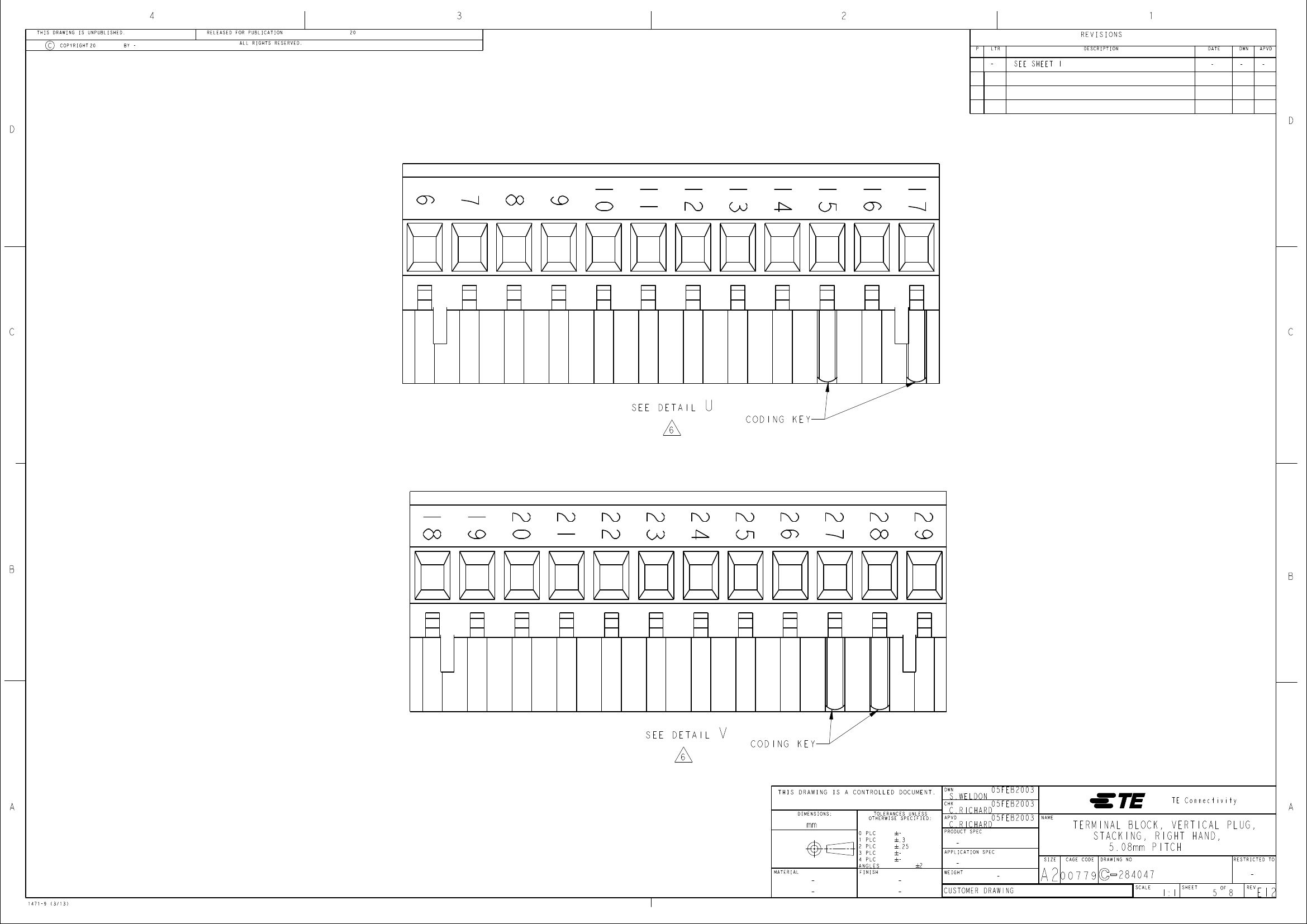

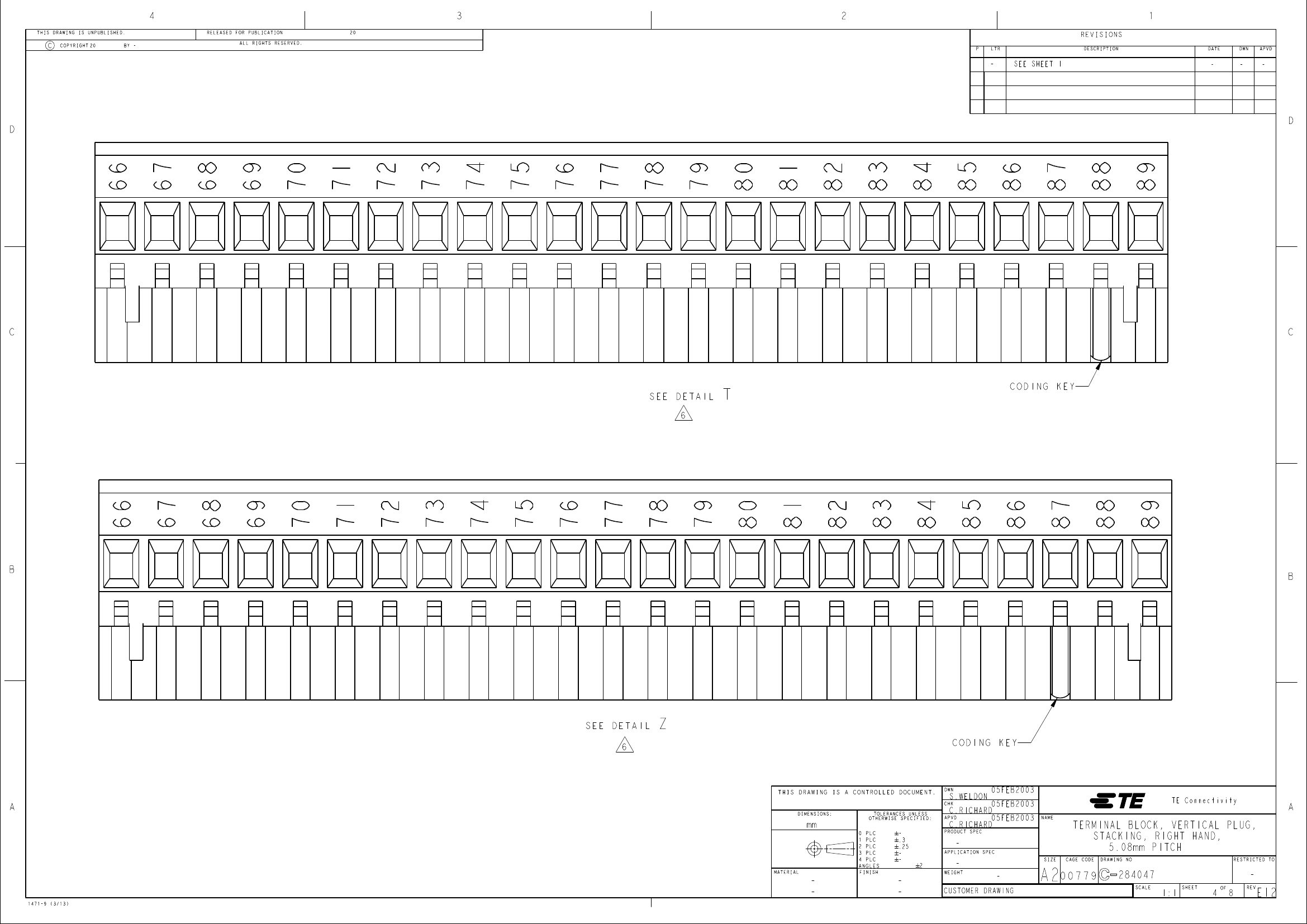

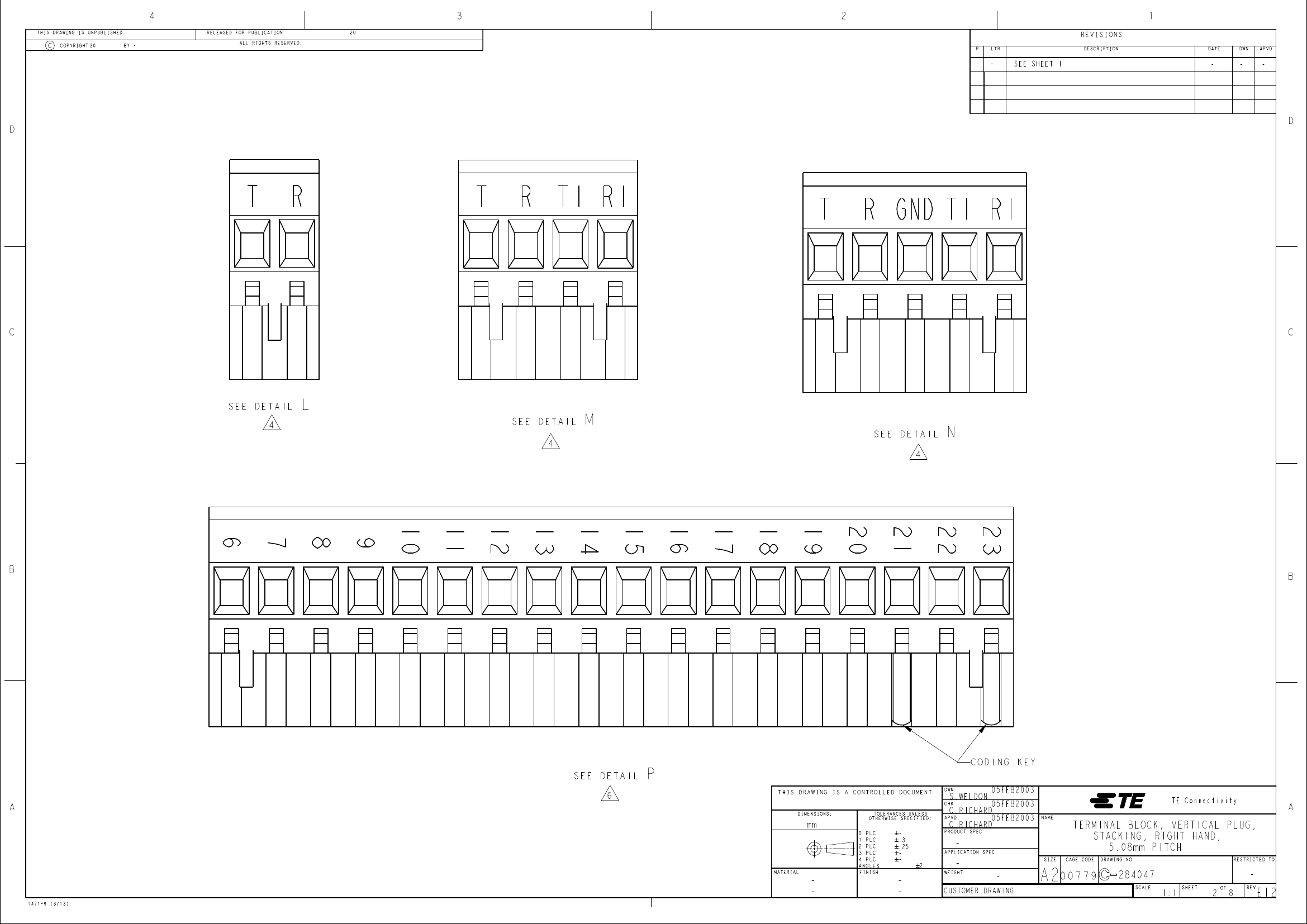

TERMINAL BLOCK, VERTICAL PLUG,

STACKING, RIGHT HAND,

5.08mm PITCH

DRAWING NO

RESTRICTED TO

284047

SCALE

1:1

SHEET

REV

E12
