THA3031035CC500005-19.44M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> THA3031035CC500005-19.44M

THA3031035CC500005-19.44M: DescriptionTCVCXO, Clock,; CategoryPassive components oscillator; File Size673KB，6 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric View All

THA3031035CC500005-19.44M Overview

TCVCXO, Clock,

THA3031035CC500005-19.44M Parametric

Parameter Name	Attribute value
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Minimum operating temperature
Maximum operating temperature	50 °C
physical size	7.0mm X 5.0mm X 2.65 mm
Is it Rohs certified?	Yes
Objectid	145001511070
package instruction	LCC, 4 PIN
Reach Compliance Code	Compliant
Is Samacsys	N
YTEOL	0.4
Frequency Adjustment - Mechanical	NO
Minimum supply voltage	3.1 V
maximum symmetry	60/40 %
Other features	LESS THAN 250 PCS AVAILABLE IN TAPE PACKING
Minimum control voltage	0.5 V
maximum descent time	6.5 ns
Maximum slew rate	7 mA
Maximum supply voltage	3.5 V
Maximum control voltage	2.5 V
Frequency offset/pull rate	5 ppm
longest rise time	6.5 ns
Nominal operating frequency	19.44 MHz
Oscillator type	CMOS
Output load	15 pF
Nominal supply voltage	3.3 V
Ageing	3 PPM/15 YEAR
frequency stability	0.5%

Preview

Download Datasheet

View All

PLETRONICS

THA3 Series

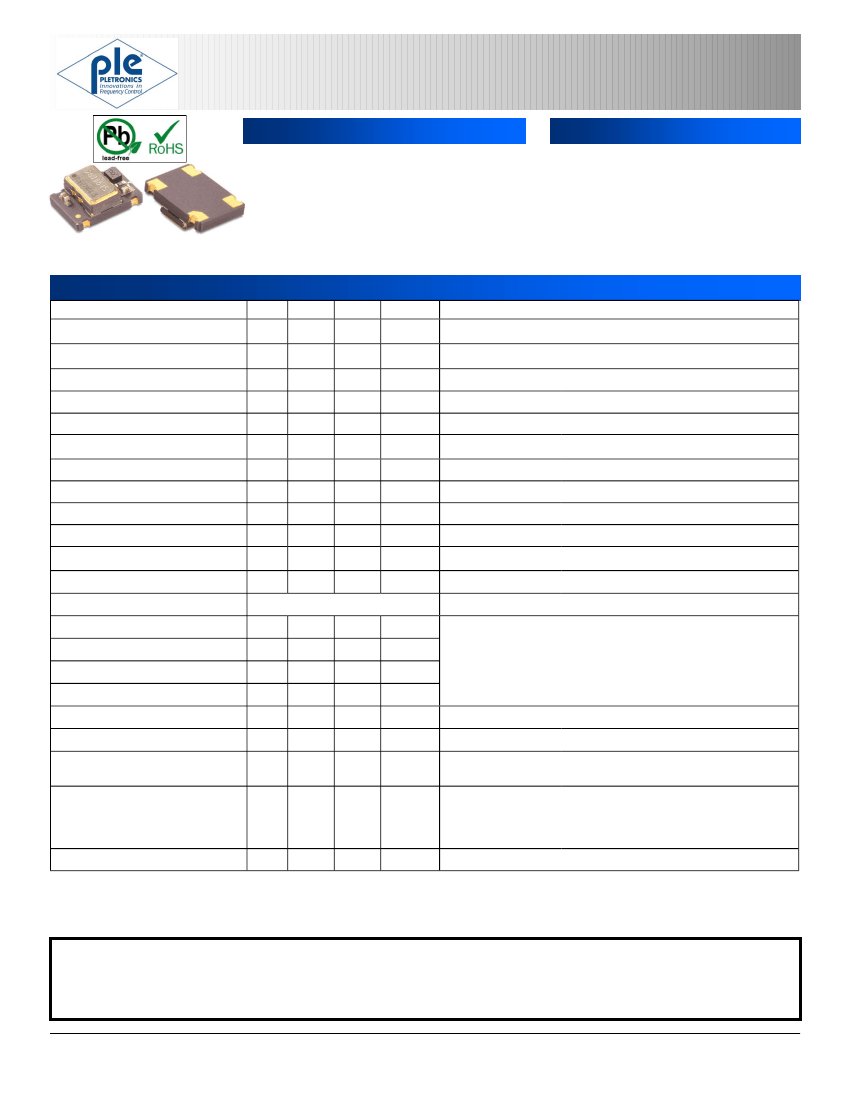

STRATUM-III TYPE TCXO / TCVCXO

Features

Applications

SONET / SDH / DWDM

Test & Measurement

Telecom Transmission & Switching Equipment

Base Stations / Picocell

Wireless Communication Equipment



Pletronics’ THA3 Stratum-III Type Series



Temperature Compensated Crystal Oscillator

Optional Voltage Control Function

Low Power / Fast Warm Up

CMOS Output

2.8V to 3.3V nominal Supply Voltage

See table for developed Frequencies

THA3

5.0 x 7.0 x 2.6 mm

LCC Ceramic Package

Electrical Characteristics

Parameter

Frequency Range

Frequency Stability vs. Temperature

Frequency Initial Calibration

Operating Temperature Range

Supply Voltage

1, 2

Supply Current I

24 Hour Holdover

Frequency Stability vs. Supply

Frequency Stability vs. Load

Vcontrol Range

Frequency Pullability

Linearity

Output Waveform

Duty Cycle

Output V

HIGH

Output V

LOW

Output T

RISE

and T

FALL

Startup Time

Long term stability (Aging)

Jitter

Phase Noise

10 Hz

100 Hz

1 kHz

10 kHz

±3.0

0.6

-100

-120

-134

-144

Min

8.192

-40

2.8

0.5

Typ

±0.28

±8.0

Max

40.0

±1.0

+85

3.3

7.0

±0.37

±0.2

2.5

±12.0

2.0

CMOS

6.5

3.0

Unit

MHz

ppm

°C

Volts

ppm

Volts

ppm

Condition

(Consult factory for other options)

See table below for developed frequencies

max

- f

min

) / 2

25°C ± 2°C, 24 hours after reflow

Widest range available

± 5%

Load: 15 pF, V

± 5%

Load: 15 pF, V

± 5%

Load: 15 pF, V

± 5%

1.50 volts nominal for V

Positive Slope

%Vdd

ppm

Load: 15 pF

Vth: T

and T

10% and 90% of amplitude

Vth: D.C. 50% of amplitude

Time to reach specified frequency

After 15 years

Frequency offset from carrier 12 kHz to 5 MHz,

typical performance at 20.0 MHz

dBc/Hz

25°C ± 2°C at 26.0 MHz

Storage Temperature Range

Note:

-55

+95

°C

Place a 10nF power supply bypass capacitor next to device for correct operation

Specified by part number.

The following is a list of developed frequencies. Consult factory for other options.

8.192M, 9.60M, 9.72M, 10.00M, 12.80M, 13.00M, 16.384M,

19.20M, 19.44M, 20.00M, 25.60M, 26.00M, 40.00M only

Product information is current as of publication date. The product conforms to specifications per the terms of the Pletronics standard warranty.

Production processing does not necessarily include testing of all parameters.

Aug 27, 2019 Rev. E

Pg 1



19013 36th Ave. W, Lynnwood, WA 98036 USA

www.pletronics.com 

425-776-1880
