5-583616-2 datasheet, PDF - EEWORLD Datasheet

5-583616-2: DescriptionCONT.CRP.SNAP TW.LF. STRIP; CategoryThe connector Connector bracket; File Size90KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-583616-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-583616-2	-	-	View	Buy Now

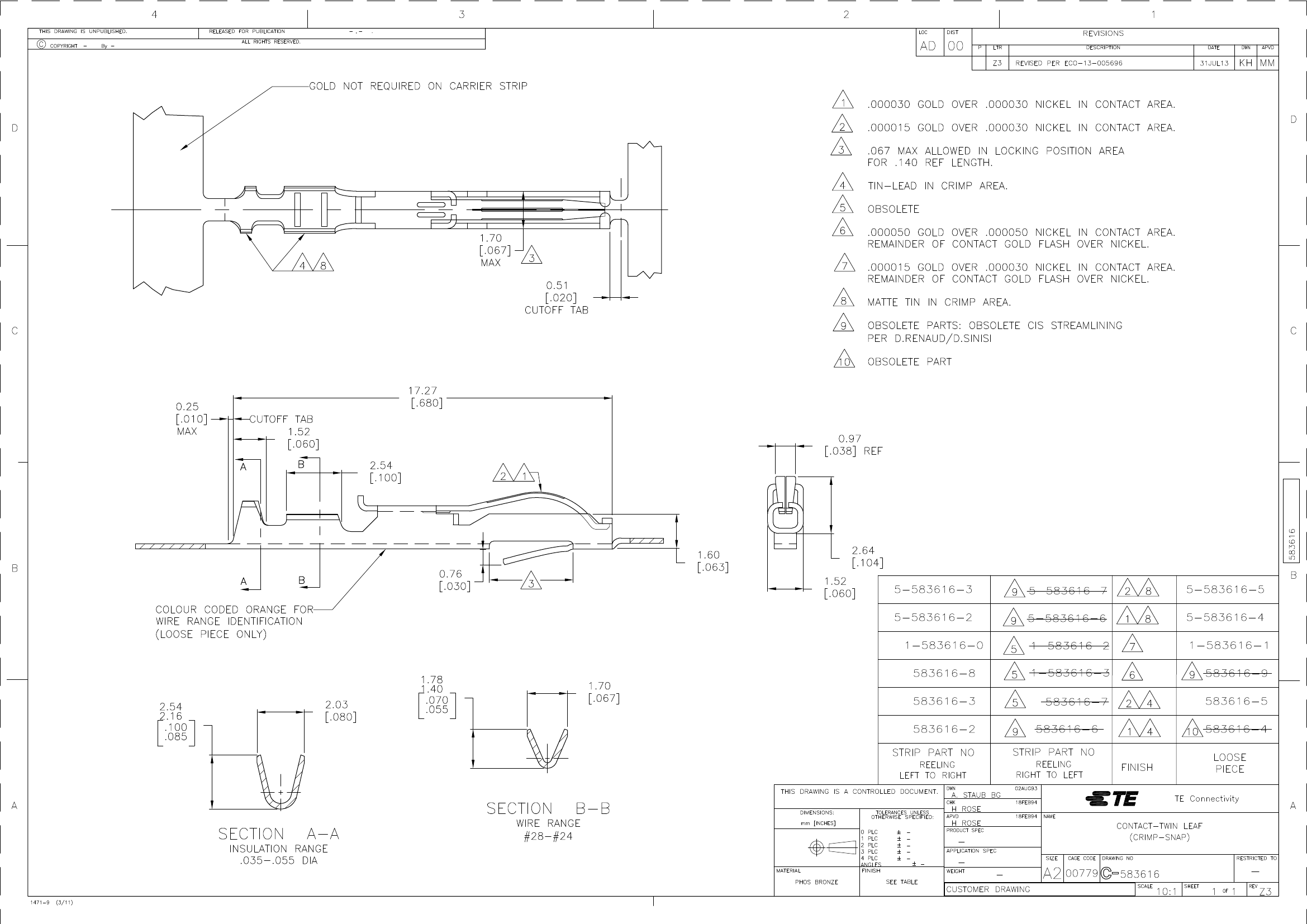

CONT.CRP.SNAP TW.LF. STRIP

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Assembly name	CONTACT
Maximum number of cable entries	0.055 inch
Minimum cable entry	0.035 inch
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
Finished thickness	30
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Terminal type	CRIMP
Base Number Matches	1

	5-583616-2	5-583616-3	5-583616-4
Description	CONT.CRP.SNAP TW.LF. STRIP	CONT.CRP.SNAP TW.LF. STRIP	TWIN LF CONT IS 24-28 AU
Terminal type	CRIMP	bifurcation	bifurcation
color code	-	orange color	orange color
Terminal base material	-	Phosphor bronze	Phosphor bronze
PCB terminal termination area plating materials	-	tin	tin
Solder tail terminal plating material surface coating	-	matte	matte
Wire terminal termination area plating materials	-	tin	tin
Terminal contact plating material	-	gold	gold
Terminal Contact Plating Thickness (µin)	-	15	30
Cable termination method	-	crimp	crimp
Surface coating of plating material in crimp area	-	matte	matte
Terminal retention in housing	-	Press-fit snap-in	Press-fit snap-in
Centerline (Pitch) (mm)	-	2.54, 3.18, 3.96	2.54, 3.18, 3.96
Centerline (Pitch) (in)	-	.156	.156
Cable size (AWG)	-	28 – 24	28 – 24
Cable size (mm²)	-	.08 – .24	.08 – .24
Insulation diameter	-	.89 – 1.4 mm [ .035 – .055 in ]	.89 – 1.4 mm [ .035 – .055 in ]
Encapsulation method	-	Stripping	living block
Package quantity	-	7000	5000
