745077-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 745077-4

745077-4: Description15 RCPT SP/AP SCRLK; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

745077-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	745077-4	-	-	View	Buy Now

745077-4 Overview

15 RCPT SP/AP SCRLK

745077-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Factory Lead Time	12 weeks
Other features	AMPLIMITE
body width	0.42 inch
body length	1.546 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	ROUND STANDOFF
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Guideline	UL, CSA
reliability	MIL-C-24308
Shell material	POLYETHYLENE
Housing size	2/A
Terminal length	0.125 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

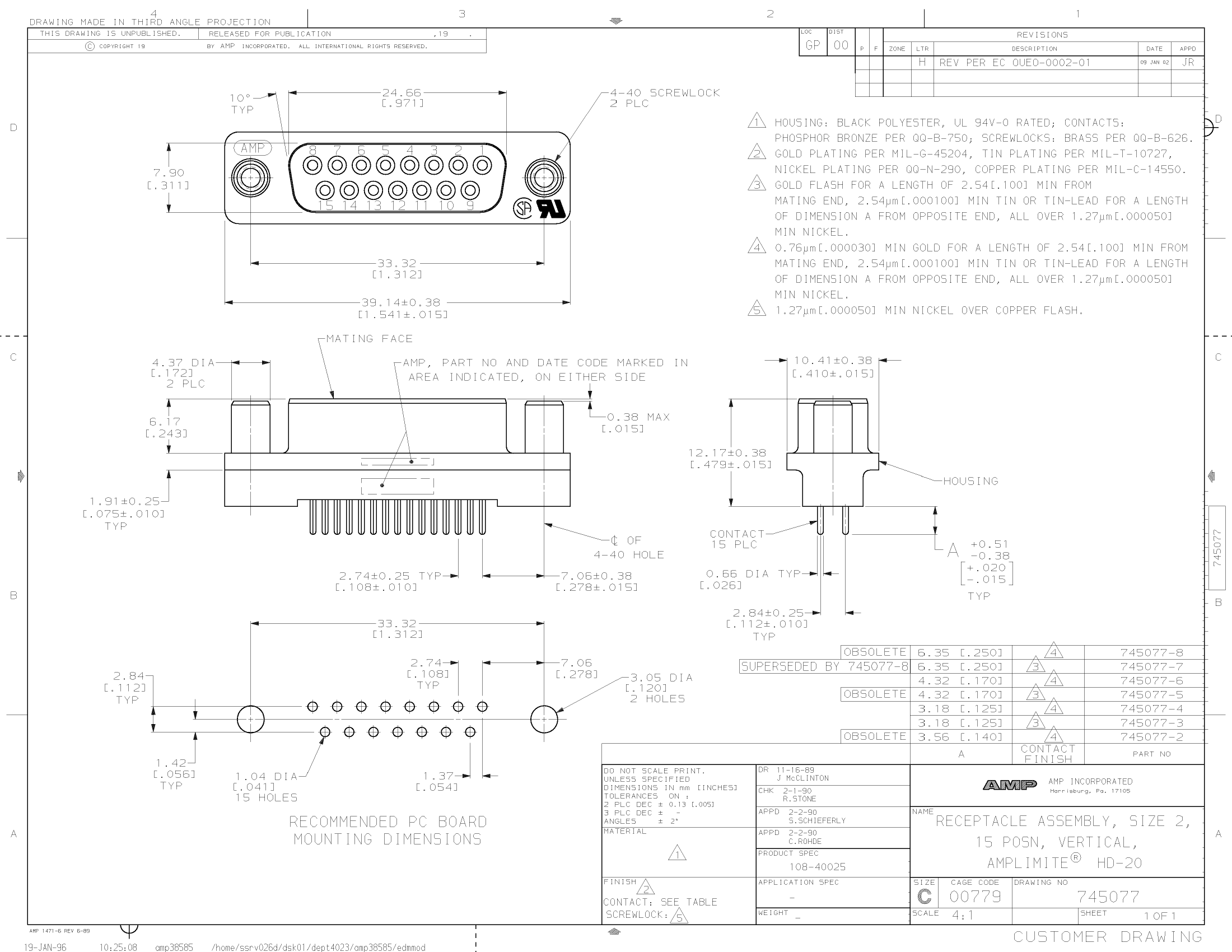

Preview

Download Datasheet

View All

745077-4 Related Products

	745077-4	745077-7	745077-5	745077-2	745077-8
Description	15 RCPT SP/AP SCRLK	CONNECTOR, 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR, 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40
Reach Compliance Code	not_compliant	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
insulator material	POLYESTER	POLYESTER	THERMOPLASTIC	POLYESTER	THERMOPLASTIC
MIL compliance	NO	NO	YES	NO	YES
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Shell material	POLYETHYLENE	POLYETHYLENE	THERMOPLASTIC	PLASTIC	THERMOPLASTIC
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	15
Base Number Matches	1	1	1	1	1
Other features	AMPLIMITE	AMPLIMITE	-	AMPLIMITE	-
body width	0.42 inch	-	0.42 inch	-	0.42 inch
body length	1.546 inch	-	1.546 inch	-	1.546 inch
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	-
Contact to complete cooperation	GOLD (30)	-	AU ON NI	-	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	GOLD	-	GOLD
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE
contact mode	STAGGERED	-	STAGGERED	-	STAGGERED
Contact resistance	15 mΩ	-	15 mΩ	-	15 mΩ
Contact style	RND PIN-SKT	-	RND PIN-SKT	-	RND PIN-SKT
DIN compliance	NO	NO	-	NO	-
Dielectric withstand voltage	1000VAC V	-	1000VAC V	-	1000VAC V
empty shell	NO	NO	-	NO	-
Filter function	NO	NO	-	NO	-
IEC compliance	NO	NO	-	NO	-
Insulation resistance	5000000000 Ω	-	5000000000 Ω	-	5000000000 Ω
Insulator color	BLACK	-	BLACK	-	BLACK
Plug contact pitch	0.109 inch	-	0.109 inch	-	0.109 inch
Match contact row spacing	0.112 inch	-	0.112 inch	-	0.112 inch
Mixed contacts	NO	NO	-	NO	-
Installation option 1	#4-40	-	#4-40	-	#4-40
Installation option 2	ROUND STANDOFF	-	ROUND STANDOFF	-	ROUND STANDOFF
Installation method	STRAIGHT	-	STRAIGHT	-	STRAIGHT
PCB row number	2	-	2	-	2
Number of rows loaded	2	-	2	-	2
PCB contact pattern	STAGGERED	-	STAGGERED	-	STAGGERED
PCB contact row spacing	2.8448 mm	-	2.8448 mm	-	2.8448 mm
Plating thickness	30u inch	-	FLASH inch	-	30u inch
Guideline	UL, CSA	-	UL, CSA	-	UL, CSA
reliability	MIL-C-24308	-	MIL-C-24308	-	MIL-C-24308
Housing size	2/A	2/A	-	2/A	-
Terminal length	0.125 inch	-	0.17 inch	-	0.25 inch
Terminal pitch	2.7432 mm	-	2.7432 mm	-	2.7432 mm
UL Flammability Code	94V-0	94V-0	-	94V-0	-
Maker	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
