1701-A40-098 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1701-A40-098

1701-A40-098: DescriptionCard Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size238KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1701-A40-098 Overview

Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

1701-A40-098 Parametric

Parameter Name	Attribute value
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	305418007
body width	0.36 inch
subject depth	0.598 inch
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Contact to complete cooperation	AU
Installation type	BOARD
Number of rows loaded	2
insulator material	GLASS FILLED POLYETHYLENE
Installation method	STRAIGHT
PCB row number	2
Rated current (signal)	3 A
Total number of contacts	98
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact resistance	20 mΩ
Installation option 1	LOCKING
Plating thickness	FLASH inch
Termination type	SOLDER
Contact completed and terminated	Tin/Lead (Sn/Pb)
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Contact material	COPPER ALLOY
Plug contact pitch	0.1 inch
Mixed contacts	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Guideline	UL
JESD-609 code	e0
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Is it Rohs certified?	No

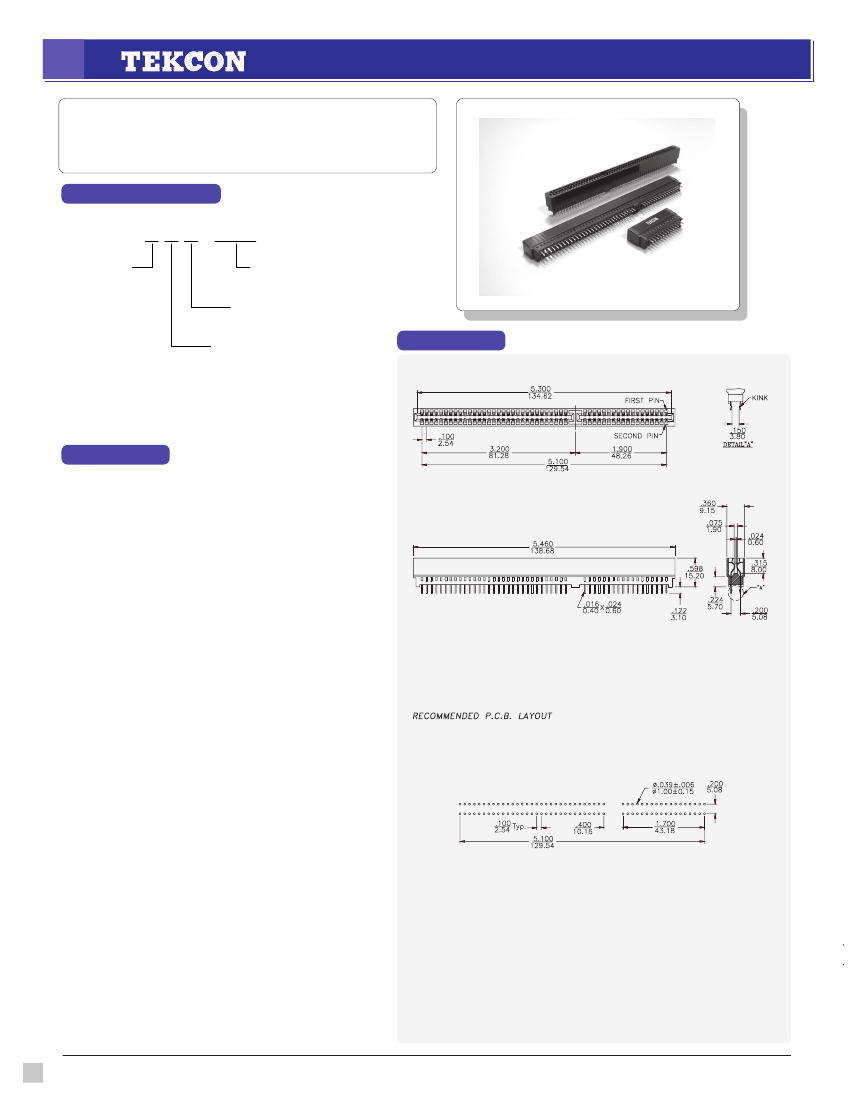

1701-A40-098 Preview

http://www.tekcon.com

http://www.tekcon.com.tw

1701 Series

Card Edge Connector

2.54 mm, for ISA BUS

Ordering Information

1701

X X X

XXX

Contact Plating

A - Gold Flash/ Tin

B - 10

µ"

Gold/ Tin

C - 15

µ"

Gold/ Tin

D - 20

µ"

Gold/ Tin

G - 3µ" Gold/ Tin

H - 15µ" Pd/Ni+3µ" Gold/Tin

K - 30µ" Pd/Ni+3µ" Gold/Tin

M - 50µ" Pd/Ni+5µ" Gold/Tin

Q - 30µ" Pd/Ni, Gold Flash

NO. of Contact

026, 036, 062,

098, 104, 120

Tail Length Type

0 - 3.50mm (Std.)

1 - 3.10mm

Insulator Type

2 - Type 2

4 - Type 4

5 - Type 5

Dimension

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic,

UL94V-0.

Shell:

Phosphor Bronze.

Contact:

Copper Alloy.

Plating:

Gold on Contact Area and Tin/

Lead on Solder Tail.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

Voltage Rating:

250 VAC.

Current Rating:

3 AMP.

Contact Resistance:

20 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

9-1

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
