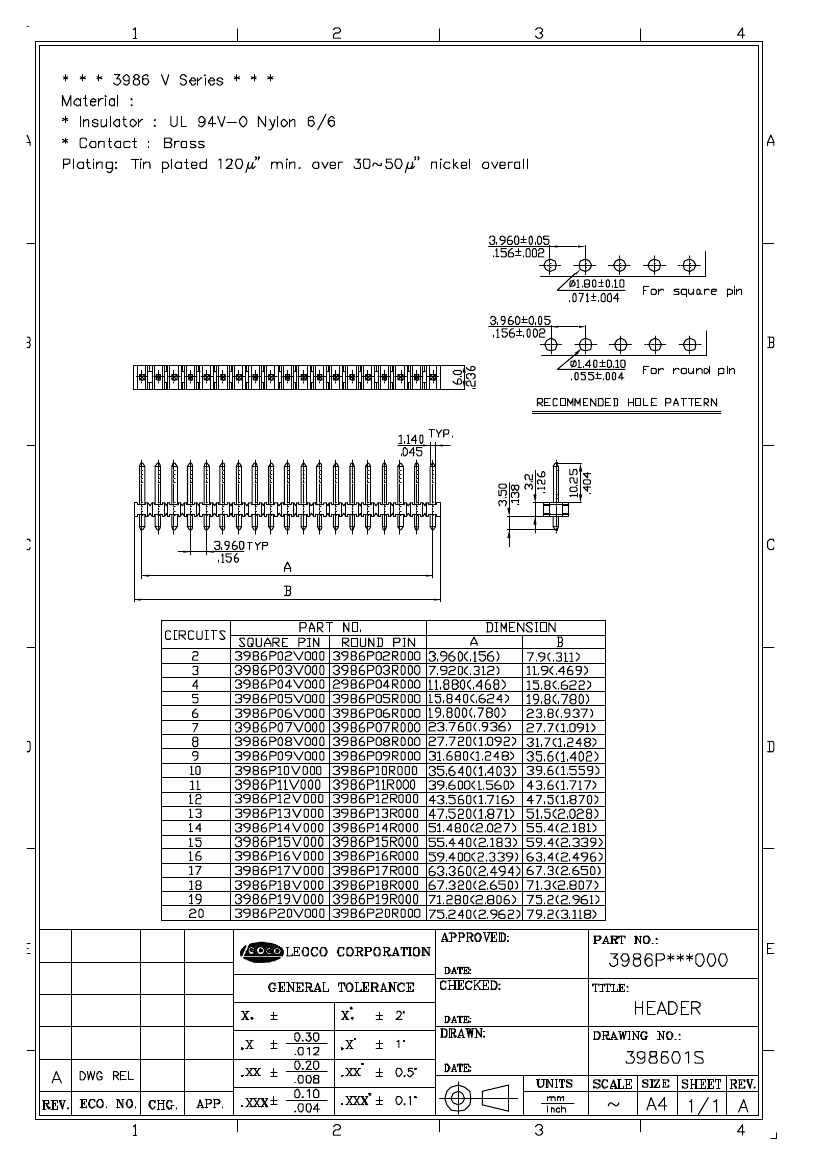

3986P09V000: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

3986P09V000 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Guideline	UL, CSA
Objectid	303564029
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.236 inch
subject depth	0.126 inch
body length	1.402 inch
Terminal length	0.138 inch
Contact to complete cooperation	SN ON NI
insulator material	POLYAMIDE
Installation method	STRAIGHT
Number of rows loaded	1
Rated current (signal)	3 A
Body/casing type	RECEPTACLE
Contact point gender	MALE
Contact resistance	40 mΩ
Installation type	BOARD
PCB row number	1
Terminal pitch	3.9624 mm
Total number of contacts	9
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	120u inch
Termination type	SOLDER
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.156 inch
PCB contact pattern	RECTANGULAR
Filter function	NO
Insulation resistance	500000000 Ω
Dielectric withstand voltage	500VAC V
Minimum operating temperature	-25 °C
Maximum operating temperature	105 °C
