1.5KE160 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5KE160

1.5KE160: DescriptionTrans Voltage Suppressor Diode, 136V V(RWM), Unidirectional,; CategoryDiscrete semiconductor diode; File Size93KB，3 Pages; ManufacturerConcord Semiconductor Corp

Download Datasheet Parametric View All

1.5KE160 Overview

Trans Voltage Suppressor Diode, 136V V(RWM), Unidirectional,

1.5KE160 Parametric

Parameter Name	Attribute value
ECCN code	EAR99
Is Samacsys	N
Objectid	104431785
Reach Compliance Code	Unknown
Breakdown voltage nominal value	160 V
Maximum clamping voltage	219 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	136 V
surface mount	NO
JEDEC-95 code	DO-201
JESD-30 code	O-PALF-W2
Terminal form	WIRE
Terminal location	AXIAL
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM

Preview

Download Datasheet

View All

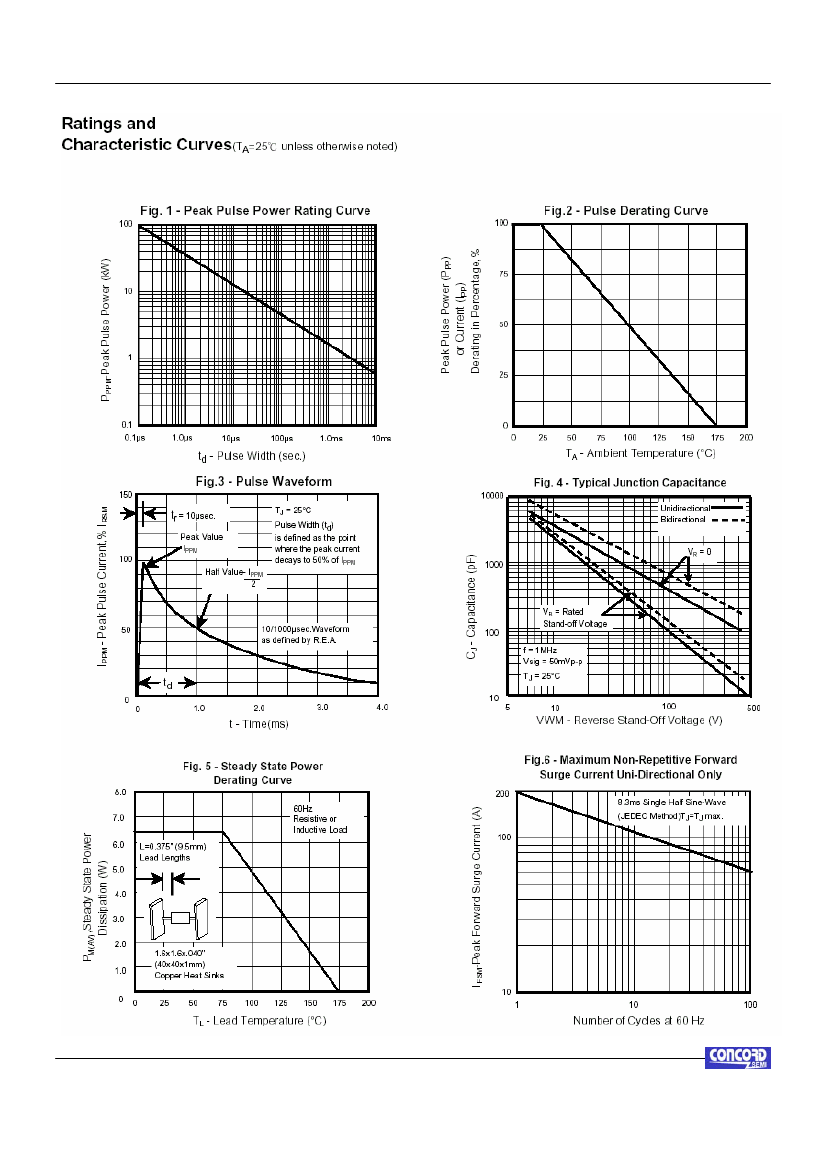

1.5KE SERIES

GLASS PASSOVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE - 6.8 to 550 Volts

1500 Watt Peak Power / 6.5 Watt Steady State

1.5KE

PART NUMBER

UNI- POLAR

1.5KE6.8A

1.5KE7.5A

1.5KE8.2A

1.5KE9.1A

1.5KE10A

1.5KE11A

1.5KE12A

1.5KE13A

1.5KE15A

1.5KE16A

1.5KE18A

1.5KE20A

1.5KE22A

1.5KE24A

1.5KE27A

1.5KE30A

1.5KE33A

1.5KE36A

1.5KE39A

1.5KE43A

1.5KE47A

1.5KE51A

1.5KE56A

1.5KE62A

1.5KE68A

1.5KE75A

1.5KE82A

1.5KE91A

1.5KE100A

1.5KE110A

1.5KE120A

1.5KE130A

1.5KE150A

1.5KE160A

1.5KE170A

1.5KE180A

1.5KE200A

1.5KE220A

1.5KE250A

1.5KE300A

1.5KE350A

1.5KE400A

1.5KE440A

1.5KE480A

1.5KE510A

1.5KE530A

1.5KE540A

1.5KE550A

BI-POLAR

1.5KE6.8CA

1.5KE7.5CA

1.5KE8.2CA

1.5KE9.1CA

1.5KE10CA

1.5KE11CA

1.5KE12CA

1.5KE13CA

1.5KE15CA

1.5KE16CA

1.5KE18CA

1.5KE20CA

1.5KE22CA

1.5KE24CA

1.5KE27CA

1.5KE30CA

1.5KE33CA

1.5KE36CA

1.5KE39CA

1.5KE43CA

1.5KE47CA

1.5KE51CA

1.5KE56CA

1.5KE62CA

1.5KE68CA

1.5KE75CA

1.5KE82CA

1.5KE91CA

1.5KE100CA

1.5KE110CA

1.5KE120CA

1.5KE130CA

1.5KE150CA

1.5KE160CA

1.5KE170CA

1.5KE180CA

1.5KE200CA

1.5KE220CA

1.5KE250CA

1.5KE300CA

1.5KE350CA

1.5KE400CA

1.5KE440CA

1.5KE480CA

1.5KE510CA

1.5KE530CA

1.5KE540CA

1.5KE550CA

REVERS

REVERSE

BREAKDOWN BREAKDOWN

MAXIMUM

PEAK

TEST

STAND-

VOLTAGE

CLAMPING PULSE LEAKAGE

CURREN

OFF

(V)

VOLTAGE CURREN @ V

T I

(mA)

VOLTAGE

RWM

MIN.@I

MAX.@I

@Ipp Vc(V) T Ipp (A)

RWM

(V)

(µA)

5.80

6.45

7.14

10.5

144.8

1000

6.40

7.13

7.88

11.3

134.5

500

7.02

7.79

8.61

12.1

125.6

200

7.78

8.65

9.50

13.4

113.4

8.55

9.50

10.50

14.5

104.8

9.40

10.50

11.60

15.6

97.4

10.20

11.40

12.60

16.7

91.0

11.10

12.40

13.70

18.2

83.5

12.80

14.30

15.80

21.2

71.7

13.60

15.20

16.80

22.5

67.6

15.30

17.10

18.90

25.2

60.3

17.10

19.00

21.00

27.7

54.9

18.80

20.90

23.10

30.6

49.7

20.50

22.80

25.20

33.2

45.8

23.10

25.70

28.40

37.5

40.5

25.60

28.50

31.50

41.4

36.7

28.20

31.40

34.70

45.7

33.3

30.80

34.20

37.80

49.9

30.5

33.30

37.10

41.00

53.9

28.2

36.80

40.90

45.20

59.3

25.6

40.20

44.70

49.40

64.8

23.5

43.60

48.50

53.60

70.1

21.7

47.80

53.20

58.80

77.0

19.7

53.00

58.90

65.10

85.0

17.9

58.10

64.60

71.40

92.0

16.5

64.10

71.30

78.80

103.0

14.8

70.10

77.90

86.10

113.0

13.5

77.80

86.50

95.50

125.0

12.2

85.50

95.00

105.00

137.0

11.1

94.00

105.00

116.00

152.0

10.0

102.00

114.00

126.00

165.0

9.2

111.00

124.00

137.00

179.0

8.5

128.00

143.00

158.00

207.0

7.3

136.00

152.00

168.00

219.0

6.9

145.00

162.00

179.00

234.0

6.5

154.00

171.00

189.00

246.0

6.2

171.00

190.00

210.00

274.0

5.5

185.00

209.00

231.00

328.0

4.6

214.00

237.00

263.00

344.0

4.4

256.00

285.00

315.00

414.0

3.7

300.00

332.00

368.00

482.0

3.2

342.00

380.00

420.00

548.0

2.8

376.00

418.00

462.00

602.0

2.5

408.00

456.00

504.00

658.0

2.3

434.00

485.00

535.00

698.0

2.1

477.00

503.50

556.50

725.0

2.1

459.00

513.00

567.00

740.0

2.0

495.00

522.50

577.50

760.0

2.0

For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.

For parts without A , the VBR is ± 10%
