TSHCR-739-S-02-200-F-TB-LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TSHCR-739-S-02-200-F-TB-LF

Preview

TSHCR-739-S-02-200-F-TB-LF: DescriptionBoard Connector, 39 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

TSHCR-739-S-02-200-F-TB-LF Overview

Board Connector, 39 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Receptacle

TSHCR-739-S-02-200-F-TB-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Objectid	1166388954
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact point gender	MALE
Connector type	BOARD CONNECTOR
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Rated current (signal)	1 A
Total number of contacts	39
Contact resistance	20 mΩ
Number of rows loaded	1
Terminal pitch	0.9906 mm
Other features	ROHS COMPLIANT, W/TUBE
insulator material	LIQUID CRYSTAL POLYMER
body width	0.05 inch
subject depth	0.098 inch
body length	1.521 inch
Terminal length	0.075 inch
Contact completed and terminated	Gold (Au)
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Plug contact pitch	0.039 inch
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
contact mode	RECTANGULAR
Mixed contacts	NO
Plating thickness	FLASH inch
Termination type	SOLDER
Dielectric withstand voltage	300VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Guideline	UL
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C

Preview

Download Datasheet

View All

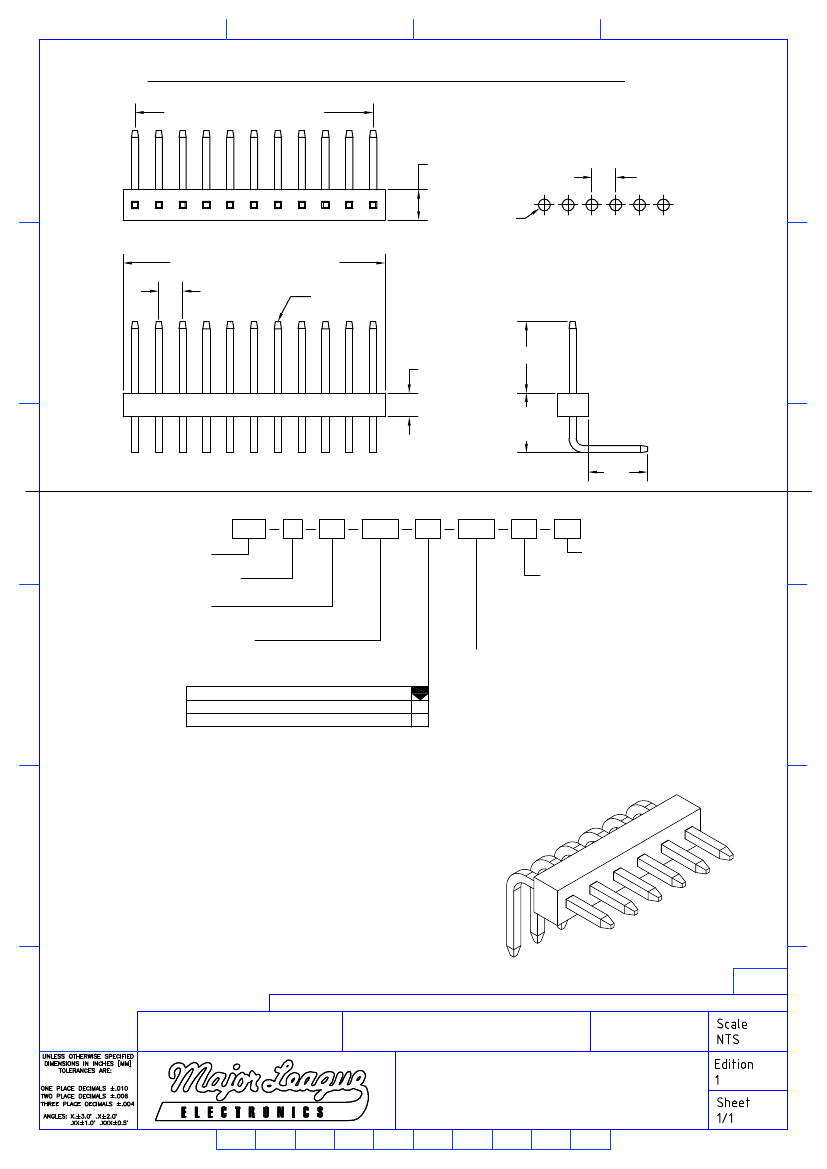

Major League Electronics .0394 cl Terminal Strip Header - Right Angle

.0394(1.00) x No of Spaces

.050

[1.27]

Ø.0197

[Ø0.50]

.0394(1.00) x No. of Positions

.0394

[1.00]

.012 Sq.

[0.30]

.0394

[1.00]

Recommended P.C. Board Layout

.0394

[1.00]

Post

.0984

[2.50]

Post Height: Min = .096 [2.44] Max = .296 [7.52]

Tail

Ordering Information

TSHCR-7

XX

02-40

S

02

XXX

XX

XXX

XX

LF

Lead Free

Packing Information

B = Bulk

TB = Tube

If left blank, packaging at MLE's discretion

Pad may be metal, mylar or plastic

Pins Per Row

Row Specification

S = Single Row

Tail Length

02 = .075 [1.90]

Desired Post Height

Please specify

e.g. .200[5.08] = 200

Specification

Electrical:

Rated Current: 1.0AMP

Plating Options

- Gold Flash over entire Pin

- Matte Tin over entire pin

F

T

Leave blank if not needed

If required, specify empty pin position,

e.g. 012 for Pin 12

Polarized Position

Contact Resistance: 20mΩ max

Withstand Voltage: 300V AC

Insulation Resistance: 1000MΩ min

Operation Temperature: -40°C to +105°C

Max. Process Temperature

Wave Solder: Solder Temp 260 ±5°C

Immersion period: 5 ±5 secs.

Reflow Solder: Pre-Heat Temp: 100~150°C for 60 secs max.

Temperature: min. 210°C for 30 secs max.

Peak Temperature: 260 ±5°C, 10 ±5 secs.

Manual Solder: 245 ±3°C 3~5 secs.

Material:

Contact Material: Phosphor Bronze

Insulator Material: LCP, UL94V-0

Products cut to specific sizes are uncancellable/nonreturnable

Mates with:

LSMSS-7

Parts are subject to change without notice

TSHCR-7-S SERIES

.0394 cl Dual Row - Right Angle

Terminal Strip Header

18 NOV 10

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
