2CDS283001R0487: DescriptionThermal Magnetic Circuit Breaker,; CategoryCircuit protection Circuit protection; File Size66KB，3 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric View All

2CDS283001R0487 Overview

Thermal Magnetic Circuit Breaker,

Parameter Name	Attribute value
Circuit protection type	THERMAL MAGNETIC CIRCUIT BREAKER
Rated current	20 A
Rated voltage (AC)	480 V
Environmental characteristics	IP20; IP40
Guideline	CE; CSA; EN; IEC; UL
Installation features	DIN RAIL
Number of poles	3
surface mount	NO
Terminal shape	SCREW AND SNAP ON
Maximum operating temperature	55 °C
Minimum operating temperature	-25 °C
Objectid	8274210098
Reach Compliance Code	Compliant
Is Samacsys	N
YTEOL	8
Actuator type	TOGGLE
circuit function	TRIP
Rated breaking capacity	10000 A
body width	52.5 mm
body height	69 mm
Body length or diameter	88 mm
physical size	88mm x 52.5mm x 69mm

S203P-K20

General Information

Extended Product Type:

Product ID:

EAN:

Catalog Description:

Long Description:

S203P-K20

2CDS283001R0487

4016779592758

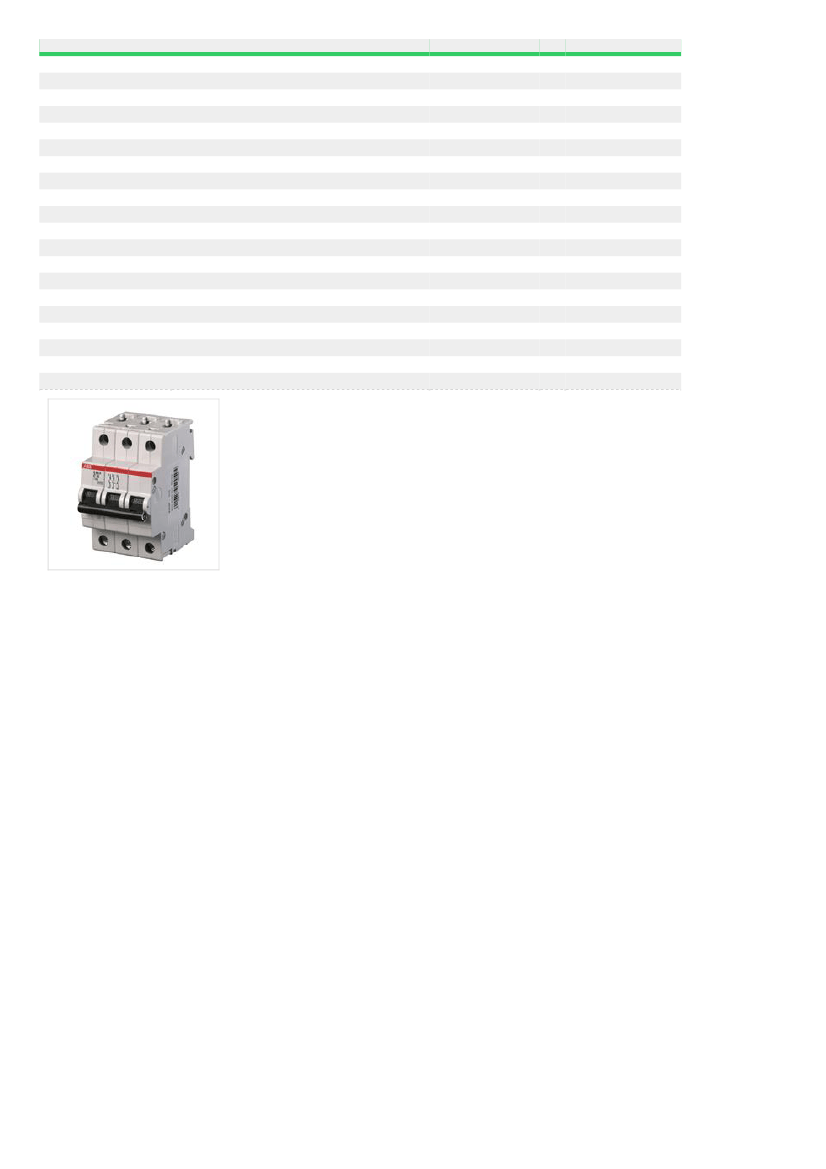

Miniature Circuit Breaker - S200P - 3P - K

System pro M compact S200P miniature circuit breakers are current limiting. They have two

different tripping mechanisms, the delayed thermal tripping mechanism for overload

protection and the electromechanic tripping mechanism for short circuit protection. They are

available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P),

breaking capacities (up to 25 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs

of the product range S200P comply with IEC/EN 60898-1, IEC/EN 609 47-2, UL1077 and

CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications.

Bottom-fitting auxiliary contact can be mounted on S200P to save 50% space.
