RLF10160T-151MR90-D Overview

fixed inductors 150uh 332.4mohm 1.3A pwr wound automotive

Preview

Download Datasheet

View All

Standard Products !!

Component

Image & Dimension

LEAD

Free!!

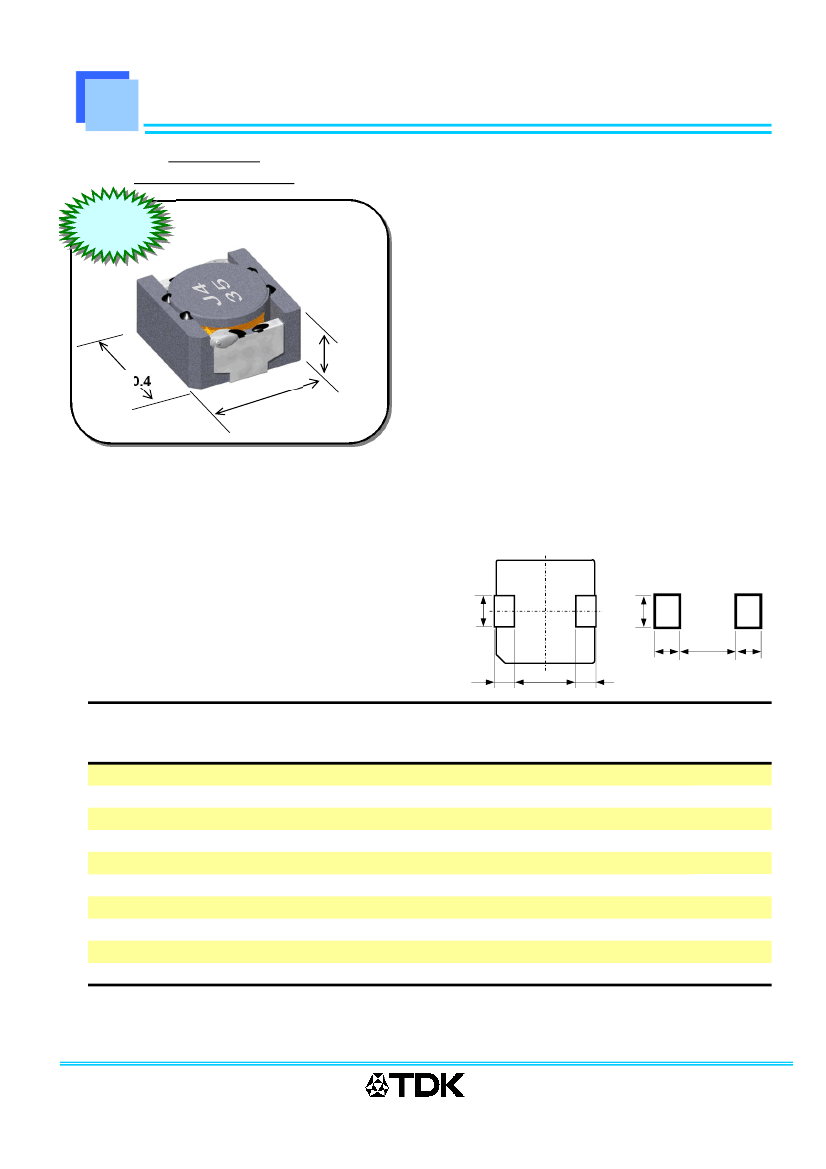

RLF10160-D TYPE

Features :

a) Miniature Size :

Automotive Target

SMD Power Inductor

Mount Area : 10.2mm square

Low Profile : 6.4mm Max. Height

6.0±0.4

10.2±0.4

10.0±0.3

unit: mm

b) Tough Design

Generic use for Automotive Appliance.

Heat and vibration, mechanical shock resistance

ability can endure an automobile use.

Operation temperature ; -40ºC ~ +150ºC

(Including self-temperature rise)

Storage temperature ; -40ºC ~ +150ºC

c) High Magnetic Shield Construction should actualize

High Resolution for EMC Protection.

d) Automatic Mounting in Tape & Reel Package.

e) Qualified acc. AEC-Q200.

Applications :

Recommended Land pattern

(unit: mm)

3+/-0.15

3.2

2.5

2 typ.

6 typ.

2 typ.

for Automotive electric control devices

and high temperature operation devices

Automotive Appliance (ECM, HID, SRS Air Bag,

Transmission control, Power steering control,

Brake control, etc)

5.6

2.5

Electrical Specification

TDK Identification

RLF10160T-

100M2R8-D

150M2R5-D

220M2R0-D

330M1R8-D

470M1R5-D

680M1R2-D

101M1R1-D

151MR90-D

221MR70-D

Inductance

(uH)

Test

Freq.

(kHz)

DC Resistance

(Ohm.)

Rated DC Current

Idc 1

Idc 2

(A max.)

(A Typ.)

10

15

22

33

47

68

100

150

220

+/-20%

100

31m

39m

55m

66m

93m

121m

195m

277m

409m

+/-20%

5.0

4.4

3.6

2.8

2.4

1.9

1.7

1.3

1.0

2.8

2.5

2.0

1.8

1.5

1.2

1.1

0.9

0.7

Note. Idc 1 : Depend on the Inductance Saturation. (-30% Saturation from Nominal L Value, Ta= 20degC)

Idc 2 : Depend on the self temperature rise. (



T=20degC, Ta=20degC)

as of 2015. Mar.

RLF10160T-151MR90-D Related Products

	RLF10160T-151MR90-D	RLF10160T-100M2R8-D	RLF10160T-101M1R1-D	RLF10160T-470M1R5-D	RLF10160T-221MR70-D	RLF10160T-330M1R8-D	RLF10160T-150M2R5-D	RLF10160T-220M2R0-D
Description	fixed inductors 150uh 332.4mohm 1.3A pwr wound automotive	fixed inductors 10uh 37.2mohms 5.0A pwr wound automotive	fixed inductors 100uh 234mohms 1.7A pwr wound automotive	FIXED IND 47UH 1.5A 111.6 MOHM	FIXED IND 220UH 700MA 490.8 MOHM	FIXED IND 33UH 1.8A 79.2 MOHM	FIXED IND 15UH 2.5A 46.8 MOHM	FIXED IND 22UH 2A 66 MOHM SMD
type	-	-	-	Winding	Winding	Winding	Winding	Winding
Material - Core	-	-	-	ferrite	ferrite	ferrite	ferrite	ferrite
inductance	-	-	-	47µH	220µH	33µH	15µH	22µH
Tolerance	-	-	-	±20%	±20%	±20%	±20%	±20%
Rated current	-	-	-	1.5A	700mA	1.8A	2.5A	2A
Current - saturation value	-	-	-	2.4A	1A	2.8A	4.4A	3.6A
shield	-	-	-	shield	shield	shield	shield	shield
DC resistance (DCR)	-	-	-	111.6 milliohms max	490.8 milliohms max	79.2 milliohms max	46.8 milliohms max	66 milliohms max.
grade	-	-	-	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Operating temperature	-	-	-	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C	-40°C ~ 150°C
Inductor Frequency - Test	-	-	-	100kHz	100kHz	100kHz	100kHz	100kHz
Installation type	-	-	-	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	-	-	-	non-standard	non-standard	non-standard	non-standard	non-standard
size/dimensions	-	-	-	0.402" long x 0.394" wide (10.20mm x 10.00mm)	0.402" long x 0.394" wide (10.20mm x 10.00mm)	0.402" long x 0.394" wide (10.20mm x 10.00mm)	0.402" long x 0.394" wide (10.20mm x 10.00mm)	0.402" long x 0.394" wide (10.20mm x 10.00mm)
Height - Installation (maximum)	-	-	-	0.252"（6.40mm）	0.252"（6.40mm）	0.252"（6.40mm）	0.252"（6.40mm）	0.252"（6.40mm）
