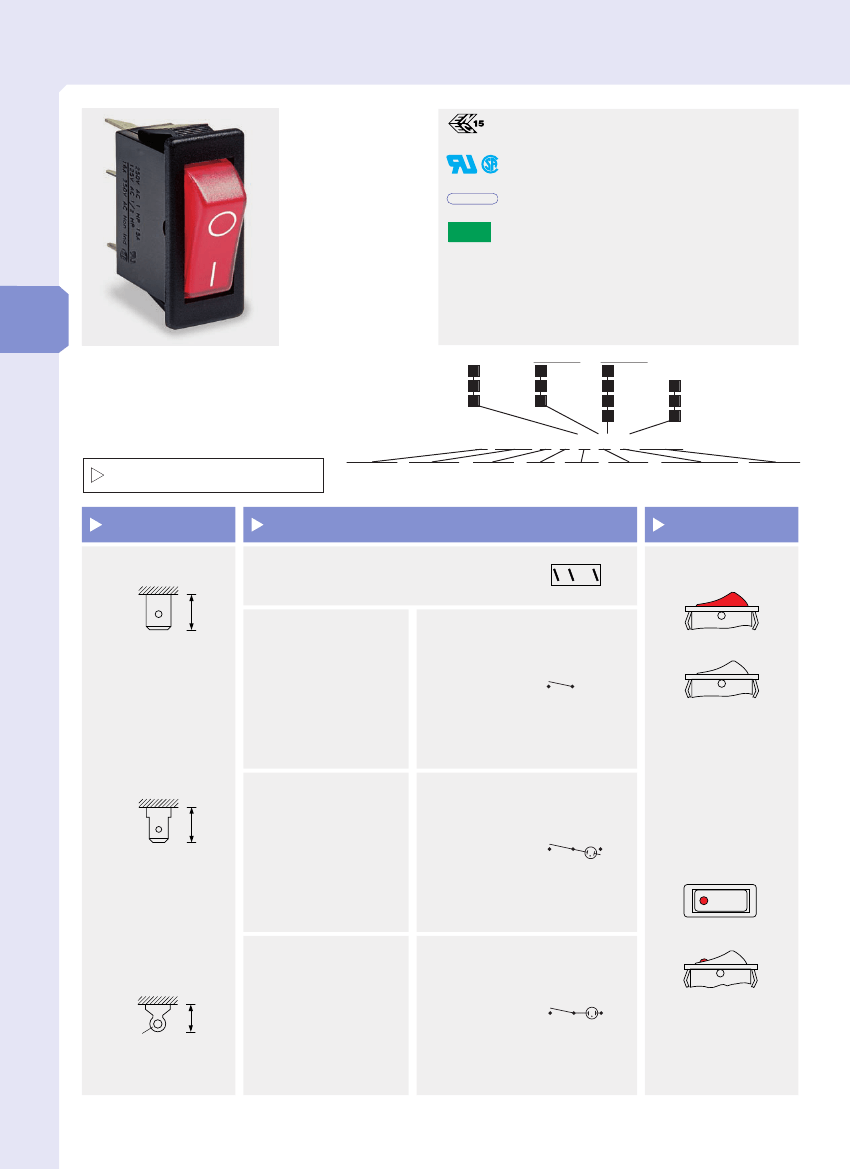

5500 Lit Rocker Switches - Single Pole
16A 250Vac
Standard rocker switch
Illuminated
Choice of switching
circuits
Choice of bezel styles
Choice of 6 panel cut
outs
We match all major
brands
Matching indicator
rocker
switches
Single pole
Splashproof option
Panel cut out ‘A’ style:
27.3 x 12.3
mm
B
BLACK
R
RED
W
WHITE
NON-LIT
B
BLACK
R
RED
W
WHITE
A
C
G
R
LIT
AMBER
CLEAR
GREEN
RED
2
125V NEON
3
250V NEON
7
12V INCANDESCENT
In house test
16(4)A 250Vac T85
10(3)A 250Vac T100, (12A 250Vac T125 for P rocker only)
UL CSA 15A 250Vac, CSA 16A Non Ind 250Vac
UL CSA 250Vac 1hp, 125Vac 1/2hp
UL 85˚C, file E45221, CSA file LR10990
Inrush 24A to EN61058-1
RoHS compliant
µ contact gap.
Technical data on pages 4 & 5 (switches), 6 (indicators).
For Twin units repeat the order details for both the left and right sides.
RoHS
C 5503 A L B R 2 602W
ORDER FORMAT
TERMINAL
C
Approvals & ratings vary with function
ON OFF Switches - ON when pressed over terminal 3
9.1
1
2
3
TERMINAL
CODE
FUNCTION
CODE
FUNCTION
ROCKER
CODE
BODY BODY
CODE COLOR
ROCKER
COLOR
LAMP VOLTAGE
(if required)
ROCKER
A
Softline (Matt only)
LEGEND &
OPTIONS
Lit
6.3 x 0.8
5500
µ
ON - OFF
H
9.1
5503
µ
preferred option
4.8 x 0.8
ON - OFF
Lit
Switched neutral
P
Lit window (Matt only)
T
5508
µ
7.0
Ø2.1
for special
applications
ON - OFF
Lit
Unswitched neutral
Solder
24
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
C5503AL
C5500AL
C5503PL
rocker
switches
C5503/5430AL
C5503/5503AL
C5503/5503PL

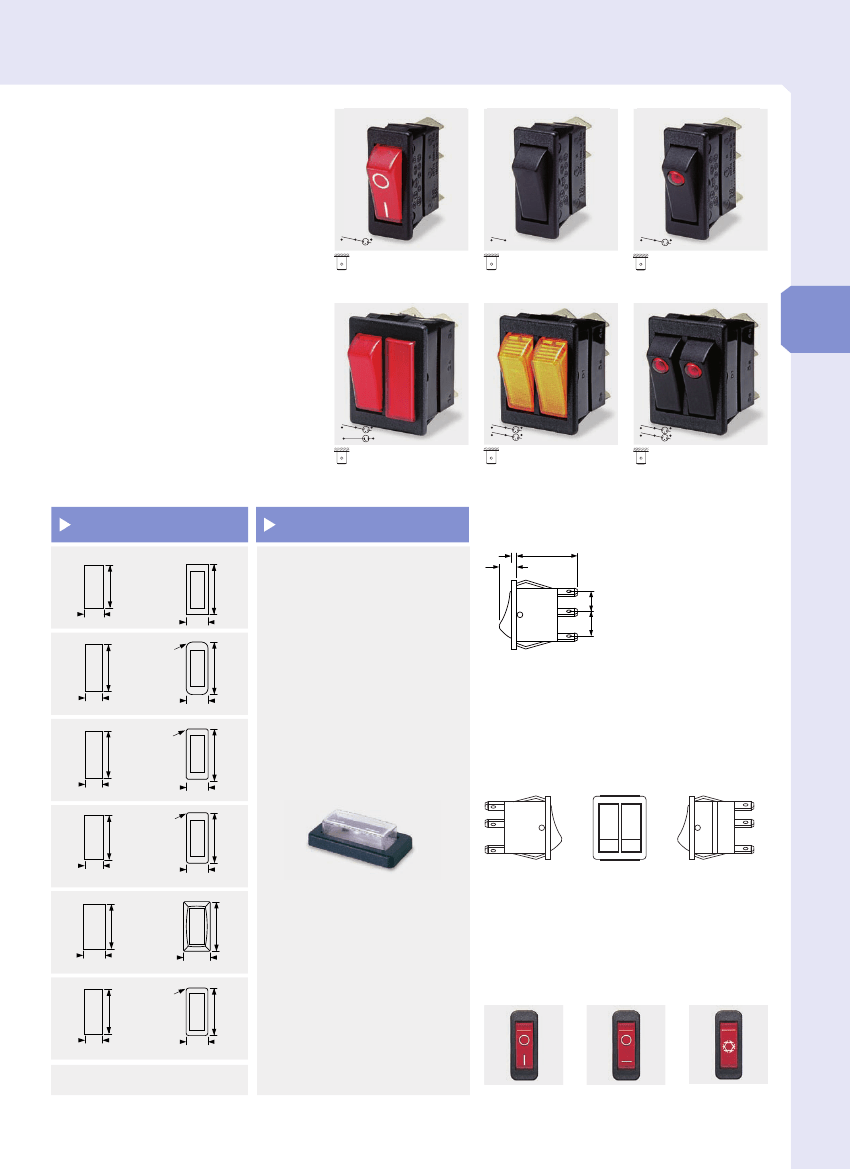

BODY
A
Panel cut-outs
27.2
27.3
OPTIONS
Bezel
30.2
DIMENSIONS
(mm)
2.0
28.6 Max
7.6
9.2
13.2
Finish
Matt is standard
Color
Call factory for custom colors
A full range is available for large orders
Panel thickness
0.75 to 3.3mm
A,Q
L,B,T
0.75 to 2.5mm
R
0.75 to 3.0mm
Matt only
12.2/12.3
14.0
R3.5
30.0
30.1
11.0/11.1
33.4
Legend printing
Select from the examples or
call factory for custom legends
B
Lamp voltage
Call factory for details
Hole Plugs 1530ABB
(SP)
1580ABB
(DP)
Dummy units to fill unused panel holes
Terminal spacing - Poles 10.8 between centres (twin units)
Matt only
14.0
L
R1.0
30.0
30.1
11.0/11.1
31.9
Twin units
Two single switches or a switch and an indicator light can be
assembled side by side in one double pole body.
For 5500 range panel cut-out details (L, B and T) call sales.
Protective covers
(designed to IP65)
Snap on to A, L, Q or T bodies.
(add G74 suffix for single & G72 for double pole).
This reduces panel thickness by 1mm.
Matt only
R1.6
14.0
Q
28.2
28.3
11.5/11.6
1
2
1
2
3
4
5
6
4
5
6
30.2
3
Matt
14.0
R
28.5
28.6
14.0/14.1
31.5
17.0
For twin units the first set of order format details refer to the
left hand unit, when looking at the front of the assembly.
(This has terminal numbers 1, 2 & 3)
Matt only
T
28.2
28.3
11.5/11.6
R1.6
30.2
14.0
Panel sealing washers W46 (Single Pole) and
W42 (Double Pole) are available for these
body types but reduce panel thickness by a further
1.00
mm.
Examples of our range of legend printing
( ) is legend color B-Black, W-White, R-Red
Matt only
For all options call the factory
Cut-outs must be punched in the direction of insertion
602(W)
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
3064(W)
706(W)
25
