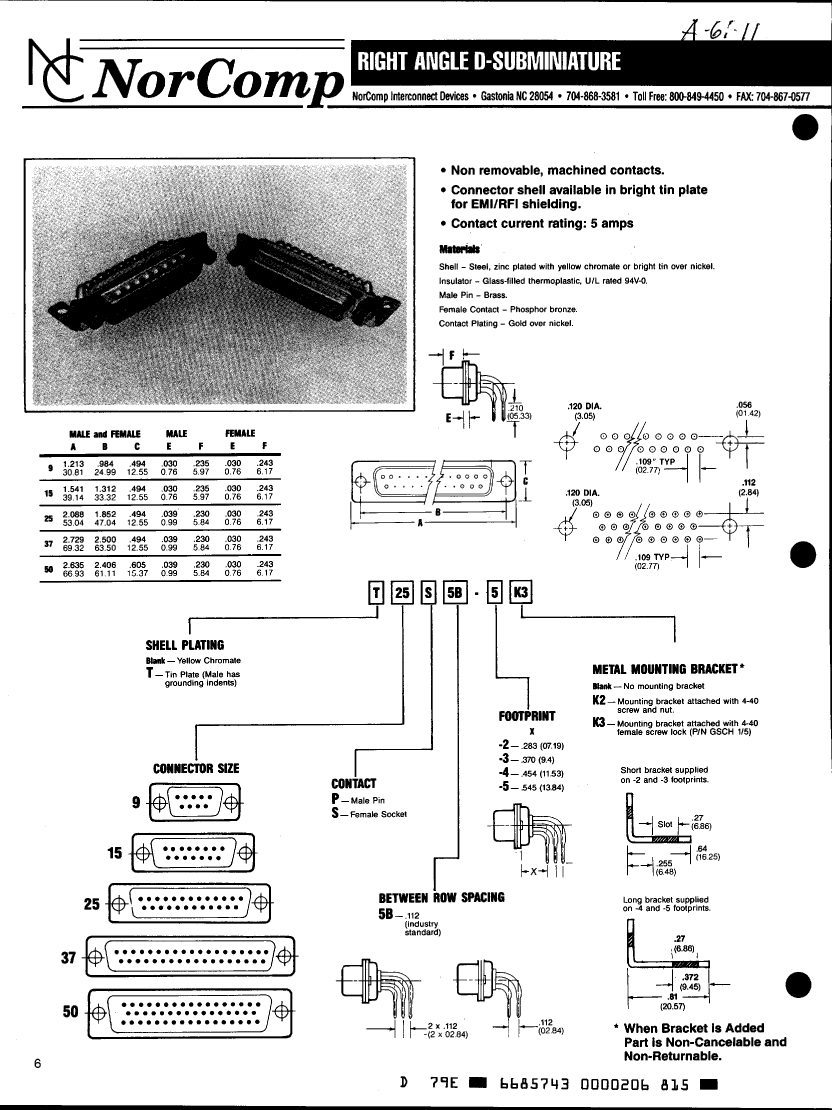

T9S5B-3K3 Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Is Samacsys	N
Objectid	300099015
Reach Compliance Code	Compliant
ECCN code	EAR99
body length	1.213 inch
Terminal length	0.21 inch
body width	0.494 inch
subject depth	0.594 inch
Connector type	D SUBMINIATURE CONNECTOR
Installation method	RIGHT ANGLE
Installation type	BOARD
Rated current (signal)	5 A
Total number of contacts	9
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
insulator material	GLASS FILLED POLYETHYLENE
PCB row number	2
Number of rows loaded	2
Shell material	STEEL
Terminal pitch	2.7686 mm
Plug contact pitch	0.109 inch
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Shell surface	TIN
Termination type	SOLDER
Contact style	RND PIN-SKT
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Match contact row spacing	0.112 inch
Installation option 2	MOUNTING FLANGE
PCB contact row spacing	2.8448 mm
Contact completed and terminated	GOLD
Guideline	UL
