FAP-26-162X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FAP-26-162X

FAP-26-162X: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

FAP-26-162X Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle

FAP-26-162X Parametric

Parameter Name	Attribute value
YTEOL	0
Objectid	303086539
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Contact resistance	30 mΩ
Installation type	CABLE
Number of rows loaded	2
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
insulator material	POLYBUTYLENE TEREPHTHALATE
Rated current (signal)	1 A
Total number of contacts	26
Other features	CABLE ON ONE END
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Mixed contacts	NO
Board mount options	M2.6 THREADED HOLES
Contactor design	PREASSEM CONN
Contact completed and terminated	GOLD OVER NICKEL
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Termination type	IDC
Plug contact pitch	0.1 inch
Installation option 2	LOCKING
Number of connectors	ONE
body width	0.346 inch
subject depth	1.098 inch
body length	2.06 inch
Terminal length
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	SHRD CENTER
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
JESD-609 code	e4
Guideline	UL
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C

Preview

Download Datasheet

View All

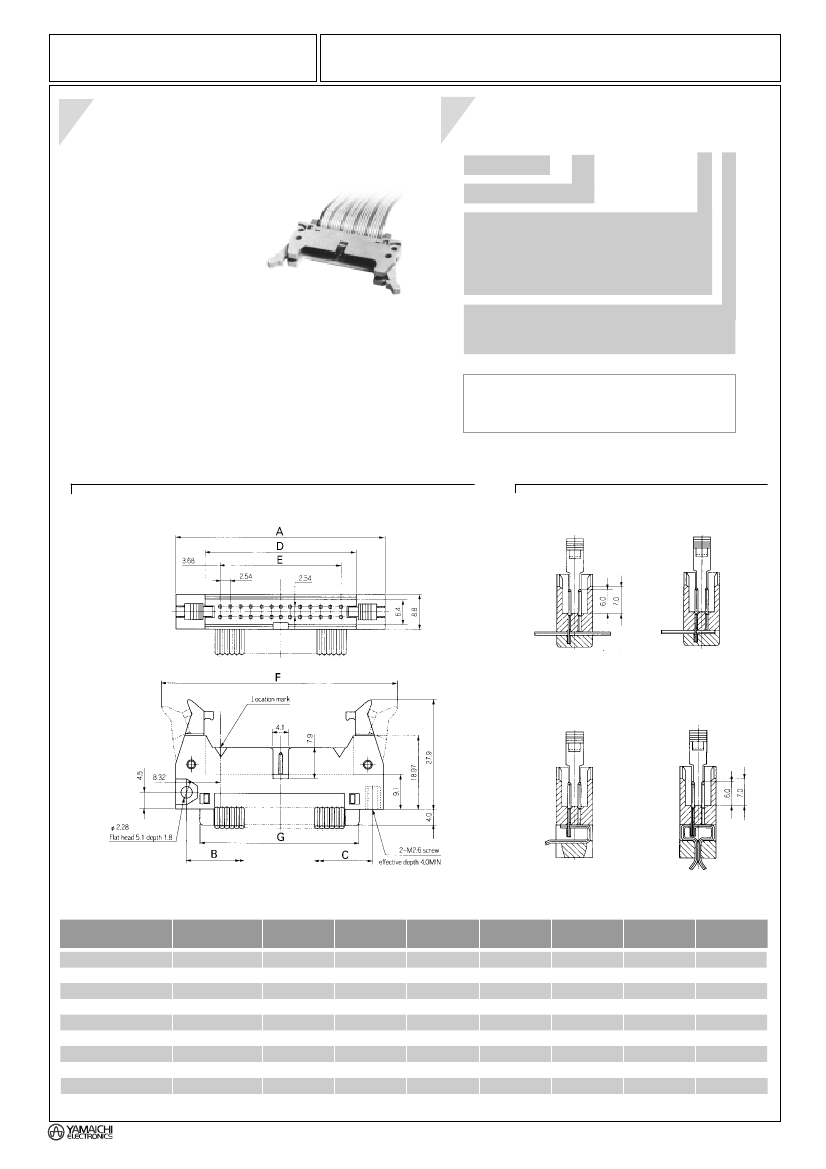

FAP Series

Specifications

IDC - Latch Header Plug,

(2.54mm Pitch)

Part Number

(Details)

FAP

Series (plug)

No. of Leads

Type of Cable Connection:

1 = Cable on Both Ends

(w/o. Strain Relief)

2 = Cable on One End

(w/o.Strain Relief)

3 = Cable Folded on One End

(w. Strain Relief)

4 = Cable on Center

(w. Strain Relief)

Position of PCB Retaining Screws:

X = Side of Connector

(Connector Horizontal to PCB)

Y = Back of Connector

(Connector Perpendicular to PCB)

Insulation Resistance: 1,000MΩ min. at 500 V DC

Withstanding Voltage: 1,000 V AC rms for 1 minute

Contact Resistance:

30mΩ max. at 10mA

Current Rating:

Operating Temp. Range: –20°C to +105°C

- 34

16 * *

Materials and Finish

Housing: PBT, UL 94V-0 rated

Contacts: Copper Alloy

Plating: Gold over Nickel

Features

2.54mm contact pitch latch header plug for flat cables

Variations include latch header plugs (for PC-board connection

and IDC) and IDC sockets

Two-point contact of the flat cable gang wired sockets ensures

high reliability

Applicable Cables

AWG 28 stranded wire, AWG 30 solid wire,

1.27mm pitch

Applicable Dimensions

(Reference Only)

Cable Connection Types

Without Strain Relief

FAP-**-161*

FAP-**-162*

With Strain Relief

FAP-**-16*X

YAMAICHI ELECTRONICS - Munich 089 / 451021-0

FAP-**-16*Y

FAP-**-163*

No. of

Leads

FAP-**-164*

Part No.

FAP-10-16**

FAP-16-16**

FAP-20-16**

FAP-26-16**

FAP-30-16**

FAP-34-16**

FAP-40-16**

FAP-50-16**

FAP-60-16**

FAP-64-16**

32.00

39.62

44.70

52.32

57.40

62.48

70.10

82.80

95.50

100.58

26.80

34.42

39.50

47.12

52.20

57.28

64.90

77.60

90.30

95.38

26.80

34.42

39.50

47.12

52.20

57.28

64.90

77.60

90.30

95.38

17.52

25.14

30.22

37.84

42.92

48.00

55.62

68.32

81.02

86.10

10.16

17.78

22.86

30.48

35.56

40.64

48.26

60.96

73.66

78.74

47.52

55.14

60.22

67.84

72.92

78.00

85.62

98.32

111.02

116.10

20.20

27.82

32.90

40.52

45.60

50.68

58.30

71.00

83.70

88.78

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
