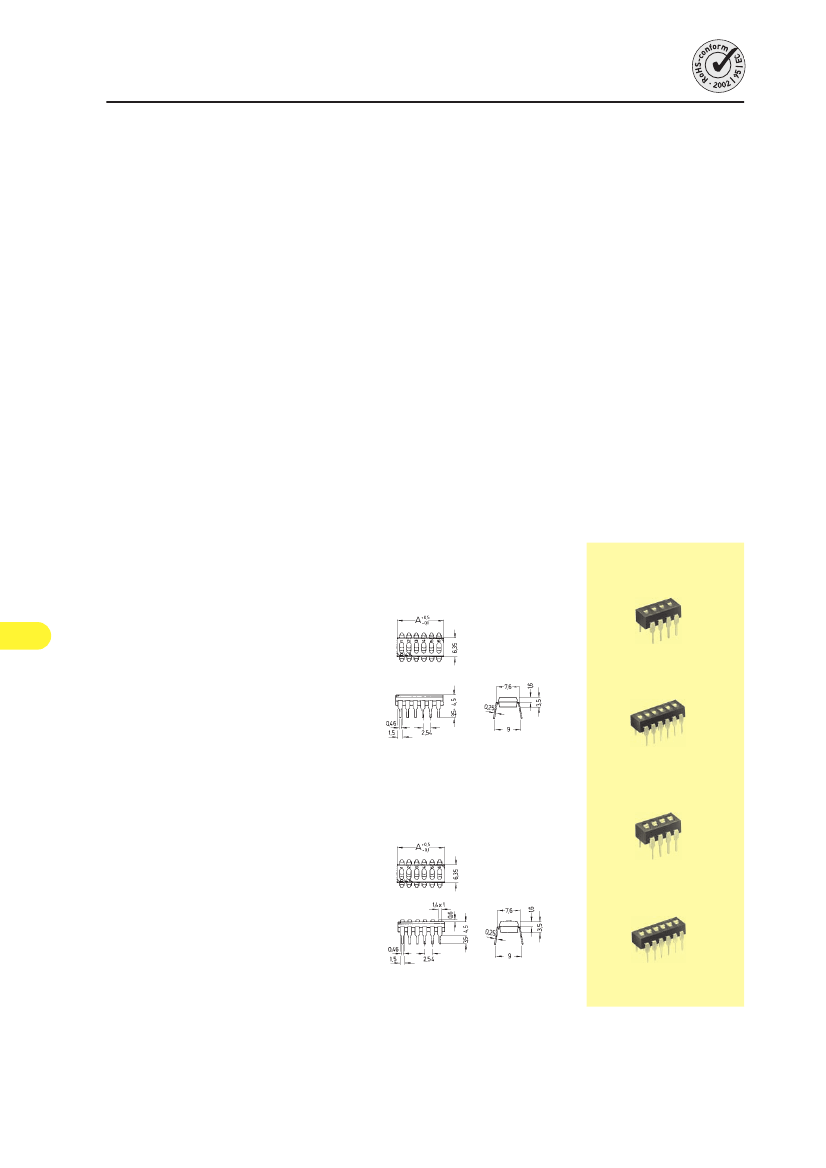

Dual-in-line Switches
Specifications:
Contact rating:
Contact resistance:
Insulation resistance:
Capacity:
Dielectric strength:
Operating temperature:
Mechanical life:
Shock resistance:
Vibration:
Contacts:
Terminals:
Material:
Construction:
Mounting:
Slide position:
Soldering conditions:
50 V DC, 100 mA
< 50 mΩ
> 1000 MΩ at 100 V DC
< 5 pF between 2 poles
500 V, 50 Hz for the duration of 1 minute
– 20° to + 80° C
minimum 5000 operations per pole
contact interruption < 10 µsec with triple shock in all 6 directions,
shock conditions: 20 G, 11 msec duration (sine half wave)
contact interruption: < 10 µsec at vibration test in accordance with
MIL-STD-202 D, method 204, condition C
copper beryllium, 0,3 µm gold-plated over 1 µm nickel
PC terminals, nickel silver, 0,3 µm gold-plated over 1 µm nickel
case: PBTP; slide: PA
case sealed
series 700: slide recessed, sealed with protective tape
on pc-board
OFF
auto-soldering – max.: 3 sec 270° C
Models:
Series DSS 700
Type
Poles
2
3
4
5
6
7
8
10
Length (A)
6,3 mm
8,8 mm
11,4 mm
13,9 mm
16,4 mm
19,0 mm
21,5 mm
26,6 mm
5
DSS 702
DSS 703
DSS 704
DSS 705
DSS 706
DSS 707
DSS 708
DSS 710
Series DSS 800
Type
DSS 802
DSS 803
DSS 804
DSS 805
DSS 806
DSS 807
DSS 808
DSS 810
Poles
2
3
4
5
6
7
8
10
Length (A)
6,3 mm
8,8 mm
11,4 mm
13,9 mm
16,4 mm
19,0 mm
21,5 mm
26,6 mm
