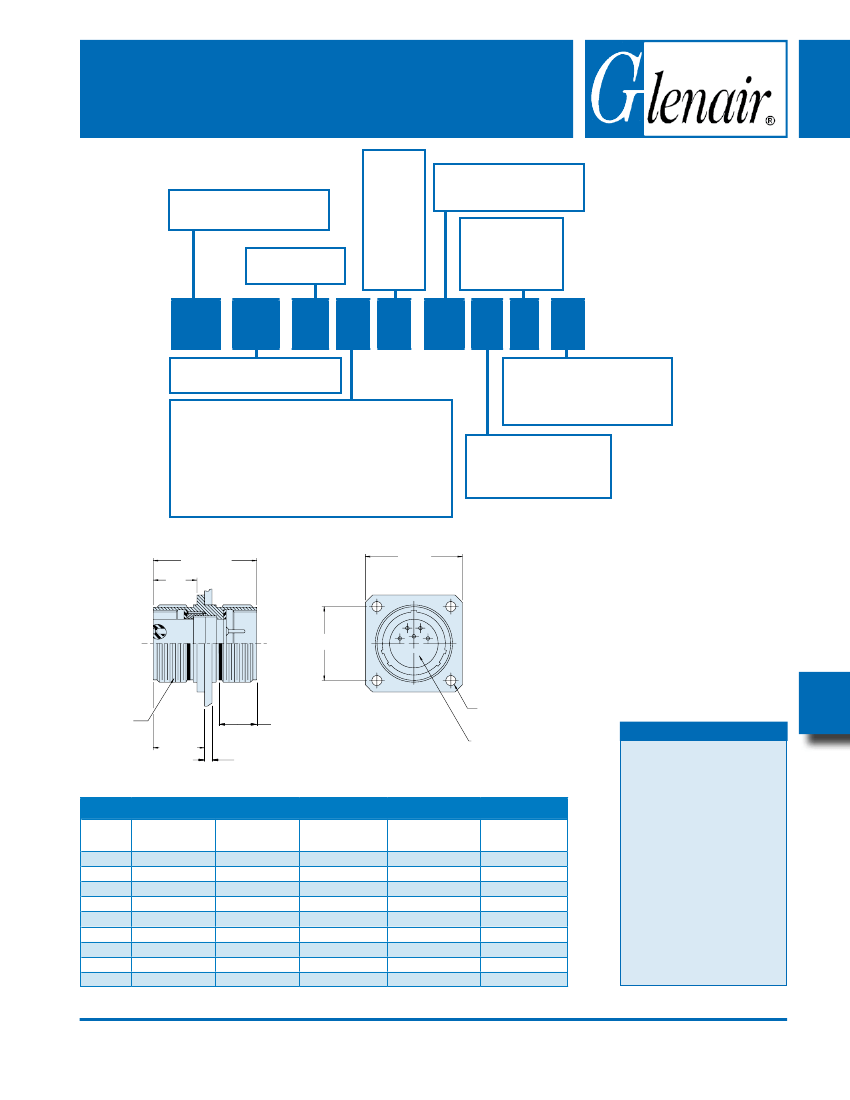

233-104-00
Wall Mount Environmental Bulkhead Feed-Thru
MIL-DTL-38999 Series III Type
Shell Size
09
11
13
15
17
19
21
23
25
Connector Series
233
-
D38999 Series III Type
Shell Style
00
- Wall Mount
Insert Arrangement
Per MIL-DTL-38999 Series III
MIL-STD-1560
Alternate Key
Position
A, B, C, D, E
(N = Normal)
233
-
104
-
00 M 11
-
35
Connector Type
104
-
Env. Bulkhead Feed-Thru
Connector Material and Finish
M
- Aluminum / Electroless Nickel
NC
- Aluminum / Zinc-Cobalt
NF
- Cad / O.D. Over Electroless Nickel (1000hr Salt Spray)
ZN
- Aluminum Zinc-Nickel Olive Drab
MT
- Aluminum / Ni-PTFE 1000 Hour Grey
TM
AL
- Aluminum / Pure Electrodeposited Aluminum
P N
-
01
Panel Accomodation
01
- .0625″ (Min) .125″ (Max)
02
- .0625″ (Min) .250″ (Max)
03
- .0625″ (Min) .500″ (Max)
Contact Termination
P
- Pin on Flange Side
S
- Socket on Flange Side
1. 53 MAX
1.53 Max
D
D Sq.
SQ
Flange Side
Ref
Style
E B
STYL
B
Flange Mount
FL ANGE MOUNT
. 62
.62
SQ
C
C
Sq.
A THREAD
A Thread
. 75 REF
.75 Ref
.520 Max
. 520 MAX.
FUL L
Mated
I NDI CATOR RED BAND
Fully
Y MATED
Indicator Red Band
PL ACES
2
2
Places
Panel Accomodation
( THI S SI DE ONL Y)
. 125 MAX PANEL ACCOMMODATI ON
DI A
B
B
Diameter
4
Places
4
PL ACES
SEE MI L - C- 38999 FOR
Insert Arrangement per
I NSERT A RRANGEMENTS
MIL-DTL-38999 Series III
MIL-STD-1560
APPLICATION NOTES
1.
Material/finish:
Shell, lock ring, jam
nut—Al alloy, see Table II
Contacts—Copper alloy/
gold plate
Insulators—High grade
rigid dielectric/N.A.
Seals—Silicone/N.A.
For symetrical layouts
only. Power to a given
contact on one end
will result in power to
contact directly opposite,
regardless of identification
letter.
Metric Dimensions
(mm) are indicated in
parentheses
Printed in U.S.A.
E-Mail: sales@glenair.com
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
09
11
13
15
17
19
21
23
25
A THREAD
0.1 P-0.3L-2A
.625
.750
.875
1.000
1.188
1.250
1.375
1.500
1.625
B DIA.
± 0.10 (0.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.128 (3.3)
.156 (4.0)
.156 (4.0)
C DIM.
.719 (18.3)
.812 (20.6)
.906 (23.0)
.969 (24.6)
1.062 (27.0)
1.156 (29.4)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
D DIM.
.938 (23.8)
1.031 (26.2)
1.125 (28.6)
1.219 (31.0)
1.312 (33.3)
1.438 (36.5)
1.562 (39.7)
1.688 (42.9)
1.812 (46.0)
CAGE CODE 06324
DIA MAX.
.859 (21.8)
.984 (25.0)
1.156 (29.4)
1.281 (32.5)
1.406 (35.7)
1.516 (38.5)
1.641 (41.7)
1.766 (44.9)
1.891 (48.0)
2.
3.
© 2008 Glenair, Inc.
www.glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
