1.5KE SERIES
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE- 6.8 TO 550 Volts
1500 Watt Peak Power 5.0 Watt Steady State
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O
• Glass passivated chip junction in Molded Plastic package
• 1500W surge capability at 1ms
• Excellent clamping capability
• Low zener inpedance
• Fast response time: typically less than
1.0 ps from 0 volts to BV min.
• Typical IR less than 1µA above 10V
• High temperature soldering guaranteed:
250°C/10 seconds/ .375", (9.5mm) lead
length, 5lbs., (2.3kg) tension

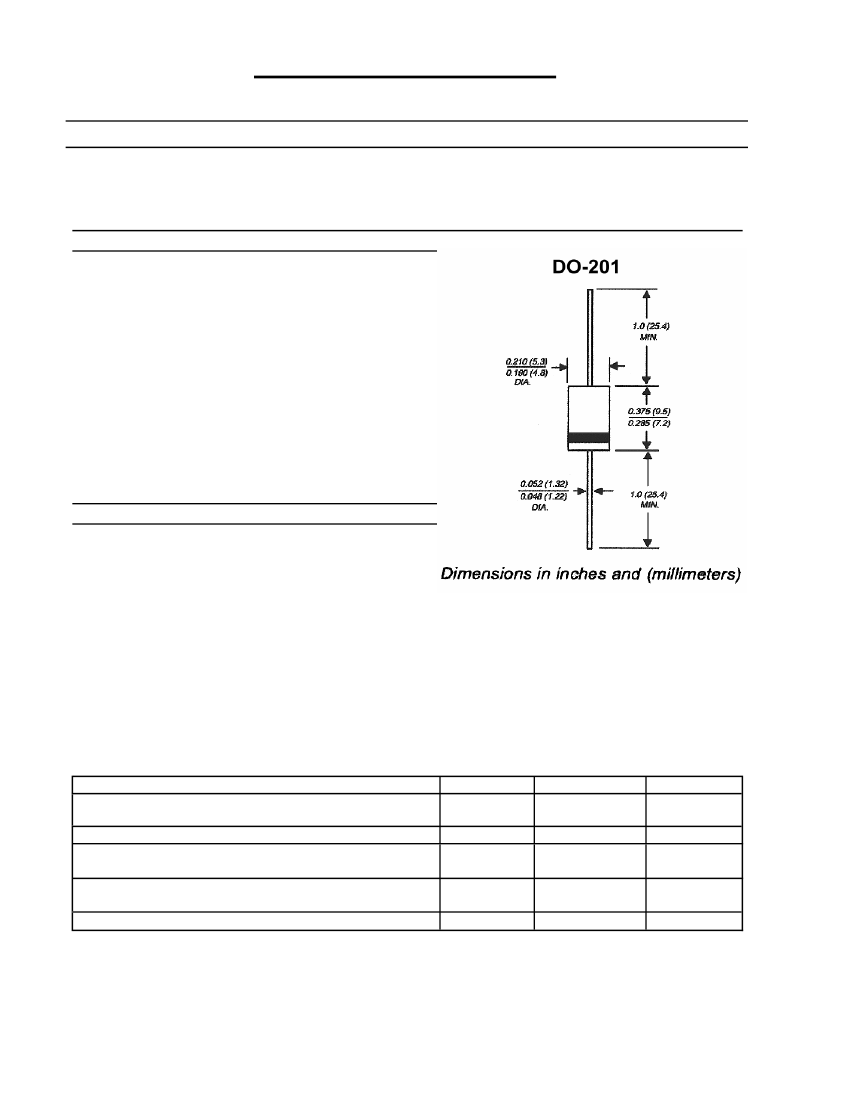

MECHANICAL DATA
Case: JEDEC DO-201 Molded plastic
Terminals: Plated Axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bipolar
Mounting Position: Any
Weight: 0.045 ounces, 1.2 grams
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types 1.5KE6.80 thru types 1.5KE550 (e.g. 1.5KE6.8C, 1.5KE550CA)
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation at TA = 25 °C, TP = 1ms
(NOTE 1)
SYMBOL
P
PPM
I
PPM
VALUE
Minimum 1500
SEE TABLE 1
6.5
200
-55 +175
UNITS
Watts
Amps
Watts
Amps
°C
Peak Pulse Current of on 10/1000 µs waveform
(Note 1)
Steady State Power Dissipation at
T
L
= 75°C
Lead lengths .375", 9.5mm
(Note 2)
Peak Forward Surge Current, 8.3ms Single Half Sine-wave
Superimposed on Rated Load,
(JEDEC Method)(Note 3)
Operatings and Storage Temperature Range
P
M
(AV)
I
FSM
T
J
, T
STG
NOTES:
1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.
2. Mounted on Copper Pad area of 0.8x0.8" (20x20mm) per Fig.5.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.
Certified RoHS Compliant
UL File # E223026
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

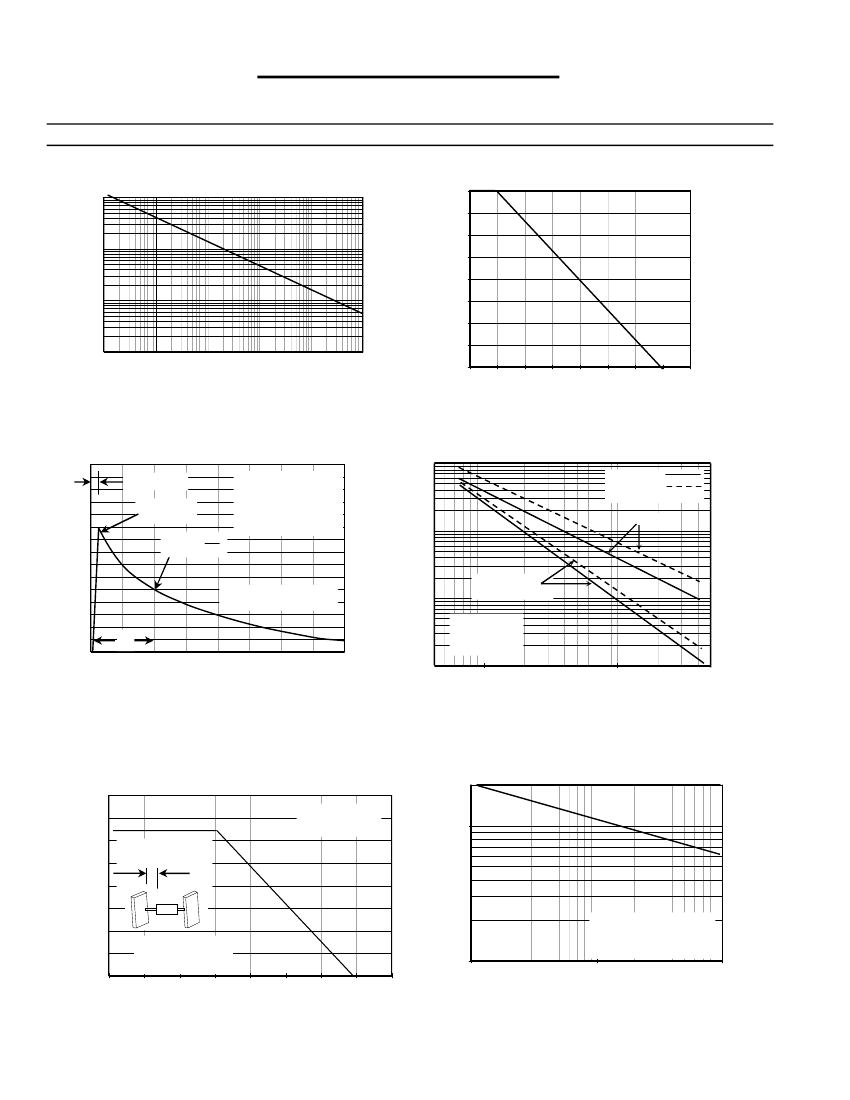

RATING AND CHARACTERISTIC CURVES 1.5KE SERIES
Fig. 1 - Peak Pulse Power Rating Curve
100
Fig.2 - Pulse Derating Curve
100
87.5
P
PPM
-Peak Pulse Power
(kW)
Peak Pulse Power (P )
PP
or Current (I
PP
)
Derating in Percentage,%
1.0µs
10µs
100µs
1.0ms
10ms
75
62.5
50
37.5
25
12.5
0
0
25
50
75
100
125
150
175
200
10
1
0.1
0.1µs
t
d
- Pulse Width (sec.)
T
A
- Ambient Temperature
Fig.3 - Pulse Waveform
150
Fig. 4 - Typical Junction Capacitance
10000
10000
Unidirectional
Bidirectional
I
PPM
- Peak Pulse Current,% I
RSM
t
r
= 10µsec.
Peak Value
I
PPM
100
Half Value- I
PPM
2
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
1000
C
J
- Capacitance (pF)
V
R
= 0
1000
50
10/1000µsec.Waveform
as defined by R.E.A.
100
V
R
= Rated
Stand-off Voltage
100
f = 1MHz
Vsig = 50mVp-p
T
J
= 25°C
t
d
0
0
1.0
2.0
3.0
3.0
4.0
10
4.0
1
10
5
1000
t - Time(ms)
10
10
100
500
1000
VWM - Reverse Stand-Off Voltage (V)
Fig. 5 - Steady State Power
Derating Curve
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
1.6x1.6x.040"
(40x40x1mm)
Copper Heat Sinks
25
50
75
100
125
150
175
200
Fig.6 - Maximum Non-Repetitive Forward
Surge Current Uni-Directional Use Only
200
P
M(AV)
,Steady State Power
Dissipation (W)
L=0.375" (9.5mm)
Lead Lengths
Peak Forward Surge
Current,Amperes
60Hz
Resistive or
Inductive Load
100
8.3ms Single Half Sine-Wave
(JEDEC Method)
T
J
= T
J
max,
10
1
10
100
0
0
Number of Cycles at 60 Hz
T
L
- Lead Temperature (°C)
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemicondutor.com Web: www.mdesemiconductor.com
1500 Watt TVS
UNI-POLAR
BI-POLAR
REVERSE
STANDOFF
VOLTAGE
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
450.00
459.00
467.00
MAXIMUM
BREAKDOWN BREAKDOWN
TEST
CLAMPING
VOLTAGE
VOLTAGE
CURRENT
VOLTAGE @I
PP
V
BR
(V)
V
BR
(V)
(I
T
)
MIN. @ I
T
MAX. @ I
T
V
C
(V)
mA
6.45
7.13
7.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237.00
285.00
332.00
380.00
418.00
456.00
485.00
503.50
513.00
522.50
7.14
7.88
8.61
9.50
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
315.00
368.00
420.00
462.00
504.00
535.00
556.50
567.00
577.50
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
PEAK
PULSE
CURRENT
I
PP
(A)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
7.3
6.9
6.5
6.2
5.5
4.6
4.4
3.7
3.2
2.8
2.5
2.3
2.1
2.1
2.0
2.0
REVERSE
LEAKAGE
@ V
RWM
I
R
(µA)
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
1.5KE6.8A
1.5KE7.5A
1.5KE8.2A
1.5KE9.1A
1.5KE10A
1.5KE11A
1.5KE12A
1.5KE13A
1.5KE15A
1.5KE16A
1.5KE18A
1.5KE20A
1.5KE22A
1.5KE24A
1.5KE27A
1.5KE30A
1.5KE33A
1.5KE36A
1.5KE39A
1.5KE43A
1.5KE47A
1.5KE51A
1.5KE56A
1.5KE62A
1.5KE68A
1.5KE75A
1.5KE82A
1.5KE91A
1.5KE100A
1.5KE110A
1.5KE120A
1.5KE130A
1.5KE150A
1.5KE160A
1.5KE170A
1.5KE180A
1.5KE200A
1.5KE220A
1.5KE250A
1.5KE300A
1.5KE350A
1.5KE400A
1.5KE440A
1.5KE480A
1.5KE510A
1.5KE530A
1.5KE540A
1.5KE550A
1.5KE6.8CA
1.5KE7.5CA
1.5KE8.2CA
1.5KE9.1CA
1.5KE10CA
1.5KE11CA
1.5KE12CA
1.5KE13CA
1.5KE15CA
1.5KE16CA
1.5KE18CA
1.5KE20CA
1.5KE22CA
1.5KE24CA
1.5KE27CA
1.5KE30CA
1.5KE33CA
1.5KE36CA
1.5KE39CA
1.5KE43CA
1.5KE47CA
1.5KE51CA
1.5KE56CA
1.5KE62CA
1.5KE68CA
1.5KE75CA
1.5KE82CA
1.5KE91CA
1.5KE100CA
1.5KE110CA
1.5KE120CA
1.5KE130CA
1.5KE150CA
1.5KE160CA
1.5KE170CA
1.5KE180CA
1.5KE200CA
1.5KE220CA
1.5KE250CA
1.5KE300CA
1.5KE350CA
1.5KE400CA
1.5KE440CA
1.5KE480CA
1.5KE510CA
1.5KE530CA
1.5KE540CA
1.5KE550CA
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts without A , the VBR is ±10%
Certified RoHS Compliant
UL File # E223026
