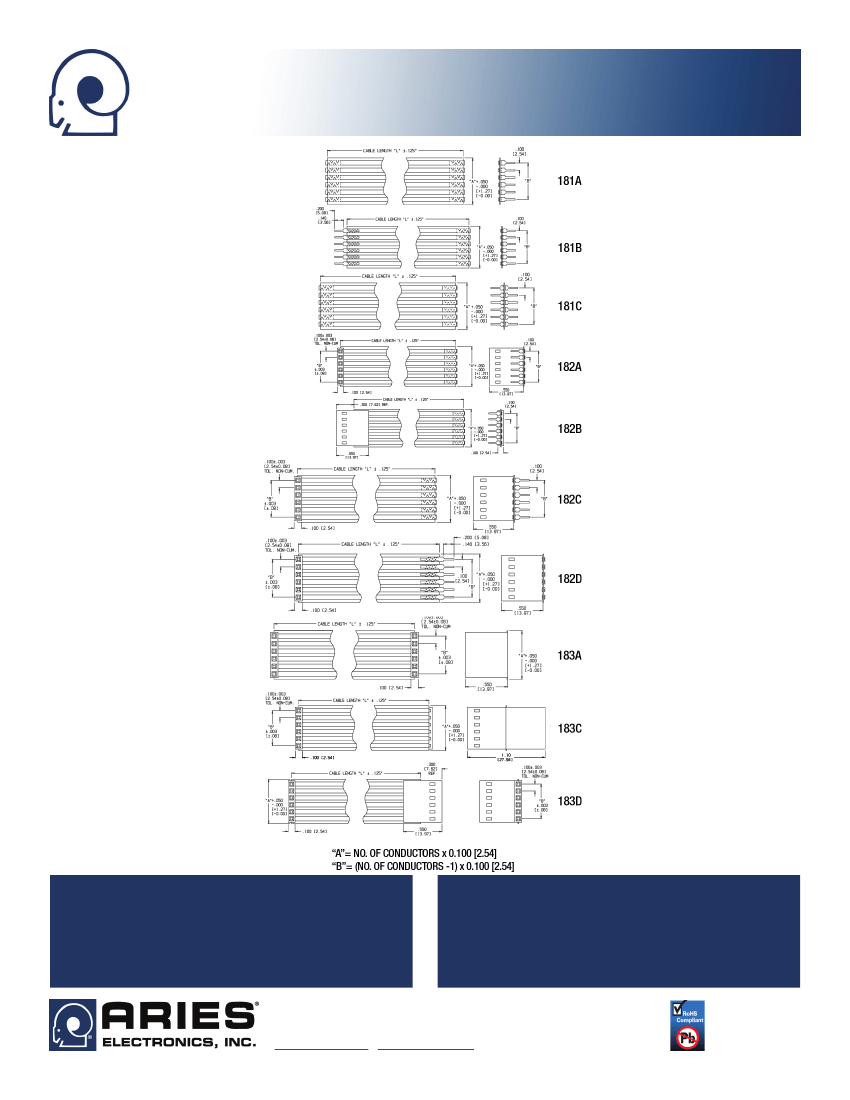

Series 181 thru 183
90° Pin-Staked Flex Jumper
FEATURES
• Combination of Thin, Flexible, Solid Cu Conductors embedded between layers of Tough, Flexible, Flame-
retardant Insulation
GENERAL SPECIFICATIONS
•
•
•
•
•
•
STANDARD CABLE INSULATION:
White UL VW-1, Style 2643 Flame-retardant Polyester (Mylar) adhesive
HT CABLE INSULATION:
High-temp, Flame-retardant Polyimide (Kapton) with acrylic adhesive
CABLE CONDUCTORS:
Solid Cu with a cross-sectional area equivalent to that of 26-gauge AWG
FEMALE HOUSING:
Black UL 94V-0 glass-filled Stanyl 4/6 Nylon

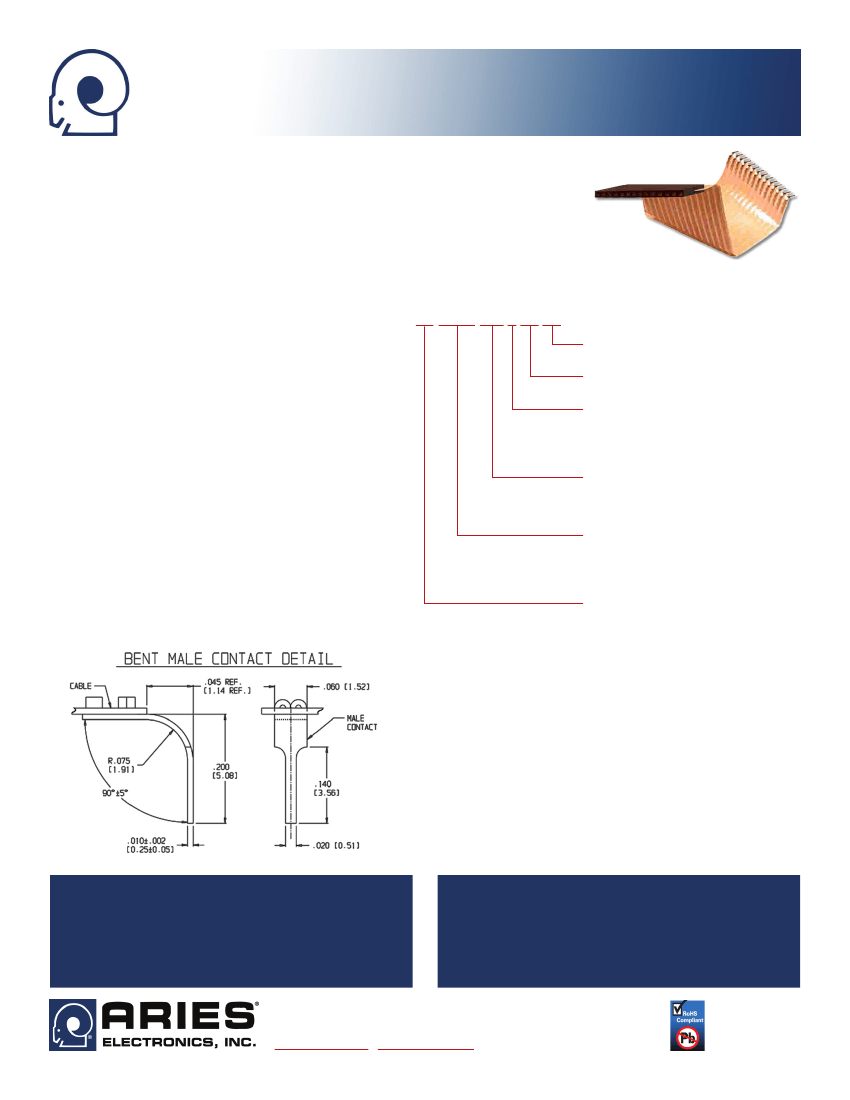

ORDERING INFORMATION
CRIMP-ON PINS:
Spring-tempered Cu 510
XX-XXXX-18X X XX XX
PIN PLATING:
100µ [2.54µ] min. matte Sn per ASTM B545-
97(2004)e1 over 50µ min. Ni per ASTM AMS-QQ-N-290
–OR–
Insulation Option
100µ [2.54µ] min. 93/7 Sn/Pb per SAE AMS-P-81728 over 50µ
HT = High-temp cable insulation
[1.27µ] min. Ni per SAE AMS-QQ-N-290B
Plating Option
CABLE CURRENT RATING:
3 amps
TL = Sn/Pb
Special Order Only
CABLE VOLTAGE RATING:
300V
Bend Option
CABLE DIELECTRIC STRENGTH:
2500V/mil, min. (standard)
A = Both ends bent 90°, same direction
4000V/mil, min. (high-temp)
B = One male end bent 90°
CABLE INSULATION RESISTANCE:
1000 MΩ min. (standard)
C = Both ends bent 90°, opposite direction
100,000 mΩ (high-temp)
D = One female end bent 90°
CONDUCTOR/CONTACT RESISTANCE (avg.):
20 mΩ initial (max.
Series
20 mΩ increase) based on a 2" cable at 20°C
181 = Male, both ends
STD OPERATING TEMPERATURE:
-67 to 221°F [-55 to 105°C]
182 = Male/Female (Sn)
183 = Female, both ends (Sn)
HT OPERATING TEMPERATURE:
-67 to 257°F [-55 to 125°C]
ACCEPTS LEADS (female housing):
0.024-0.030 [0.61-0.76]
Cable Length “L”
(inches)
2" = 002 (min)
square, 0.150 [3.81] long min.
2.5" = 002.5
2.25" = 002.25
2.125" = 002.125
•
•
•
•
•
•
•
•
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE:
0.033 ±0.002 [0.86 ±0.05] dia.
No. of Conductors
(4 thru 40)
NOTE: Please contact the factory for price and availability of any
high-temp (HT) cable larger than 20 conductors.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
MAY SHIP WITH OR WITHOUT POLARIZATION STRIPE UNLESS SPECIFIED
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
