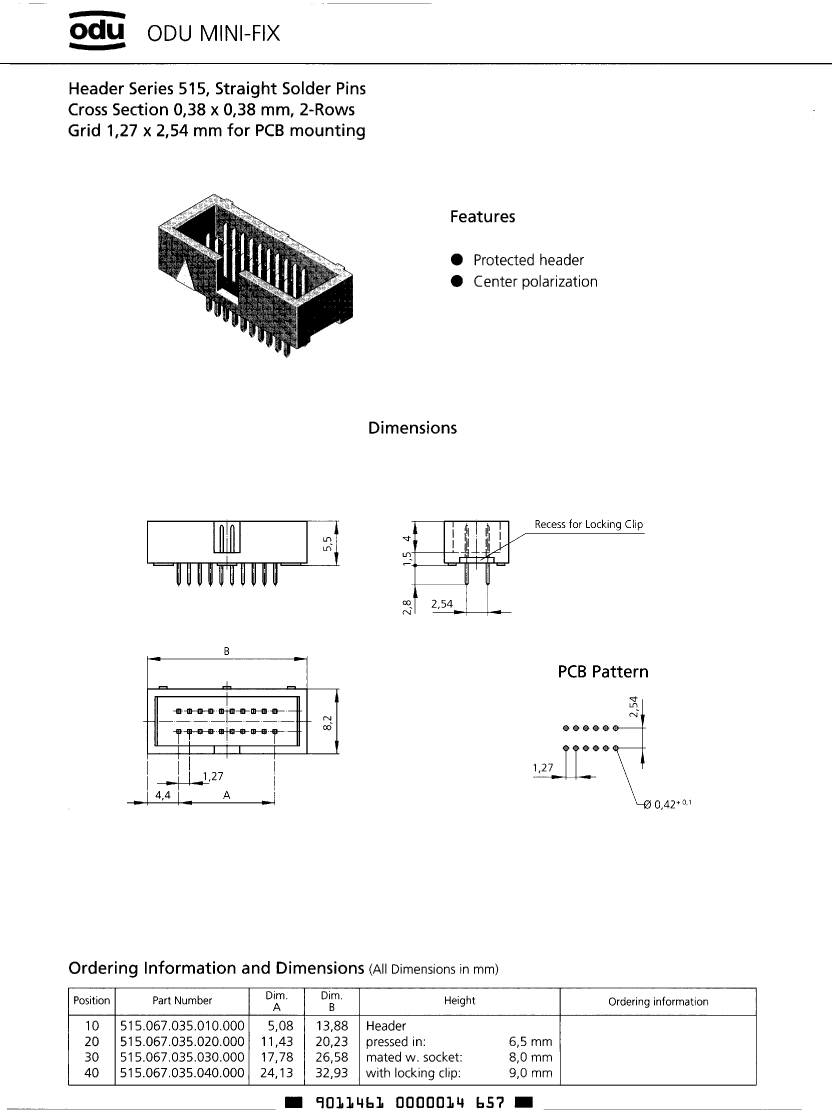

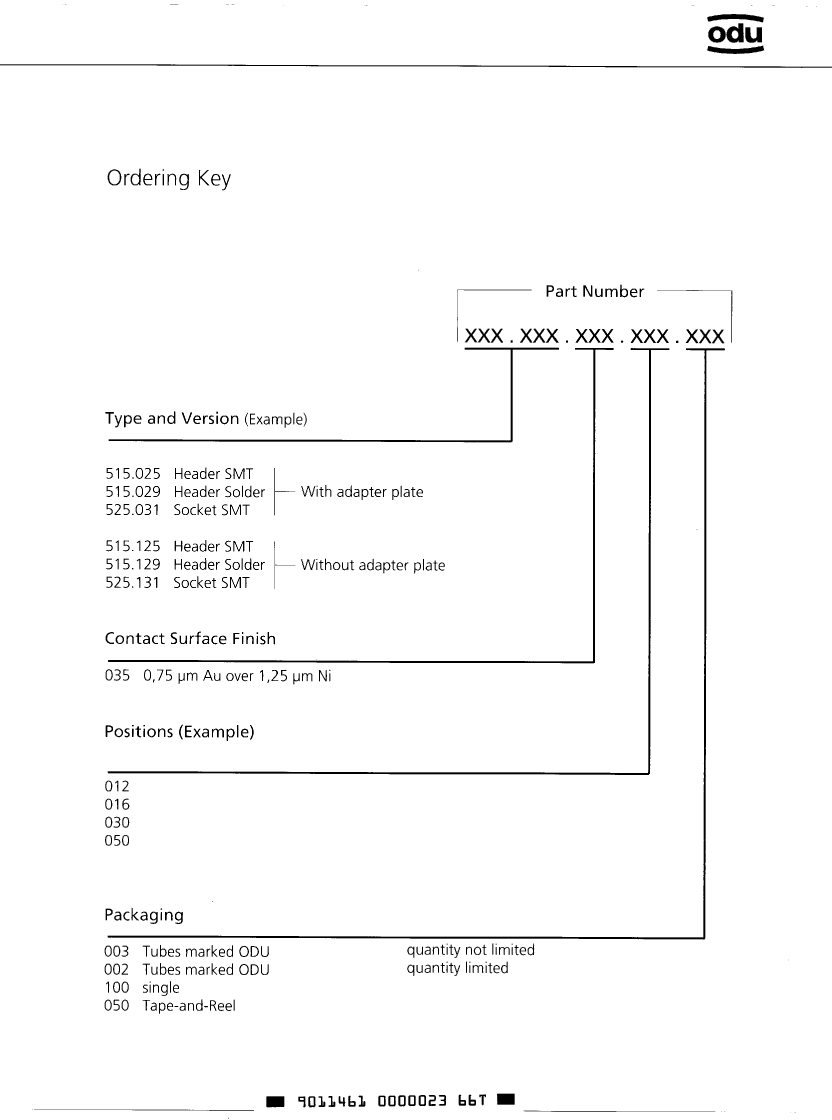

515.067.035.010.000 datasheet, PDF

515.067.035.010.000: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size143KB，3 Pages; ManufacturerODU

Download Datasheet Parametric View All

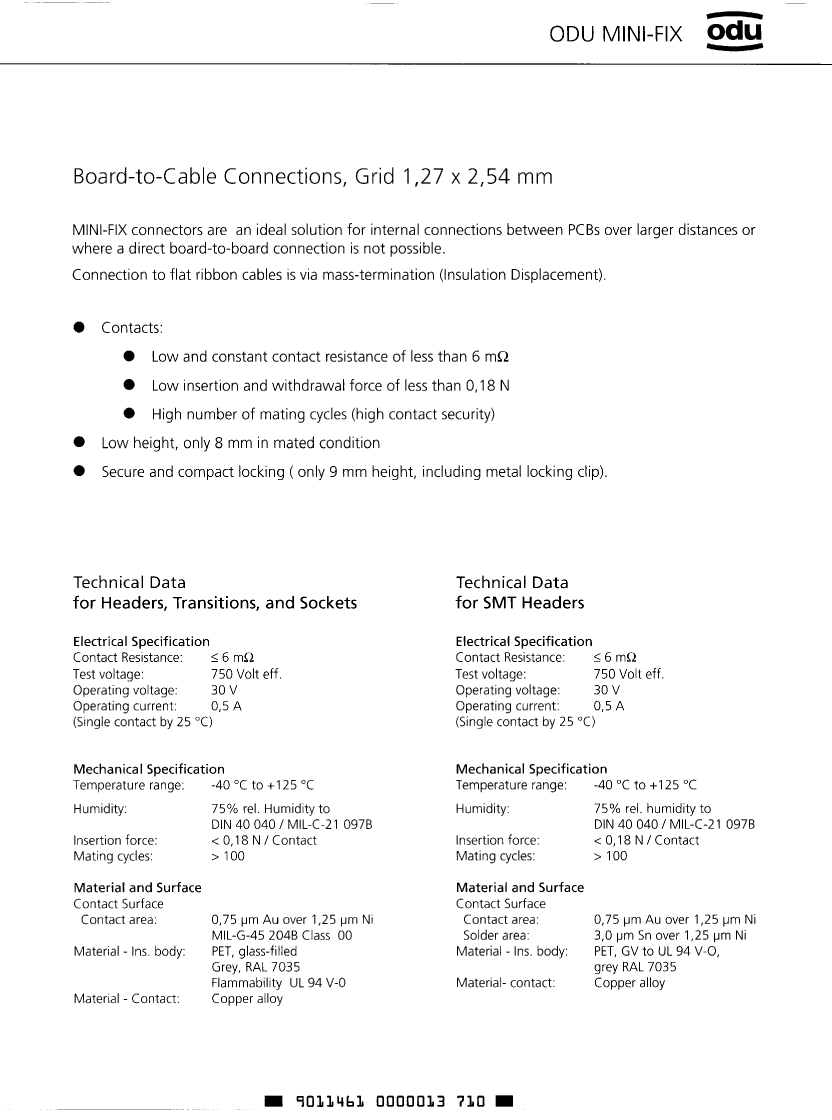

515.067.035.010.000 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Guide Slot, Gray Insulator, Receptacle

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	0
Objectid	300531146
Reach Compliance Code	Unknown
ECCN code	EAR99
Terminal pitch	1.27 mm
Contact to complete cooperation	AU ON NI
Number of rows loaded	2
Total number of contacts	10
Installation type	BOARD
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact resistance	6 mΩ
Rated current (signal)	0.5 A
Other features	NONE
Durability	100 Cycles
insulator material	GLASS FILLED POLYETHYLENE TEREPHTALATE
Installation method	STRAIGHT
PCB row number	2
Body/casing type	RECEPTACLE
body length	0.546 inch
Terminal length	0.11 inch
body width	0.323 inch
subject depth	0.217 inch
Installation option 1	GUIDE SLOT
Number of connectors	ONE
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Insulator color	GRAY
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Termination type	SOLDER
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
PCB contact pattern	RECTANGULAR
Dielectric withstand voltage	750VDC V
Filter function	NO
maximum insertion force	.1668 N
polarization key	SHRD CENTER
Evacuation force-minimum value	.1668 N
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Guideline	UL
