LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Composite
: Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
ØS
35.7 Max
Z'
31.5 Max
VV THREAD
M25x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 2000 hours
: 42.6 g ± 10%
PN: 8D517M75BN
A
ISS
17-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Plug with RFI Shielding
CONTACT TYPE
SHELL SIZE : 17
PLATING
:
M =
Nickel
: Standard Crimp Contact
ORIENTATION : N
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 17-75
FORMAT
Composite Plug 8D series
General linear
Tolerances:
±--
8D
5
-
17
M
75
B
N
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D517M75BN-C
SHEET
1/2

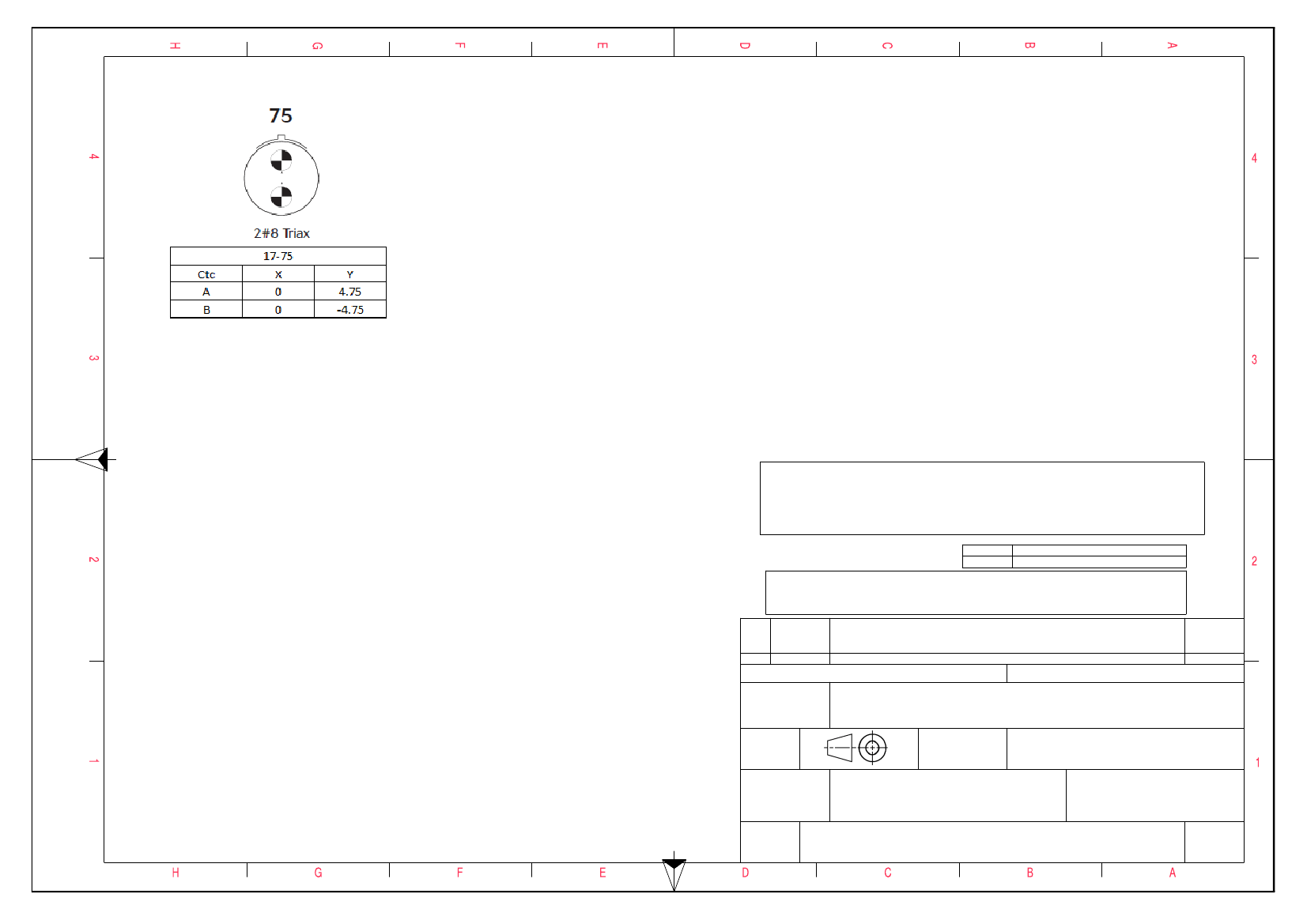

Contact Layout
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
PN: 8D517M75BN
A
ISS
17-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
SCALE
Composite Plug 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D517M75BN-C
SHEET
2/2
