3960IDC-04GU18-L: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Blue Insulator; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

3960IDC-04GU18-L Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, IDC Terminal, Locking, Blue Insulator

3960IDC-04GU18-L Parametric

Parameter Name	Attribute value
Guideline	UL
Is it Rohs certified?	Yes
Is Samacsys	N
Objectid	304379872
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
body width	0.336 inch
subject depth	0.772 inch
body length	0.624 inch
insulator material	POLYAMIDE
Installation type	CABLE
Number of rows loaded	1
Total number of contacts	4
Contact point gender	FEMALE
Contact resistance	10 mΩ
Rated current (signal)	5 A
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Installation option 1	LOCKING
Number of connectors	ONE
Plating thickness	FLASH inch
Termination type	IDC
Insulator color	BLUE
Plug contact pitch	0.156 inch
Mixed contacts	NO
Maximum wire diameter	18 AWG
Dielectric withstand voltage	1500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

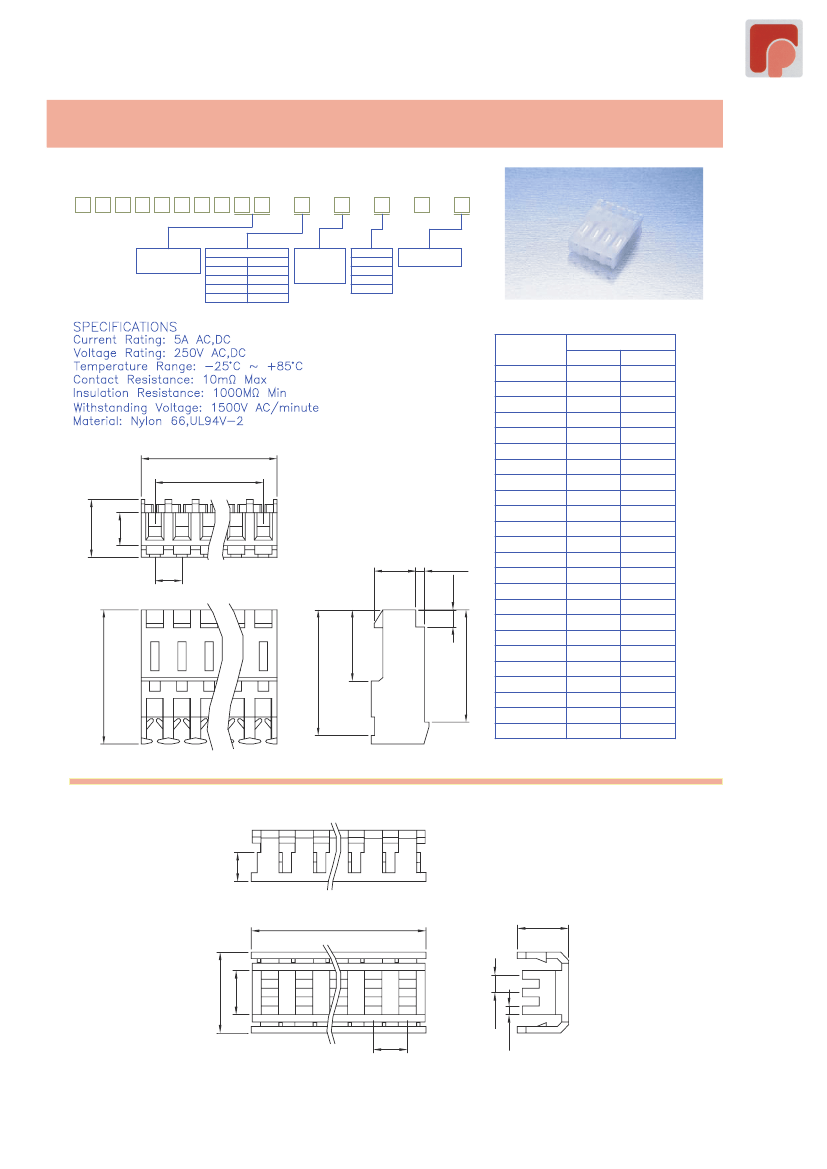

3.96mm HOUSING IDC TYPE & COVER

ORDER INFORMATION

3 9 6 0

?:

Standard Recommend

No. of contacts per row

(02~25)

I D C - X X

X

-

L

?

T:Tin Plated

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

W:Nylon natural

B:Black insulator

U:Blue insulator

R:Red insulator

G:Green insulator

18:18 AWG

20:20 AWG

22:22 AWG

24:24 AWG

26:26 AWG

L:RoHS + Nylon 66

CONTACT

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

Dimensions

A

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

6.336

67.32

71.28

75.24

79.20

83.16

87.12

91.08

95.04

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

43.56

47.52

51.48

55.44

59.40

63.36

67.32

71.28

75.24

79.20

83.16

87.12

91.08

95.04

99.00

B

A

8.54

4.80

10.40

2.50

18.35

16.40

3.96

6.00

1.30

19.60

3.35

COVER

B

5.93

9.35

5.10

2.05

3.96

Part No.:3960IDC-C-L

1.00
