251ULR140S20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 251ULR140S20

251ULR140S20: DescriptionRectifier Diode, 1 Phase, 1 Element, 250A, 1400V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN; CategoryDiscrete semiconductor diode; File Size151KB，5 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

251ULR140S20 Overview

Rectifier Diode, 1 Phase, 1 Element, 250A, 1400V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN

251ULR140S20 Parametric

Parameter Name	Attribute value
Maker	International Rectifier （ Infineon ）
Parts packaging code	DO-9
package instruction	O-MUPM-H1
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY, FREEWHEELING DIODE
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.78 V
JEDEC-95 code	DO-205AB
JESD-30 code	O-MUPM-H1
Maximum non-repetitive peak forward current	3500 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	250 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1400 V
Maximum reverse recovery time	2 µs
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Base Number Matches	1

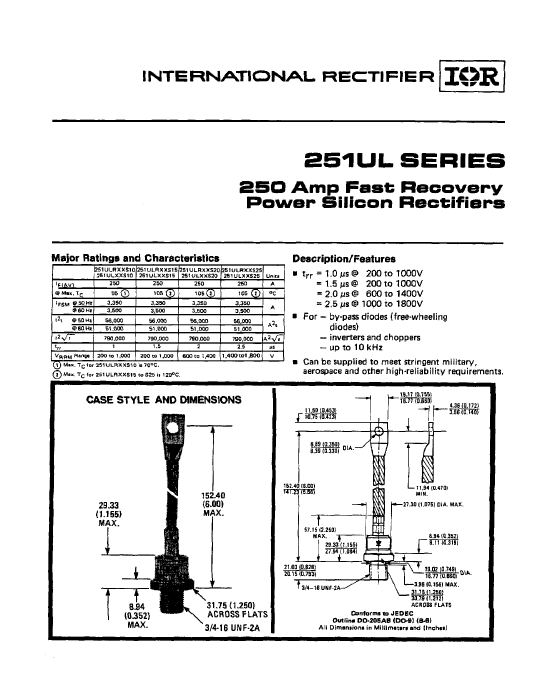

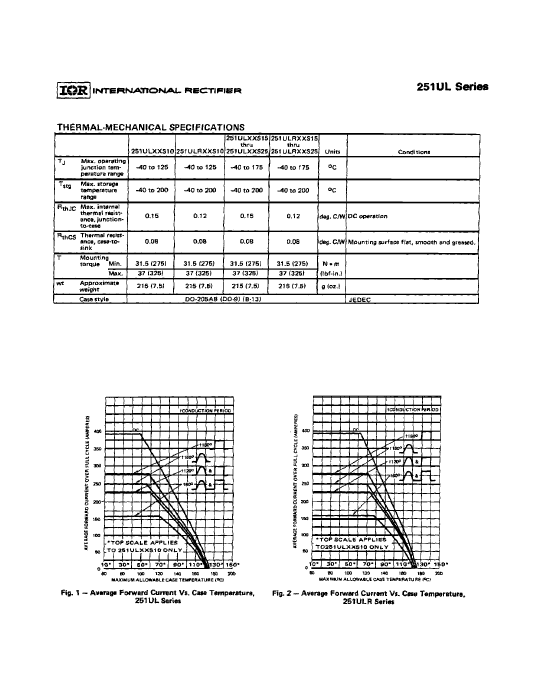

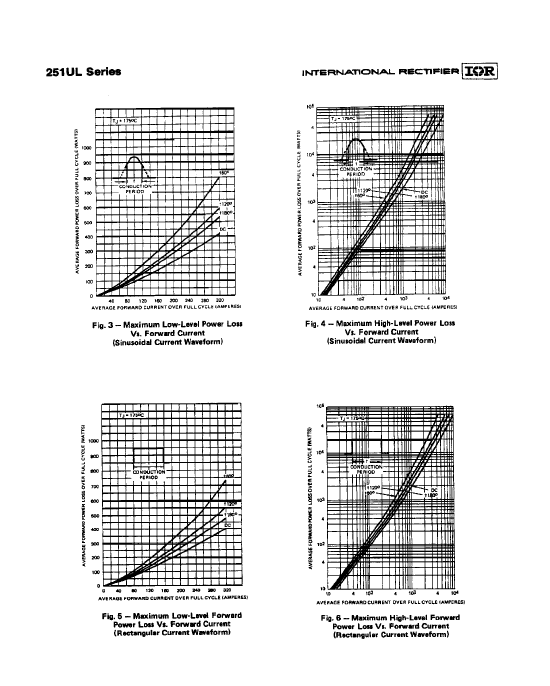

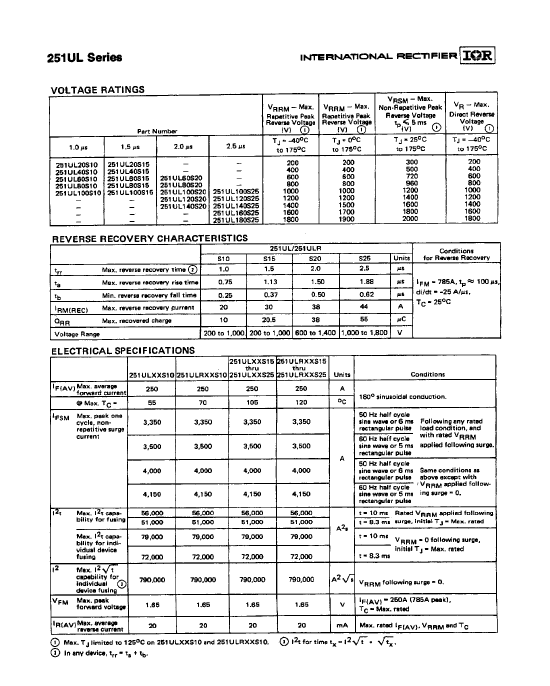

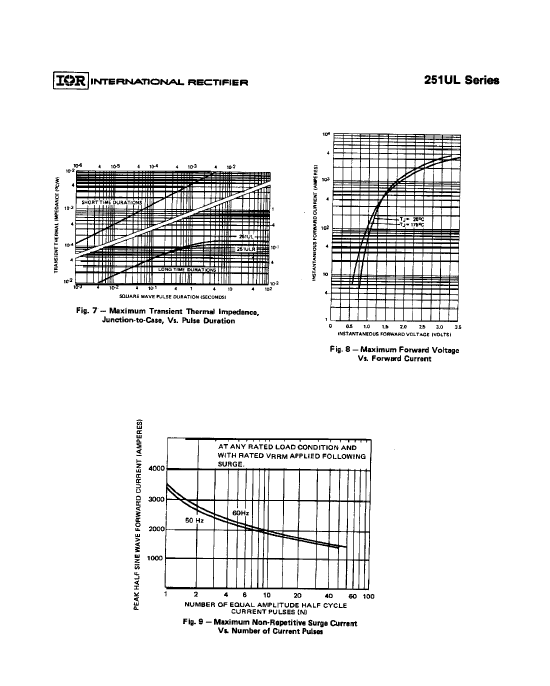

Preview

Download Datasheet

View All

251ULR140S20 Related Products

	251ULR140S20	251ULR100S20	251ULR80S20	251UL160S25
Description	Rectifier Diode, 1 Phase, 1 Element, 250A, 1400V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 250A, 1000V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 250A, 800V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN	Rectifier Diode, 1 Phase, 1 Element, 250A, 1600V V(RRM), Silicon, DO-205AB, DO-9, 1 PIN
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Parts packaging code	DO-9	DO-9	DO-9	DO-9
package instruction	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Contacts	1	1	1	1
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY POWER
Shell connection	ANODE	ANODE	ANODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.78 V	1.78 V	1.78 V	1.6 V
JEDEC-95 code	DO-205AB	DO-205AB	DO-205AB	DO-205AB
JESD-30 code	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1	O-MUPM-H1
Maximum non-repetitive peak forward current	3500 A	3500 A	3500 A	3500 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum output current	250 A	250 A	250 A	250 A
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1400 V	1000 V	800 V	1600 V
Maximum reverse recovery time	2 µs	2 µs	2 µs	2.5 µs
surface mount	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1
