3695000060 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3695000060

3695000060: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size174KB，1 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

3695000060 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Locking, Receptacle

3695000060 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.331 inch
subject depth	0.394 inch
body length	2.902 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	369
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Termination type	IDC
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

369

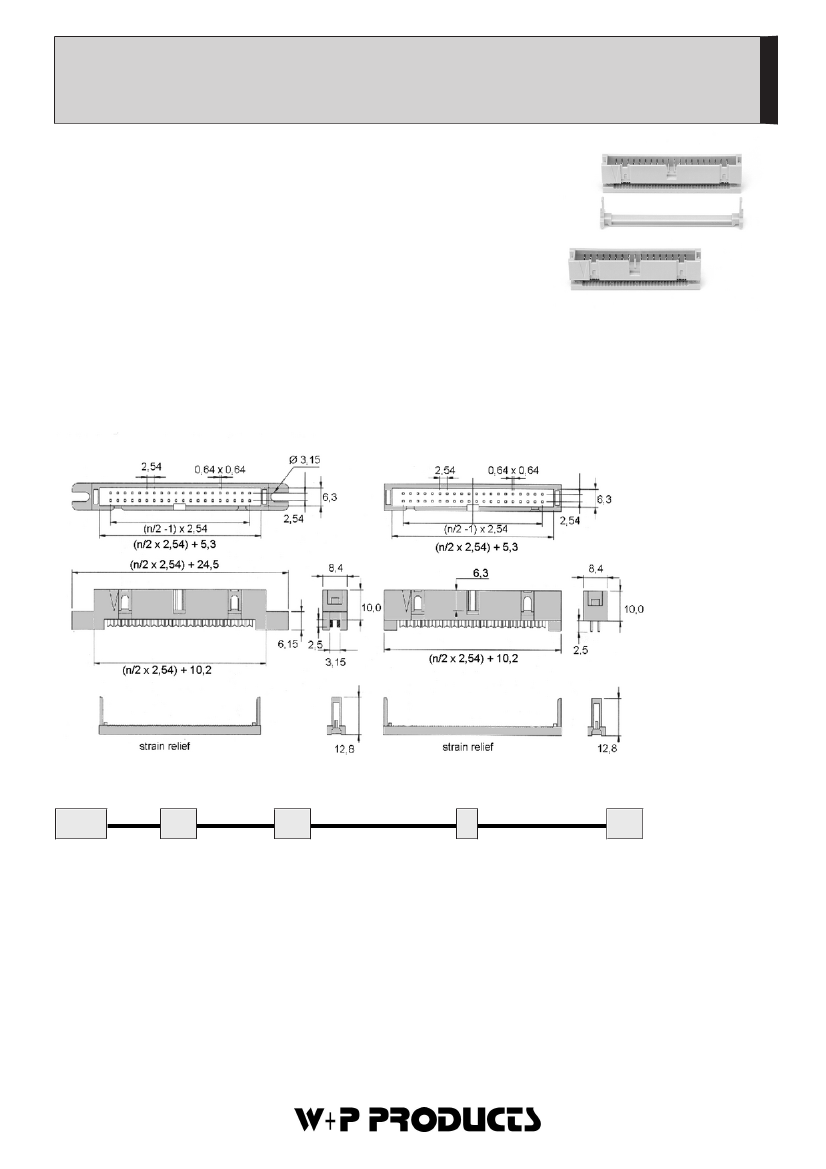

Wannenstecker - RM 2,54mm - Schneidklemm-Version

Low Profile Header - Pitch 2,54mm - IDC-Type

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Vierkantstift 0,635mm, CuZn30

Contact Material

Square pin 0,635mm, CuZn30

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennspannung

250V

Voltage Rating

250V

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +105°C

Temperature Range

-55°C ... +105°C

Passender Gegenstecker Serie:

Mates with Connector Series:

141

Series

Contacts

Strain Relief

Mounting

Plating

369

10/14/16/20/24/26/

30/34/40/50/60/64

Ohne Zugentlastung

W/o strain relief

Mit Zugentlastung

With strain relief

Ohne Flansch

W/o flange

Mit Flansch

With flange

Sel. Au/Sn

Selectively plated

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
