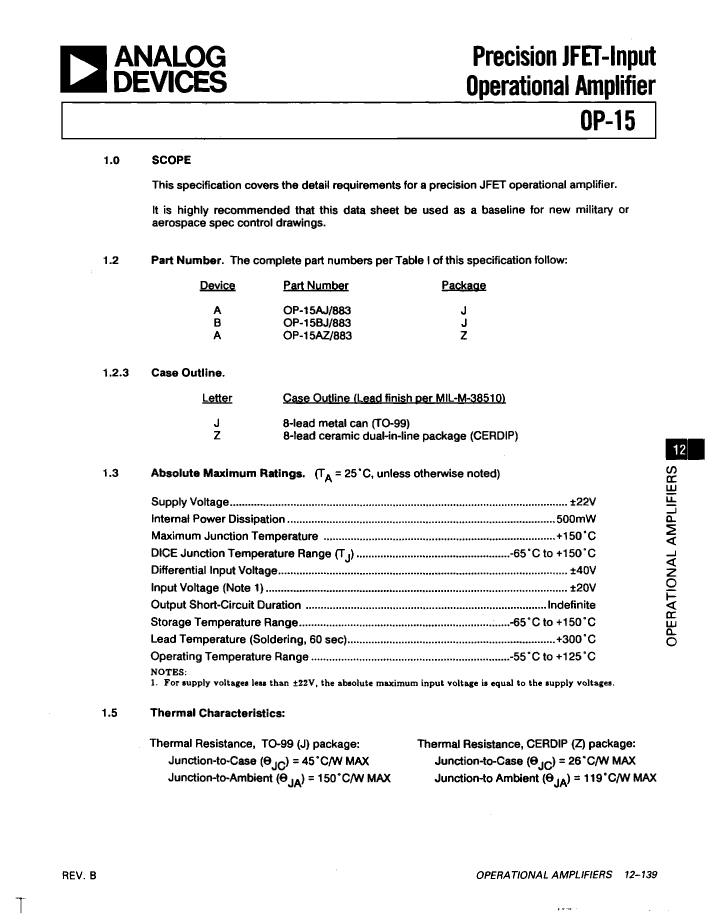

5962-8954201PX amplifier basic information:
5962-8954201PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
5962-8954201PX amplifier core information:
The minimum operating temperature of the 5962-8954201PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.005 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8954201PX gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of 5962-8954201PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8954201PX is 900 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8954201PX is: 7.62 mm .
Related dimensions of 5962-8954201PX:
5962-8954201PX has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-8954201PX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8954201PX is: DIP. The materials used in the 5962-8954201PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-8954201PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
5962-8954201PX amplifier basic information:
5962-8954201PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,
5962-8954201PX amplifier core information:
The minimum operating temperature of the 5962-8954201PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.005 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8954201PX gain becomes 0.707 times the low-frequency gain is 4000 kHz.
The nominal supply voltage of 5962-8954201PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8954201PX is 900 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-8954201PX is: 7.62 mm .
Related dimensions of 5962-8954201PX:
5962-8954201PX has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-8954201PX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8954201PX is: DIP. The materials used in the 5962-8954201PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-8954201PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

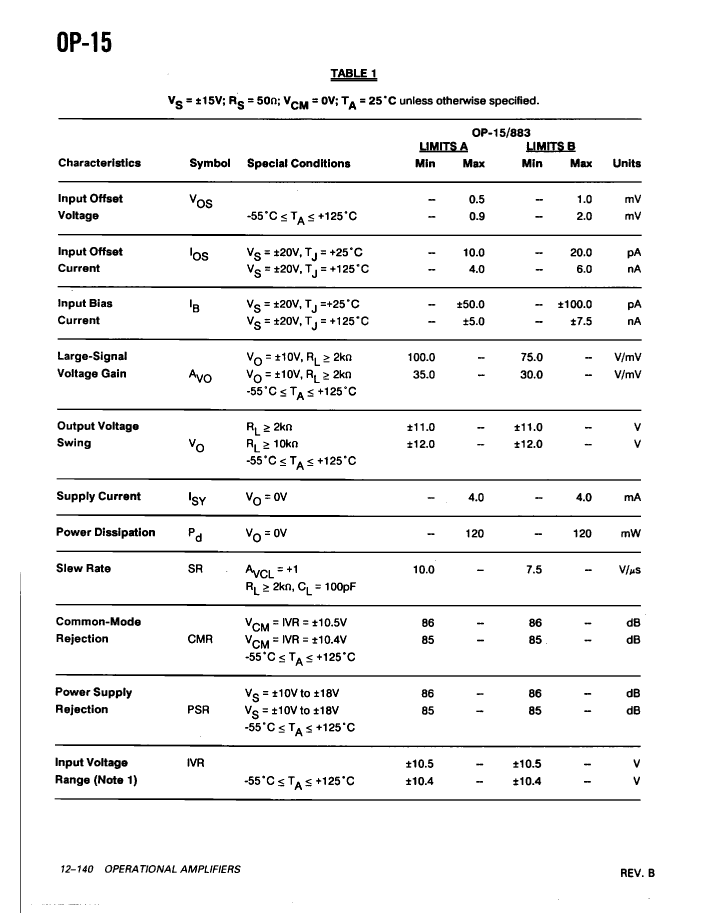

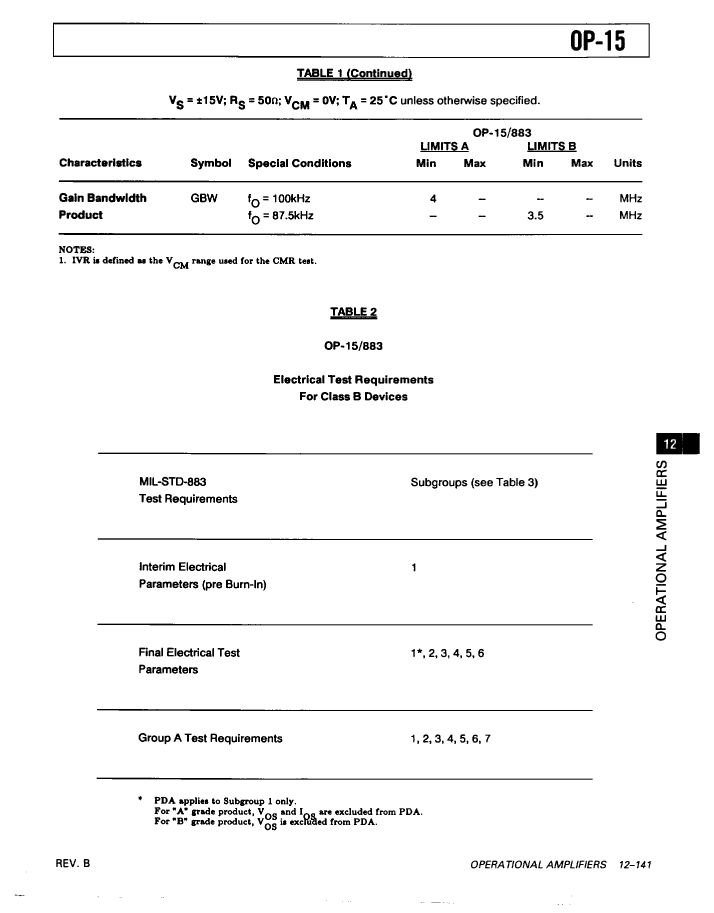

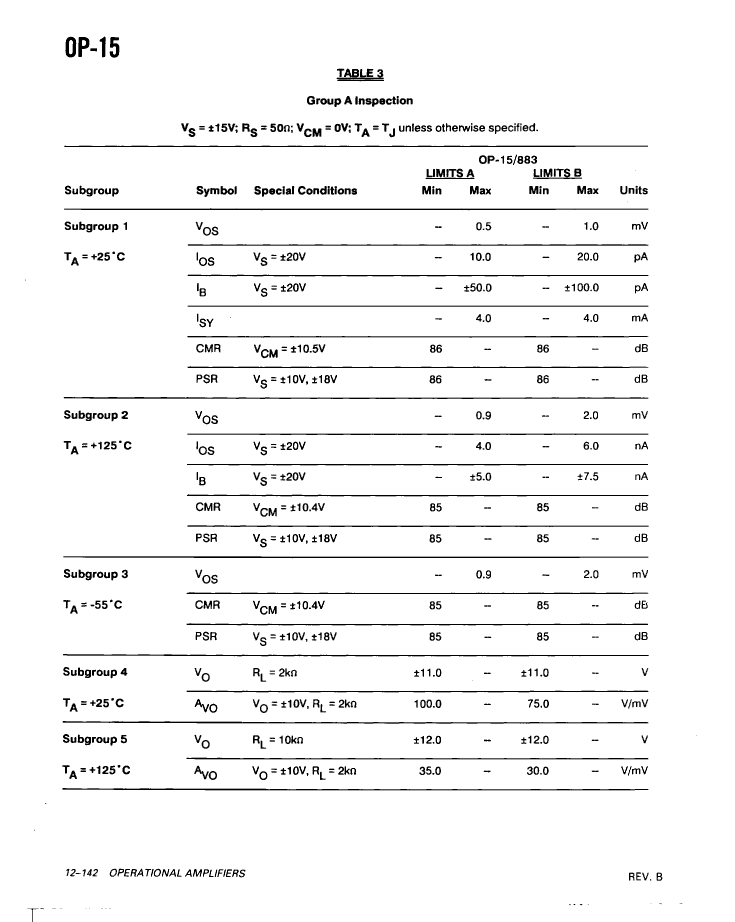

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.005 µA |
| Nominal Common Mode Rejection Ratio | 85 dB |
| Maximum input offset voltage | 900 µV |
| JESD-30 code | R-GDIP-T8 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 4000 kHz |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-8954201PX | 5962-8954201GA | 5962-8954201PA | 5962-8954201GX | |
|---|---|---|---|---|
| Description | IC OP-AMP, 900 uV OFFSET-MAX, 4 MHz BAND WIDTH, CDIP8, HERMETIC SEALED, CERDIP-8, Operational Amplifier | IC OP-AMP, 900 uV OFFSET-MAX, 4 MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN, Operational Amplifier | IC OP-AMP, 900 uV OFFSET-MAX, 4 MHz BAND WIDTH, CDIP8, HERMETIC SEALED, CERDIP-8, Operational Amplifier | IC OP-AMP, 900 uV OFFSET-MAX, 4 MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN, Operational Amplifier |
| Parts packaging code | DIP | TO-99 | DIP | BCY |
| package instruction | DIP, | TO-99, CAN8,.2 | HERMETIC SEALED, CERDIP-8 | TO-99, |
| Contacts | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | not_compliant | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.005 µA | 0.005 µA | 0.005 µA | 0.005 µA |
| Nominal Common Mode Rejection Ratio | 85 dB | 85 dB | 85 dB | 85 dB |
| Maximum input offset voltage | 900 µV | 900 µV | 900 µV | 900 µV |
| JESD-30 code | R-GDIP-T8 | O-MBCY-W8 | R-GDIP-T8 | O-MBCY-W8 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | METAL | CERAMIC, GLASS-SEALED | METAL |
| encapsulated code | DIP | TO-99 | DIP | TO-99 |
| Package shape | RECTANGULAR | ROUND | RECTANGULAR | ROUND |
| Package form | IN-LINE | CYLINDRICAL | IN-LINE | CYLINDRICAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | WIRE | THROUGH-HOLE | WIRE |
| Terminal location | DUAL | BOTTOM | DUAL | BOTTOM |
| Nominal Uniform Gain Bandwidth | 4000 kHz | 4000 kHz | 4000 kHz | 4000 kHz |
| Maker | ADI | ADI | - | ADI |
| Base Number Matches | 1 | 1 | 1 | - |
