3216TD12-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3216TD12-R

3216TD12-R: DescriptionElectric Fuse, Time Delay Blow, 12A, 32VAC, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size769KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric Compare View All

3216TD12-R Overview

Electric Fuse, Time Delay Blow, 12A, 32VAC, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT

3216TD12-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME DELAY
body width	1.6 mm
body height	1 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	3216TD
Installation features	SURFACE MOUNT
physical size	3.2mm x 1.6mm x 1mm
Rated breaking capacity	35 A
Rated current	12 A
Rated voltage (AC)	32 V
Rated voltage (DC)	32 V
surface mount	YES
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

3216TD Series

Time Delay Chip Fuse

Provides Superior

Protection Against

Inrush Currents

Offering the Highest I

T Rating

in its Class, the 3216TD Series

is Available up to 12 Amps

1. Superior Inrush Withstand Performance

The 3216TD provides top notch protection against nuisance

openings. This fuse is perfect for applications in which

inrush currents are a consideration.

2. Extensive Offering

The 3216TD is available up to 12A, making it one of the

highest amperage time-delay offerings in a 1206 package.

For fast-acting performance, the 3216FF is also available up

to 20A.

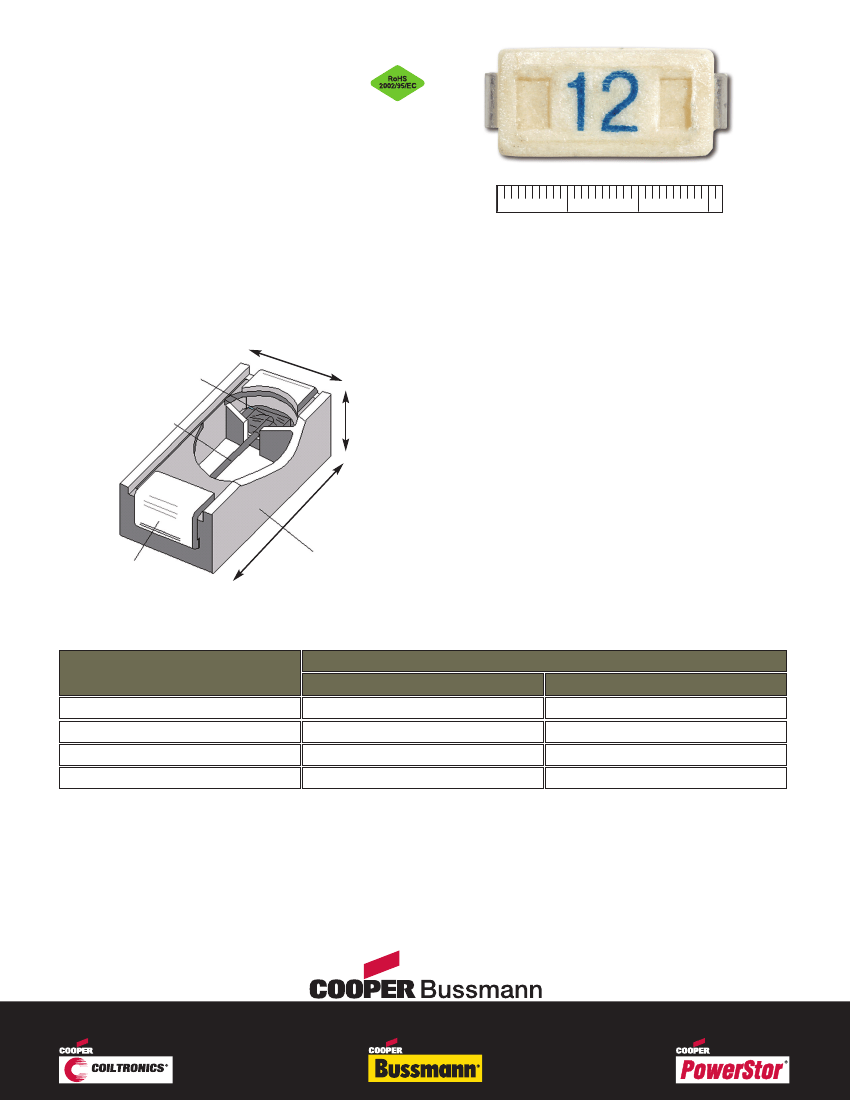

3. Wire-In-Air Construction

The true wire-in-air design makes the 3216TD a high quality

time-delay fuse with class leading performance.

4. Low Resistance

Benefits of the low resistance 3216TD include reduced

power consumption and improved efficiency.

5. Space Savings

The compact SMD Chip

Fuse offers a significant space

savings over other SMD devices with similar performance.

erb

n.c

3216TD12-R Related Products

	3216TD12-R	3216TD1-R
Description	Electric Fuse, Time Delay Blow, 12A, 32VAC, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Time Delay Blow, 1A, 32VAC, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
Fusing characteristics	TIME DELAY	TIME DELAY
body width	1.6 mm	1.6 mm
body height	1 mm	1 mm
Body length or diameter	3.2 mm	3.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	3216TD	3216TD
Installation features	SURFACE MOUNT	SURFACE MOUNT
physical size	3.2mm x 1.6mm x 1mm	3.2mm x 1.6mm x 1mm
Rated breaking capacity	35 A	35 A
Rated current	12 A	1 A
Rated voltage (AC)	32 V	32 V
Rated voltage (DC)	32 V	32 V
surface mount	YES	YES
Terminal shape	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1
